GETTING STARTED

2.1 Scope of delivery

•
iQ-Near Focus
•
3 m connector cable (male 6.35 mm TRS connector to male 3,5 mm TRS connector)
•
Hex keys for frame assembly

2.2 Commissioning

The iQ-Near Focus comes almost ready to use. Only the feet of the frame need to be mounted
before using the device using the included hex keys.
Step 1:
Guide the slot nuts into the corresponding groove on each foot profile (Figure 1). Slide on, until
hole in foot profile aligns with screw head between the four slot nuts (Figure 2). Tighten screw
down.
Image Engineering

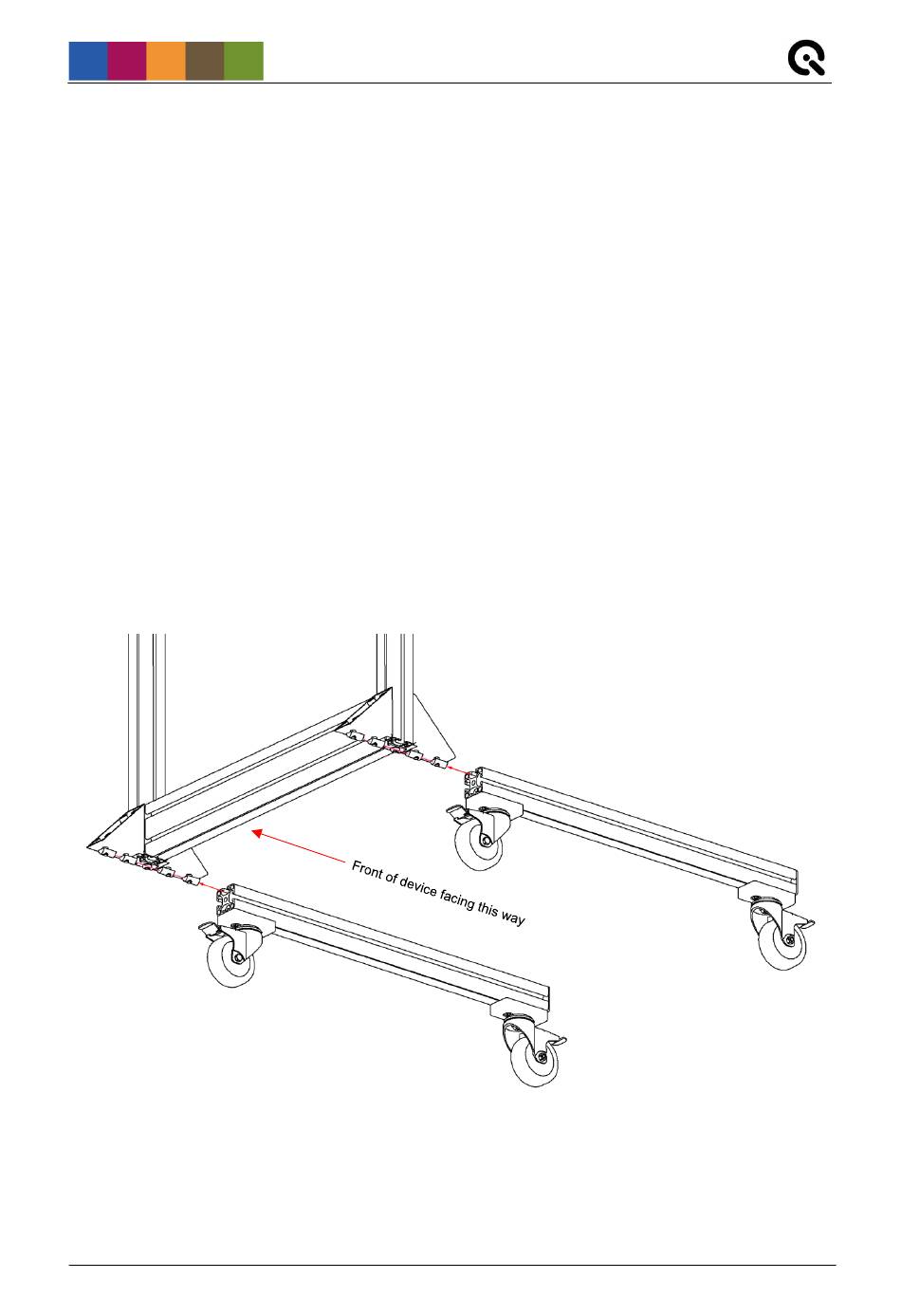

Figure 2: Frame assembly
iQ-Near Focus
