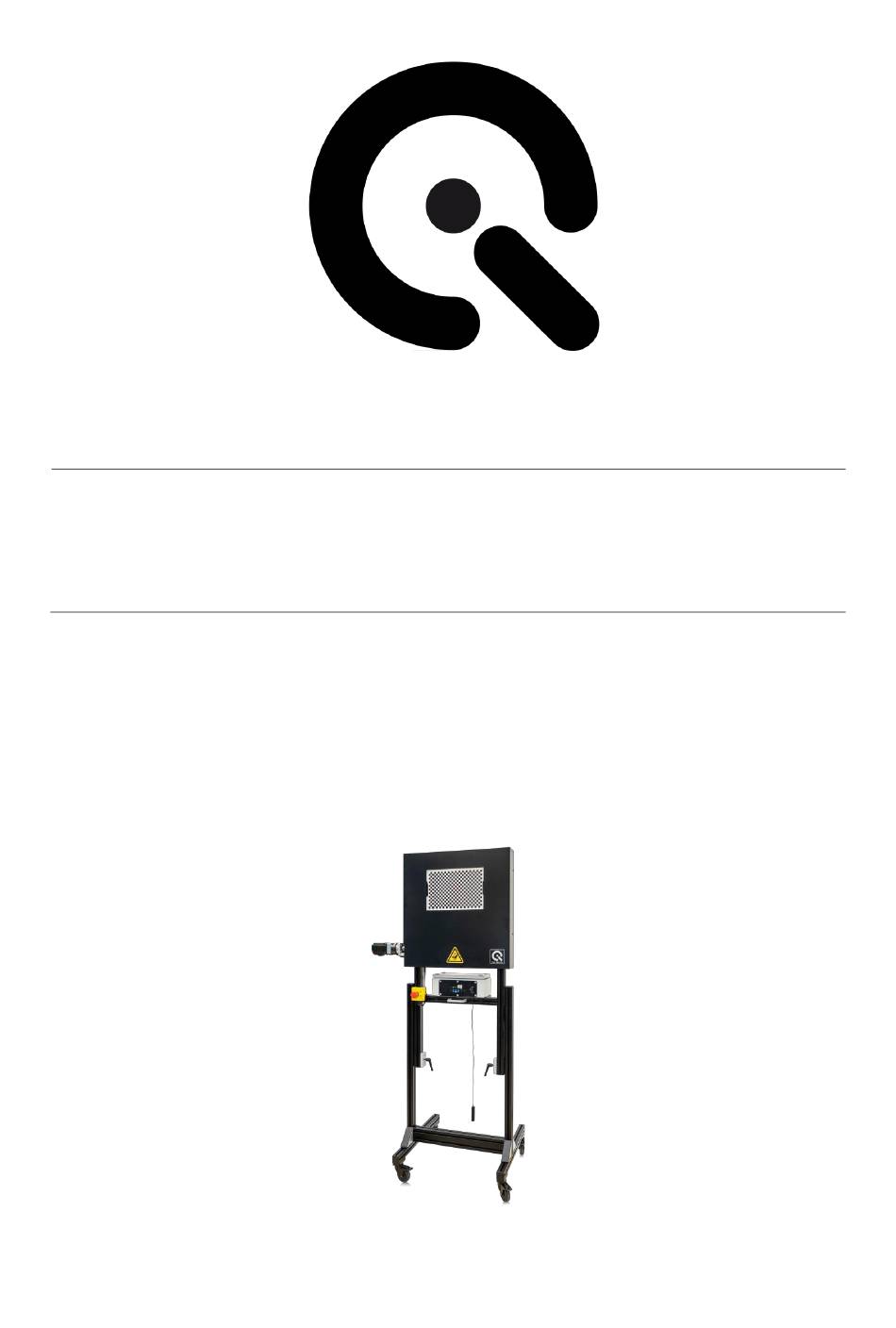

- Page 1 Focus User Manual September 8, 2021 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen · Germany T +49 2273 99991 - 0 · F +49 2273 99991 -10 · www.image-engineering.com...
-
Page 2: Table Of Contents
OPERATING INSTRUCTIONS HARDWARE ............... 7 3.1 Controls ........................ 8 3.2 Height adjustment of frame ..................9 3.3 Using iQ-Near Focus with other IE measurement devices ........11 3.3.1 LED-Panel V4 (timing measurement) .............. 11 3.4 Care instructions ....................11 ADDITIONAL INFORMATION ..................12 4.1 Storage and transport ...................12... -
Page 3: Introduction
RoHS 2 - 2011/65/EU Intended use iQ-Near Focus is used to focus the automatic focusing system of a camera to a defined, short distance with high temporal accuracy. A high contrast, translucent checkerboard chart is used for this purpose. A typical use of iQ-Near Focus is to measure the camera release time in conjunction with the LED- Panel. -
Page 4: Safety Distance
1.3.3 Safety distance Keep to a safe distance of approximately 1 m from the device during operation to ensure user safety. The iQ-Near Focus comes with an extended wire remote control to keep a safe distance. Emergency STOP switch Figure 1: Safety distance during operation Of course, this distance cannot be maintained while using the control unit (located below chart housing) to make adjustments. -
Page 5: Getting Started
• Hex keys for frame assembly Commissioning The iQ-Near Focus comes almost ready to use. The following assembly steps need to be performed before using it: • Step 1: Mount the feet of the frame to the lower frame using the hex keys. - Page 6 Tighten downward-facing screws on both sides to secure the feet and stabilize the frame. The cover caps are placed on the brackets and the open ends of the profiles to complete the assembly (Figure 3). Figure 4: Finalization Image Engineering Seite 6 von 12...
- Page 7 Slide the frame parts towards one another until both sides' gliders are fully seated in the groove. Then place the supplied profile caps on the open ends of the frame. A rubber mallet can be helpful here. Finally, tighten the hand levers to secure the upper frame's position. Image Engineering Seite 7 von 12...
-
Page 8: Operating Instructions Hardware
Solution: Reset the device by pressing the “Reset” button and perform a homing procedure by pressing the “Homing” button. If iQ-Near Focus cannot be reset, disconnect the device from the power source, wait for five seconds, and reconnect it. If you encounter an error that cannot be resolved, please contact the Image Engineering Support Team. -
Page 9: Height Adjustment Of Frame
Green “Referenced” LED: Lights up after successful initialization and homing process after switching on the device. When the green LED is on, iQ-Near Focus is ready for use. “Homing” Button. Manually restart the homing process in case the test chart has been moved by hand or you are unsure if the initial homing after startup is still valid. - Page 10 Lift or lower the frame to the desired height Tighten the handles down again firmly to prevent the frame from dropping on its own. WARNING: Risk of pinching! Figure 6: Height adjustment of iQ-Near Focus Image Engineering Seite 10 von 12...
-
Page 11: Using Iq-Near Focus With Other Ie Measurement Devices
3.3.1 LED-Panel (timing measurement) Figure 1 Connection scheme iQ-Near Focus and LED-Panel Place iQ-Near Focus in front of the device under test and connect the TRS connector (6.35 mm “jack plug”) to the corresponding port labeled “Defocus” on the LED-Panel. -
Page 12: Additional Information
4 ADDITIONAL INFORMATION Storage and transport Ensure that the iQ-Near Focus is fixed and the device is adequately wrapped for transport to avoid damage to the shutter blade. Unplug all cables/devices from iQ-Near Focus before storage/transport. Disposal instructions After the service life of iQ-Near Focus, it must be disposed of properly. Electrical and electromechanical components are included in iQ-Near Focus.
