USER MANUAL

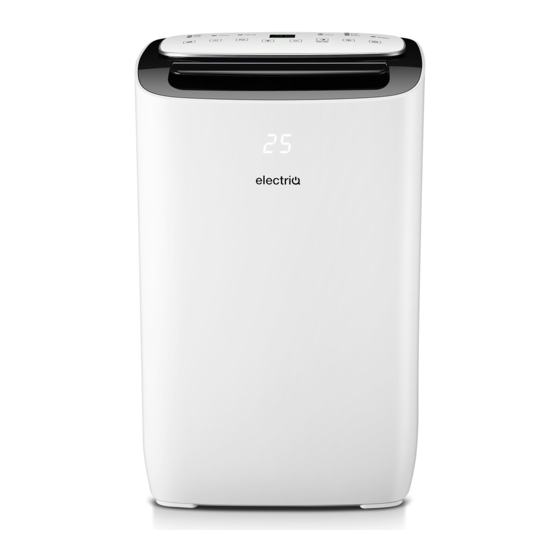

electriQ 10,000 BTU PORTABLE AIR CONDITIONER
WITH HEAT PUMP AND WIFI
ECOSILENT10HPW
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ ECOSILENT10HPW
Summary of Contents for ElectrIQ ECOSILENT10HPW
- Page 1 WITH HEAT PUMP AND WIFI ECOSILENT10HPW Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 3: Table Of Contents
CONTENTS SAFETY FEATURES AND PARTS LIST INSTALLATION OPERATION REMOTE CONTROL EMPTYING THE INTERNAL WATER TANK WIFI APP CONTROL SETTING UP THE APP CONNECTING THE AIR CONDITIONER CONTROLLING YOUR DEVICE SMART SCENES CLEANING AND MAINTENANCE TROUBLESHOOTING ERROR CODES SUPPORT TECHNICAL SPECIFICATION... -
Page 4: Safety
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. •... - Page 5 • R290 refrigerant gas complies with European environmental directives. • R290 has a low GWP (Global Warming Potential) of 3. • The air conditioner contains about 200g of R290 refrigerant gas. • Do not use or store in an unventilated space with an area smaller than 9.6 m per unit.
-
Page 6: Features And Parts List
FEATURES AND PARTS LIST 4 in 1 Cooling, Heating, Fan and Dehumidifier. • 5 speed DC fan: balancing quiet operation with performance. • SmartCool Logic for Improved Energy Efficiency. • HEPA Filter for Air Purification • 24 Hours Start / Stop Timer •... -
Page 7: Installation
INSTALLATION WARNING: Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. 1. - Page 8 INSTALLATION OF WINDOW KIT The window kit (slide bar and fishtail) can be used with sliding windows and doors. For other types of window, the fishtail should be used on its own. 3. Push the screw thread of the plate through the hole in the rear of the front slide bar section.
- Page 9 INSTALLING THE HEPA FILTER (OPTIONAL) The air conditioner can accommodate a HEPA filter which will purify the air expelled back into the room in any operating mode. These can be purchased from the stockist using the code: FIL-ECOSILENTHEPA. The HEPA filter should be unwrapped and installed in the upper air inlet. To install, remove the upper filter frame from the air conditioner by pressing the two clips on the top of the filter frame.
-
Page 10: Operation
OPERATION Press the POWER button to turn the unit ON or OFF. Press the MODE button to cycle between the 5 modes, the indicator for the selected mode will be illuminated. COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is expelled through the vent pipe. -
Page 11: Remote Control
The timer functions cannot be combined or repeated. POWER ON TIMER With the appliance in standby, press the TIMER button to set the power-on timer. Use the + and - buttons to adjust the duration of the timer (1 to 24 hours). The Timer indicator will turn on and the unit will start after the selected number of hours. -
Page 12: Emptying The Internal Water Tank
MULTI PROTECTIVE FUNCTIONS FROST PROTECTION In COOL, DRY or AUTO modes, if the temperature of the exhaust is too low, the machine will automatically stop operating until the temperature has risen. OVERFLOW PROTECTION When the water in the internal water tank exceeds the warning level, the machine will stop operating and sound an alarm with the LCD display showing “E4”. -
Page 13: Wifi App Control
WIFI SMART CONTROL BEFORE YOU START • Ensure your router provides a standard 2.4ghz connection. • If your router is dual band ensure that both networks have different network names (SSID). The provider of your router / Internet service provider will be able to provide advice specific to your router. •... - Page 14 REGISTER THE APP 1. Press on the register button 2. Read the Privacy policy and 3. Enter your email address or phone number and press at the bottom of the screen. press the Agree Button. continue to register. 4. A verification code will be 5.
- Page 15 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses. As such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices.
-
Page 16: Connecting The Air Conditioner
CONNECTING USING QUICK CONNECTION (EZ Mode) Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WIFI network. - Page 17 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing once per second. If not follow the instructions for changing the WIFI connection mode. Also ensure your phone is connected to the WIFI network.
-
Page 18: Controlling Your Device
CONTROLLING YOUR DEVICE THROUGH THE APP Add Device: Add a device THE HOME SCREEN to the app, and go through the setup process. Voice Control: Use to give verbal instructions to the Your Device: Press app. to enter the device screen. - Page 19 DEVICE SCREEN The device screen is the main control screen for the air conditioner, providing access to the controls to amend the functions and settings Edit Name: Use to change the name of Back: Returns to the the air conditioner. Home Screen Current Room Temperature: Displays the...
- Page 20 CREATING ROOMS The app is designed so that it can work with a wide variety of compatible smart devices within your home. It can also be set up to work with multiple devices in different locations. As such during the setup process the app requires that different areas are created to allow easy management of all your devices.
-
Page 21: Smart Scenes
SMART SCENES Smart Scenes is a powerful tool providing the option to customise the operation of the air conditioner based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one touch button to be added to the Home screen. - Page 22 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, indoor temperature, humidity of the room, weather conditions, and a range of other influences. 1. Press on the Smart Scene 2.
- Page 23 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. CHANGING THE NAME OF YOUR DEVICE When in any of the device screens further settings for the device can be accessed, by pressing on the three dots in the top right hand corner.
-
Page 24: Cleaning And Maintenance
MAINTENANCE AND CLEANING PLEASE TURN OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE CLEAN THE SURFACE Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc; otherwise, as this may cause damage to the surface and or the internal workings of the machine AIR FILTER CLEANING If the filter screen is clogged with dust, the effectiveness of the air conditioner is reduced. -
Page 25: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. Problems Reasons Solutions... -
Page 26: Support
Lowfields Way, Elland West Yorkshire, HX5 9DA DECLARATION OF CONFORMITY Hereby, electriQ declares that this Portable air conditioner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity... -
Page 27: Technical Specification
TECHNICAL DATA Model EcoSilent10HPW Cooling 10,000 BTU Cooling capacity: Heating 10,500 BTU Cooling 1100 W Input power: Heating 1150 W Air flow volume: 350m³/h Refrigerant: R290/200g Sound power level: ≤56dB(A) Thermostat: 17-30 Maximum working pressure of 1.0/3.5MPa suction/exhaust side: Maximum Allowable Pressure 3.5Mpa...
