USER MANUAL

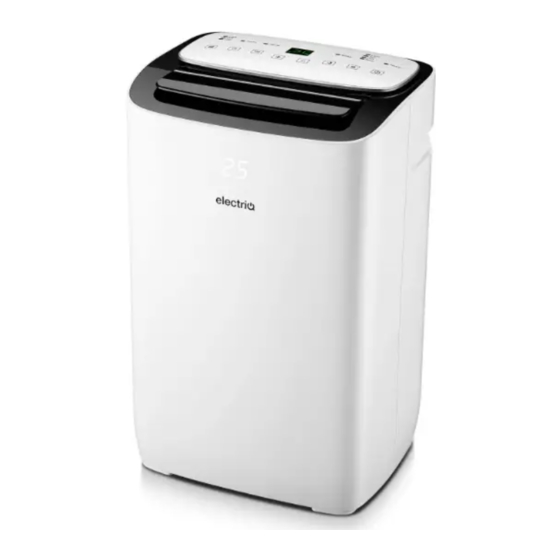

electriQ PORTABLE AIR CONDITIONER
ECOSILENT8-V2
8,000 BTU
ECOSILENT10-V2
10,000 BTU
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ ECOSILENT8-V2
Summary of Contents for ElectrIQ ECOSILENT8-V2
- Page 1 ECOSILENT8-V2 8,000 BTU ECOSILENT10-V2 10,000 BTU Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 3: Table Of Contents
CONTENTS SAFETY FEATURES AND PARTS LIST INSTALLATION OPERATION REMOTE CONTROL CLEANING AND MAINTENANCE EMPTYING THE INTERNAL WATER TANK TROUBLESHOOTING ERROR CODES SUPPORT TECHNICAL SPECIFICATION... -
Page 4: Safety
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. - Page 5 • The appliance should not be installed in laundry or wet rooms. • The appliance must be placed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater). • R290 refrigerant gas complies with European environmental directives. •...
-
Page 6: Features And Parts List
FEATURES AND PARTS LIST FEATURES 3 in 1 Cooling, Fan, Dehumidifier great for rooms up to 20 sqm. • 5 speed fan: Balancing quiet operation with performance. • 24 Hours Start / Stop Timer • Digital Thermostat: Set the temperature between 17°C and 30°C. •... -
Page 7: Installation
INSTALLATION WARNING: Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. Attach the fishtail connector to the end of the hose, by extending the end of the hose and twisting until firmly attached to the... - Page 8 INSTALLATION OF WINDOW KIT The window kit (slide bar and fishtail) can be used with sliding windows and doors. For other types of window, the fishtail should be used on its own. 1. Push the screw thread of the plate through the hole in the rear of the front slide bar section.
- Page 9 IMPORTANT SAFEGUARDS The length of the soft hose extends from approximately 30 cm to 180 cm. If hose is extended above this length, the unit may malfunction which can invalidate the warranty. The outlet vent must be well ventilated and not obstructed as this will cause the unit to overheat. Keep the hose as straight and short as possible and avoid bending the air hose by more than 30 degrees in order to maintain the performance of the unit.
-
Page 10: Operation
OPERATION Press the POWER button to turn the unit ON or OFF. Press the MODE button to cycle between the 4 modes, the indicator for the selected mode will be illuminated. COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is expelled through the vent pipe. -
Page 11: Remote Control
REMOTE CONTROL Press to turn the unit on or off. POWER Press to increase the desired temperature. TEMP + Press to decrease the desired temperature. TEMP - Press to change between Cooling, Fan, Dehumidifying and Auto Modes MODE Press to change between the fan speeds. SPEED Press the sleep button to enter sleep mode. -
Page 12: Cleaning And Maintenance
MAINTENANCE AND CLEANING PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE CLEAN THE SURFACE Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc;... -
Page 13: Emptying The Internal Water Tank
EMPTYING THE INTERNAL WATER TANK MANUAL DRAINAGE: When the internal water tank is full the unit will stop working, and the unit will display E4. Turn off the unit and unplug. Try not to move the model abruptly as this may cause the water in the internal tank to spill out. -
Page 14: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. Problems Reasons Solutions... -
Page 15: Support
Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call the number below, or complete the online form. - Page 16 TECHNICAL DATA Model EcoSilent8-V2 EcoSilent10-V2 Capacity Cooling 2350 W 2930W 880 W Rated Input 1100W Running Current 3.4 A 4.8 A 5 Speeds Airflow 320m EER rate Refrigerant R290/180g R290/240g Sound power level 56dB(A) Thermostat 17-30 Maximum working pressure of 1.0/3.5MPa...
