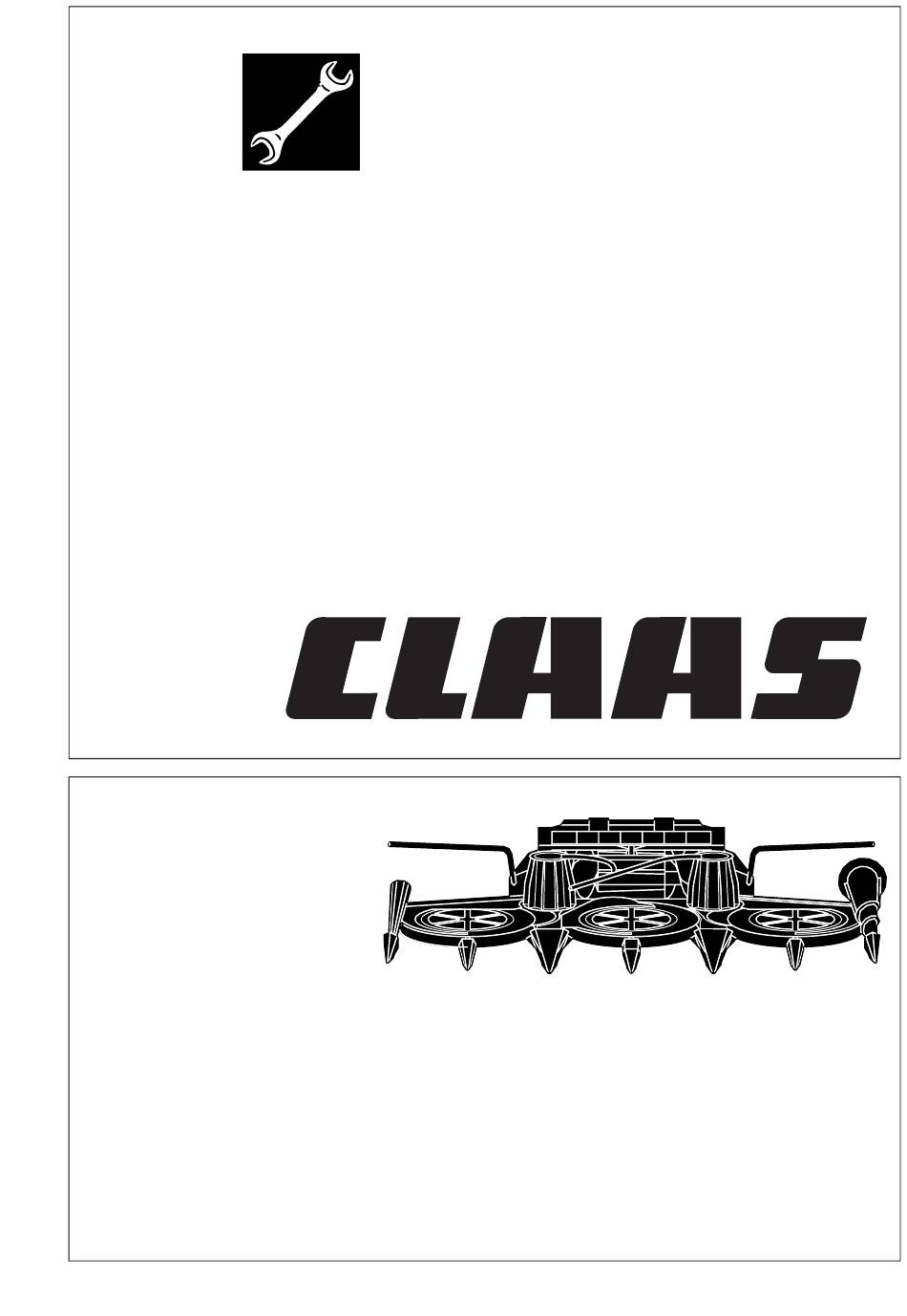

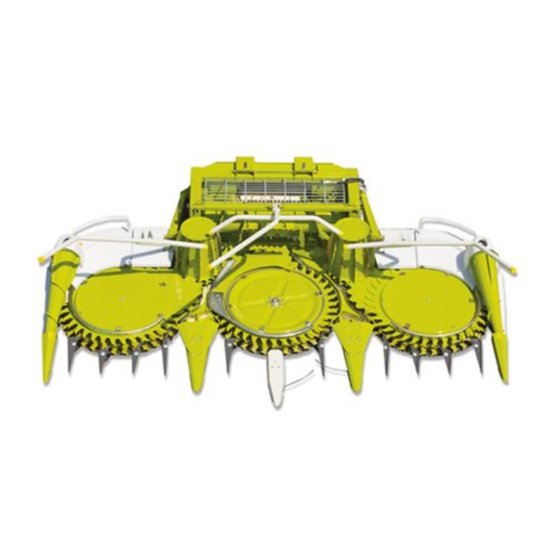

- Page 1 REPAIR HANDBOOK CLAAS RU 450...
- Page 2 Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 3 Removing the intake taper ..........4.4 / 2 Introduction ................1.1 / 1 Replacing the overload clutch ........4.4 / 3 Introduction to the CLAAS Repair Manual ......1.2 / 1 Removing/putting on the outside chamber bottom..4.4 / 3 Especially important ............. 1.2 / 1 Installing the intake taper ..........
- Page 4 Taking apart the angular transmission ......7.10 / 1 8. Universal drive shaft / Clutches Universal drive shaft / Clutches ........... 8.1 / 1 Taking apart/Putting back together the tapered clutch .. 8.1 / 1 I / 2 RU 450 - 297 925.0 Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 5 Group Overview 1 General information 2 Auger trough 3 Machine frame 4 Knife/Feed 5 Hydraulic 6 Special equipment 7 Drives 8 Universal drive shaft / Clutches Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 6 Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 7 General information Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 8 Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 9 General information INTRODUCTION This CLAAS repair manual is to help maintain continuous operation and thus the high value CLAAS corn picker attach- ments through careful maintenance and service-related inspection. The knowledge of our service technicians and factory experi- ence is brought together in this Repair Manual.
- Page 10 General information 1.1 / 2 RU 450 - 297 925.0 Find manuals at http://best-manuals.com/search?&s=CLA-2979250...
- Page 11 Usage of spare parts, accessories, and attachments Steel roller chains have the correct tension when which do not originally come from CLAAS and are not you can push with your thumb in the middle of the tested and allowed by CLAAS could negatively impact roller chain between the axles and approx.
- Page 12 Only use liquid screw fastener where the manu- facturer allows. Loosening: First of all, loosen the unsecured expansion pin Correct use: nut with only a couple of turns (threads must com- 1.2 / 2 RU 450 - 297 925.0...
- Page 13 Lea- well-oiled threaded connectors with a half-turn of kage and slipping out of the threading will result. the union nut past the point of the clearly noticea- 1.2 / 3 297 925.0 - RU 450...
- Page 14 14. The repair will be done quick and right if the EXPLANATION OF THE PICTURE SYMBOLS following is taken into account: Some symbols in this CLAAS Repair Manual have been taken from the ”List of Symbols DIN 30600” Ger- a) Mark the machine parts before disassembly in man Institute for Standardization”.
- Page 15 Unlocking, locking Overflow Applying liquid agent, Balancing glue or sealing com- Breathing pound Propping Reuse possible supporting but not recommended securing To be replaced during Observe the sense of each assembly installation 1.2 / 5 297 925.0 - RU 450...
- Page 16 General information 1.2 / 6 RU 450 - 297 925.0...
- Page 17 - Take out the ignition key and disengage the drive shaft. Always secure the lifted front attachment with a suitable safety device during assembly, maintenance, and cleaning work. 1.3 / 1 297 925.0 - RU 450...
- Page 18 Check if all split pins and expansion pins are in place. The given times for lubrication are for normal conditions of use. Additional lubrication is required if the machine is ope- rated in difficult situations. 1.3 / 2 RU 450 - 297 925.0...
- Page 19 In front, behind, right, and left are always in the direc- tion of motion. Technical information, measurements, and weights agree with the respective tolerances. RU 450 Working position Width: Length: Transport position Width: Height: Weight 2150 1.4 / 1 297 925.0 - RU 450...
- Page 20 General information Oil filling capacity for the gearbox This data is valid for the corn header RU 450 beginning with the Machine No.: 660 0 1001 Transmission type Oil type Filling capacity Entering gearbox (A) engagable Multi-purpose transmission oil SAE 90 2.5 Liter...
- Page 21 M 27 x 2 1050 1500 1800 M 30 x 2 1450 2050 2500 ATTENTION! Cadmium-plated or copper-plated screws and nuts are to be tightened with torque that is 25% under the stated values. 1.4 / 3 297 925.0 - RU 450...
- Page 22 200+67 Nm M 36 x 2 245+82 Nm M 38 x 2 245+82 Nm M 39 x 2 310+103 Nm M 42 x 2 380+127 Nm M 45 x 2 440+147 Nm 1.4 / 4 RU 450 - 297 925.0...
- Page 23 General information 1.4 / 5 297 925.0 - RU 450...
- Page 24 General information 70000 1.5 / 1 RU 450 - 297 925.0...
- Page 25 3. Cutting disk (opposite direction) 4. Clearing disk 5. Intake taper 6. Feeder auger 7. Auger trough 8. Outside point, right 9. Outside point, left 10. Intermediate points 11. Divider points 12. Drive side feeder auger 1.5 / 2 297 925.0 - RU 450...
- Page 26 General information 1.5 / 3 RU 450 - 297 925.0...
- Page 27 Auger trough...
- Page 29 Disassemble/assemble the crop guard (1) in front on the tube carrier, 2 hexagon head screws M10x85 with contact washer A10 and safety nut. Align as needed. (Fig. 3) 2.1 / 1 297 925.0 - RU 450...
- Page 30 Fasten the new feeder segment (9 ) with 2 hexagon head screws M8x20 and contact washers B8. After this, screw on the guide (8 ) again with the hexagon head screws M10x30 and contact washers A10. (Fig. 6) 2.1 / 2 RU 450 - 297 925.0...
- Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
