Summary of Contents for Claas ROLLANT 66

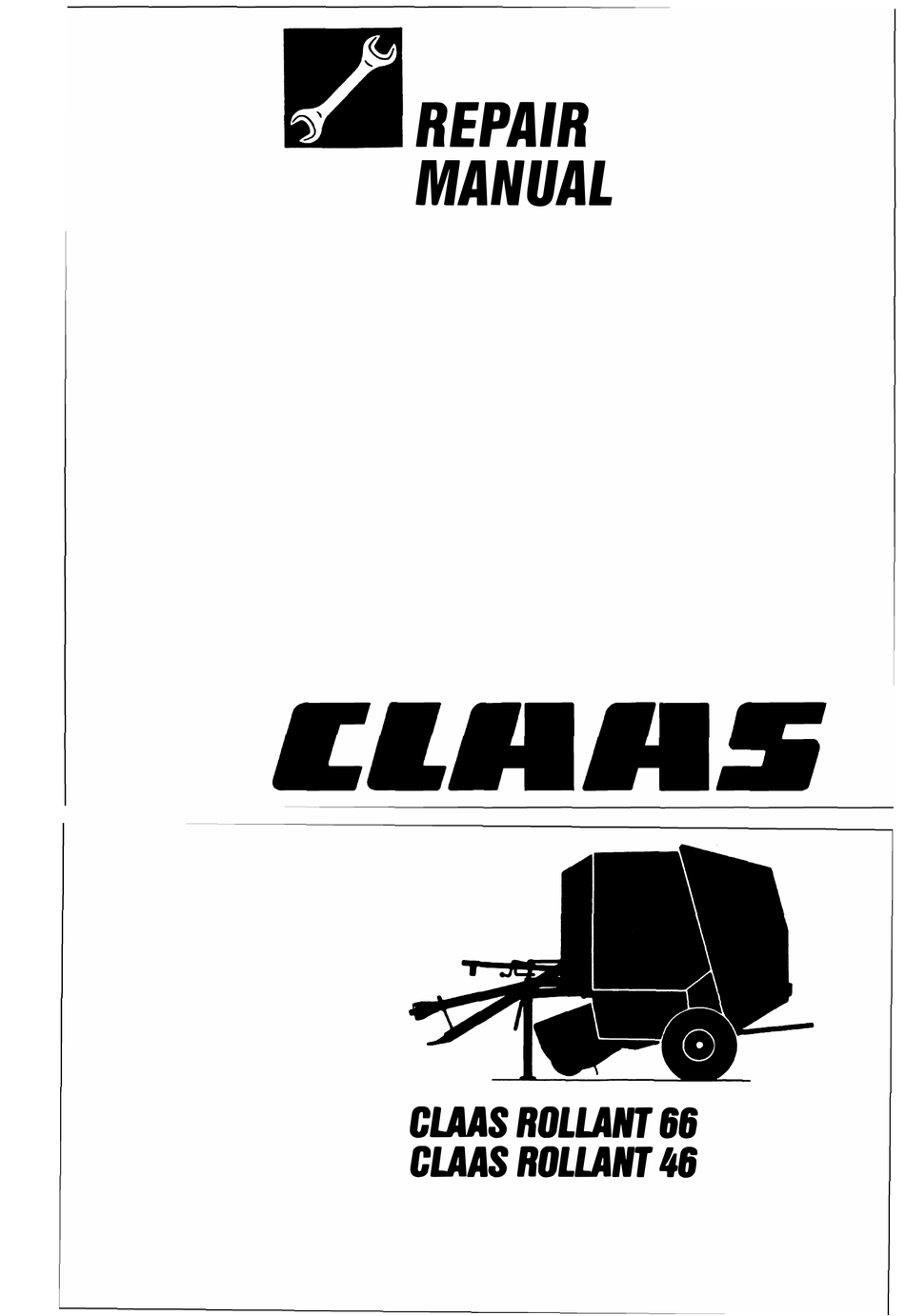

- Page 1 REPAIR MANUAL CWS ROLLANT && CLAJIS ROLLANT 4&...
- Page 2 186 254.0 - ROLLANT 66 / 46 - GB - 12.02 - 25 - BEV Find manuals at http://best-manuals.com/search?&s=CLA-1862550...
- Page 3 CLAAS REPAIR MANUAL. The illustrations show the procedure for the repairs, whilst the text gives the necessary instructions for the different adjustments to be made, the use of CLAAS Special Tools, etc. The major repairs are broken down in such a way that minor repairs and adjustments can be easily picked out and followed.
-
Page 4: Key To Symbols
KEY TO SYMBOLS In this CLAAS REPAIR MANUAL a limited number of symbols from the DIN publication 30600 have been used, which was prepared by the German Standards Institution (DIN). The meaning of the symbols will soon be learned by the user. The symbols help to quickly recognize recurring service procedures and they also help to communicate information shown by the illustrations. - Page 5 2. Always shut off the tractor engine and remove the ignition key before carrying out any repairs on the round baler. 3. Use only genuine CLAAS spare parts and suitable CLAAS special service tools. 4. Always drain the oil before removing the transmission cases. Use a plastic or soft metal hammer to separate tight fitting parts.
- Page 6 8. Correct installation of lock collar bearings The lock collar bearings are tightened by pushing the eccentric locking collar over the extended inner ring of the bearing and rotating the locking collar in the direction of shaft rotation. This clamps the bearing to the shaft. It is advisable to coat the inner ring and the shaft with semi-fluid lubricant NLGI grade 00 (e.g.
- Page 7 GROUP CONTENTS 1 Specifications 2 Basic Components of the Machine 3 Machine Drive Systems 4 Pick-Up and Assister Feed Rake 5 Baler Forming Rollers 6 Net Wrapping System 7 Twine Tying Mechanism 8 Hydraulics Find manuals at http://best-manuals.com/search?&s=CLA-1862550...
- Page 8 saeciticatians Find manuals at http://best-manuals.com/search?&s=CLA-1862550...
-
Page 9: Specifications
SPECIFICATIONS ROLLANT66 Settings and Capacities ROLLANT46 Settings and Capacities Find manuals at http://best-manuals.com/search?&s=CLA-1862550... - Page 10 ROL L.ANT 66/46 SPECIFICATIONS- ROLLANT 66 PTO speed 540 rpm Universal drive shaft wide angle joint- tractor side over-run clutch - machine side Drawbar height adjustable Tightening torque for mounting bolts: M 20 370 Nm (273 ft-lb) M 24 640 Nm (472 ft-lb) Tyres 11 .5/80-1 5.3 6 PR 1 5.0/55-1710 PR...
- Page 11 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
