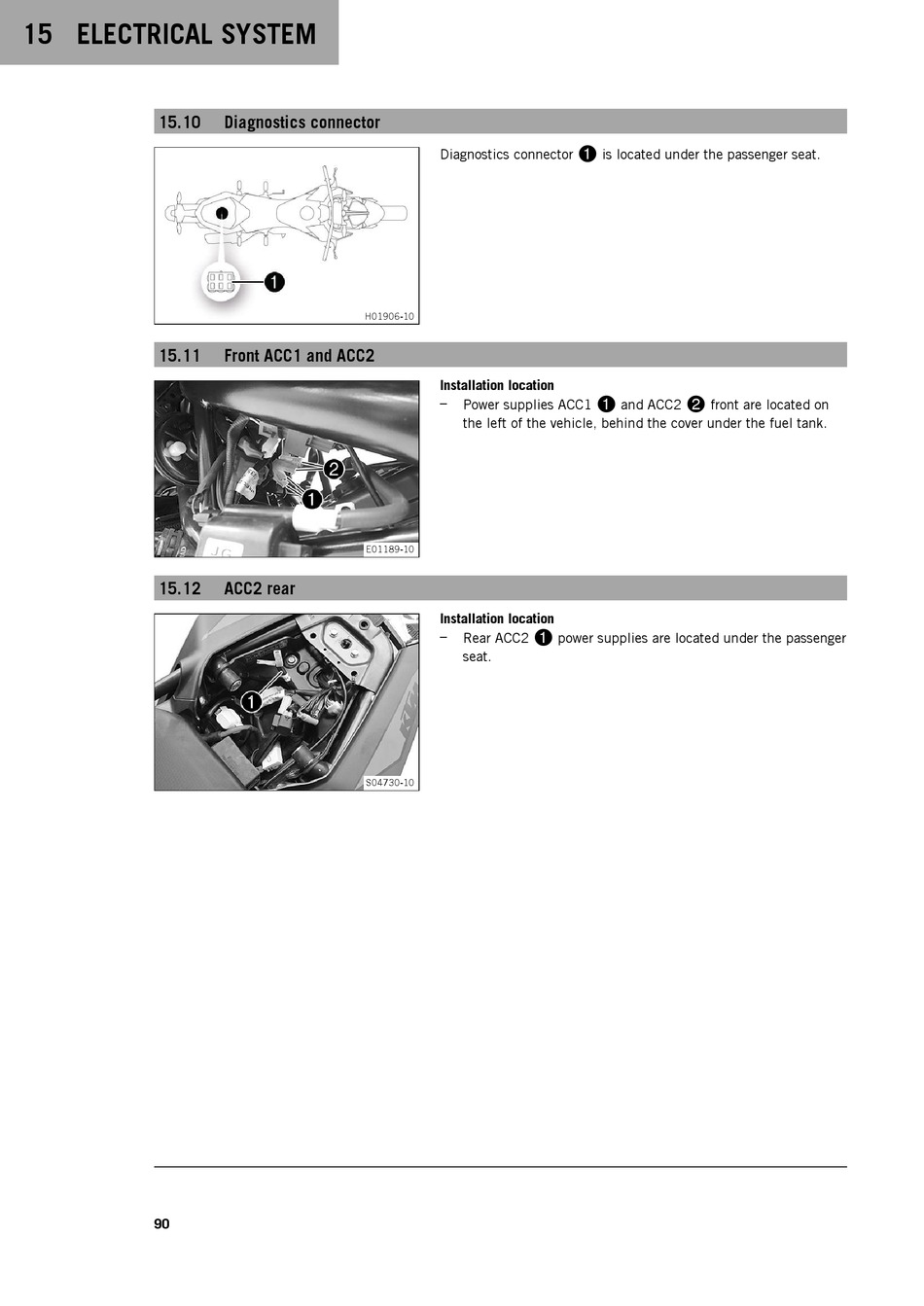

15 ELECTRICAL SYSTEM
15.10
15.11
15.12
90
Diagnostics connector
H01906-10
Front ACC1 and ACC2
E01189-10
ACC2 rear
S04730-10
1
Diagnostics connector
is located under the passenger seat.
Installation location
–
1
Power supplies ACC1
the left of the vehicle, behind the cover under the fuel tank.
Installation location
–
1
Rear ACC2
power supplies are located under the passenger
seat.
2
and ACC2
front are located on
