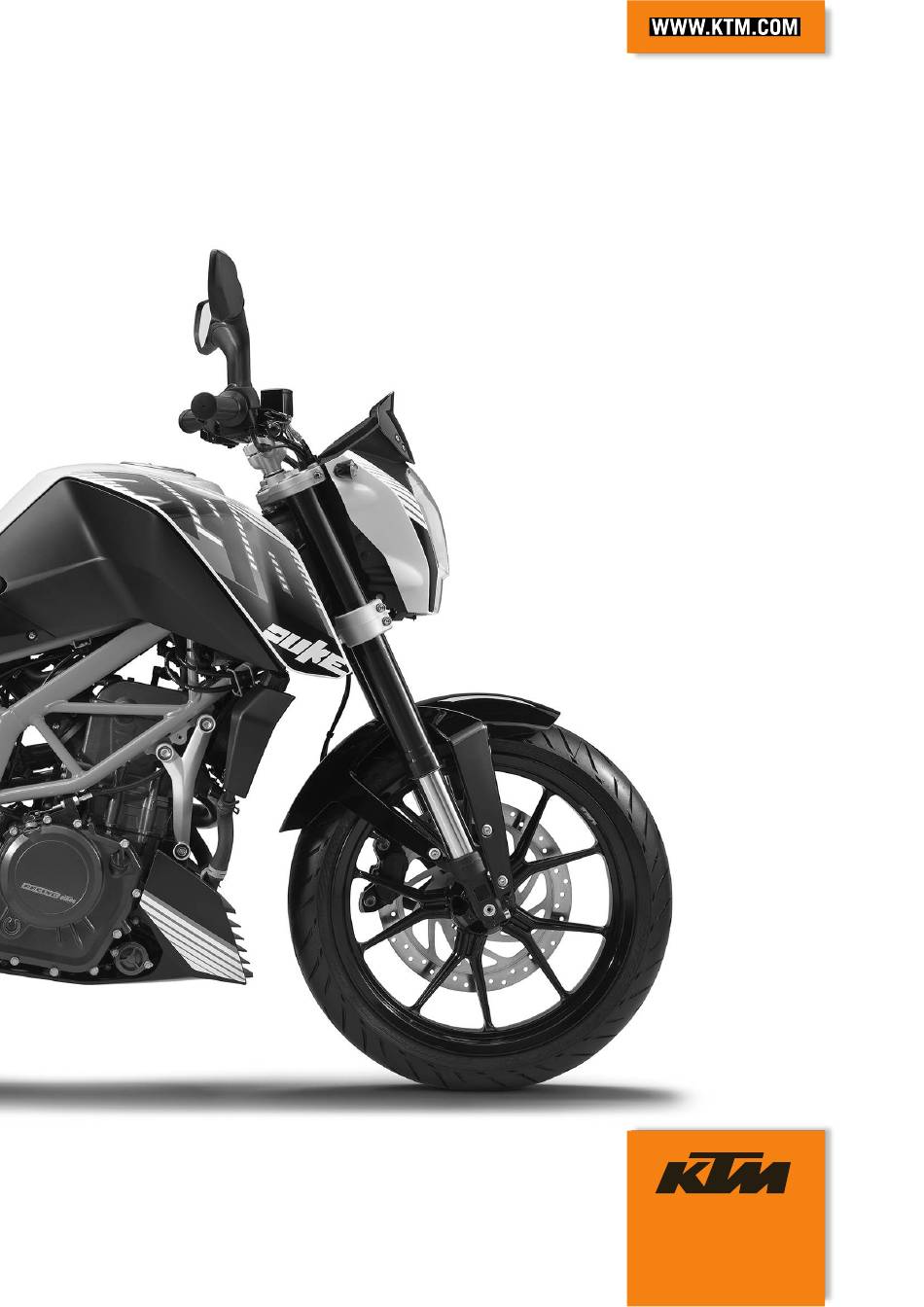

- Page 1 SETUP INSTRUCTIONS 2014 390 Duke EU 390 Duke AU 390 Duke JP 390 Duke US 390 Duke AR 390 Duke ASIA 390 Duke CN 390 Duke 2015 CO 390 Duke MY Art. no. 3213165en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SETUP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Check the vehicle for transport damage. –...
- Page 6 SETUP – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( p. 9) – Set the clock. ( p. 9)
-
Page 7: Remove Screws
WORK Removing the passenger seat – Insert the ignition key in seat lock and turn it clockwise. – Raise the rear of the seat, push it towards the rear, and remove it upwards. – Remove the ignition key from the seat lock. 101881-10 Mounting the passenger seat –... -
Page 8: Recharging The Battery
Environmental hazard The battery contains elements that are harmful to the environment. – Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. -
Page 9: Installing The Battery
WORK Info Even when there is no load on the battery, it still loses power steadily. The charge state and the type of charge are very important for the service life of the battery. Rapid recharging with a high charging current shortens the battery's service life. If the charging current, charging voltage, and charging time are exceeded, electrolyte escapes through the safety valves. - Page 10 WORK – Connect the negative cable of the battery. – Position the negative terminal cover 101903-11 Finishing work – Mount the seat. ( p. 5) – Mount the passenger seat. ( p. 5) – Set the clock. ( p.
- Page 11 WORK 3.10 Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
- Page 12 WORK – Press the MODE button briefly and repeatedly until ODO appears on the display. – Press the MODE button for 5 - 10 seconds. The display changes from km/h to mph or from mph to km/h. 401303-01...
-
Page 13: Technical Data - Tightening Torques For Chassis
TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – EJOT PT ® Screw, chain guard 4 Nm (3 lbf ft) – Screw, headlight EJOT PT ® 4 Nm (3 lbf ft) – Remaining screws, chassis 4 Nm (3 lbf ft) – Screw, EFI control unit 4 Nm (3 lbf ft) –... - Page 14 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Screw, engine bearer on frame 30 Nm (22.1 lbf ft) Screw, foot brake lever 15 Nm (11.1 lbf ft) Loctite ® 243™ – Screw, fork stub 15 Nm (11.1 lbf ft) Screw, front brake disc 30 Nm (22.1 lbf ft) Loctite ®...
- Page 15 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 16 *3213165en* 3213165en 02/2014 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
