Simpli Home WyndenHall Brooklyn + Max AXCRED15-BL Assembly Instructions Manual

Simpli Home WyndenHall Brooklyn + Max AXCRED15-BL Assembly Instructions Manual

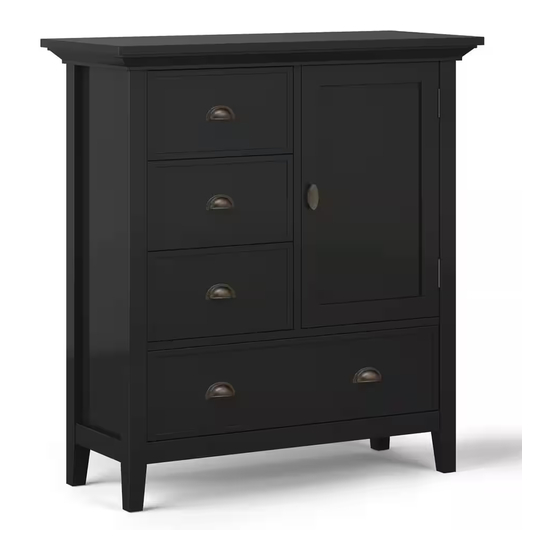

Redmond / mansfield / stanwick medium storage cabinet

Advertisement

Quick Links

Redmond / Mansfield / Stanwick
Medium Storage Cabinet
Model # AXCRED15-BL
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max AXCRED15-BL and is the answer not in the manual?

Questions and answers

Summary of Contents for Simpli Home WyndenHall Brooklyn + Max AXCRED15-BL

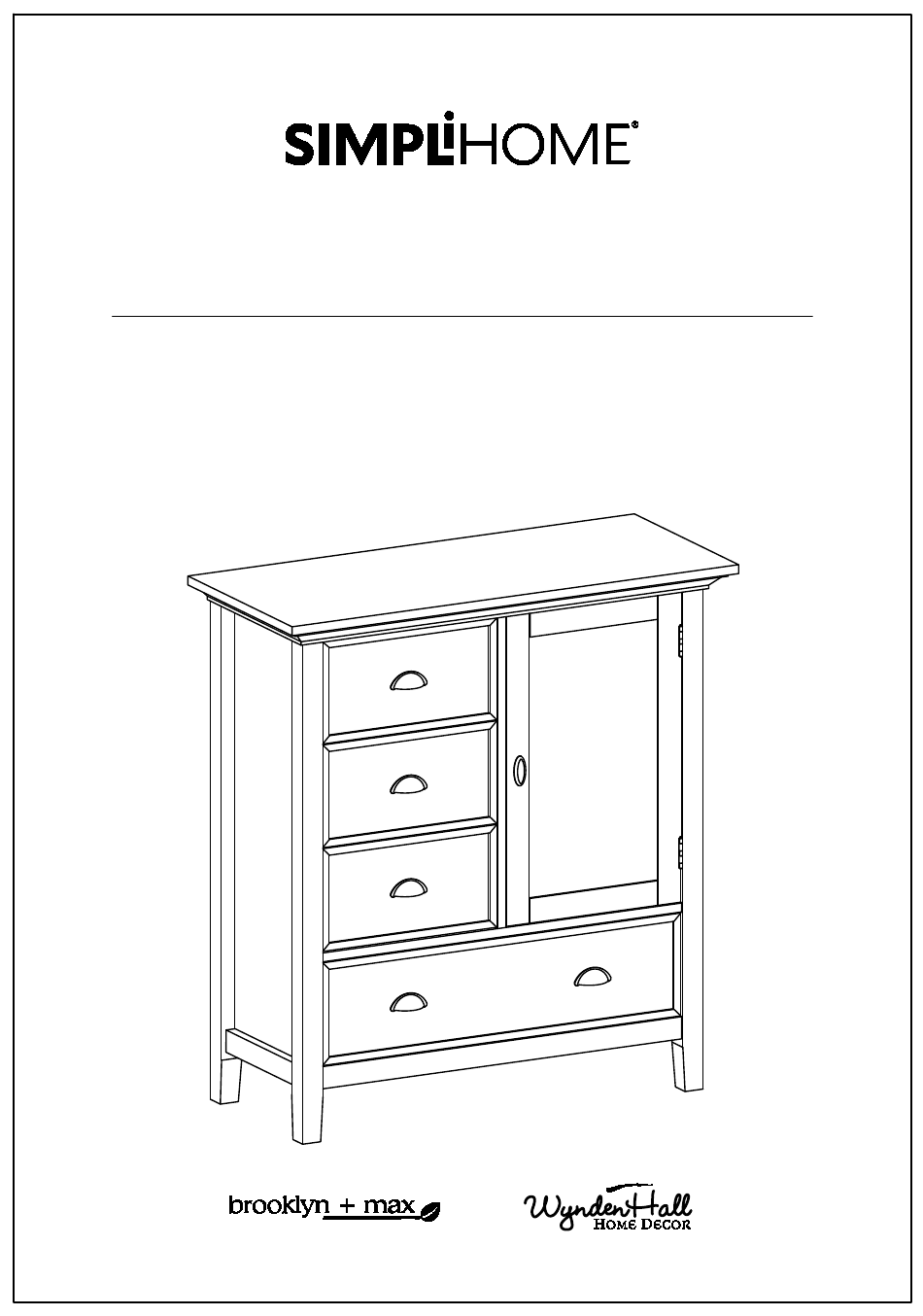

  • Page 1 Redmond / Mansfield / Stanwick Medium Storage Cabinet Model # AXCRED15-BL...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCRED15-BL Part Description RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 BOTTOM DIVIDER DOOR QTY 1 QTY 1 QTY 1 Warning Label CABINET SHELF LEFT BACK PANEL RIGHT BACK PANEL QTY 1 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCRED15-BL Part Description TOP SHELF LARGE DRAWER FRONT SMALL DRAWER FRONT QTY 1 QTY 1 QTY 3 LEFT DRAWER SIDE RIGHT DRAWER SIDE SMALL DRAWER BACK QTY 3 QTY 4 QTY 4 LARGE DRAWER BACK SMALL DRAWER BOTTOM LARGE DRAWER BOTTOM QTY 1 QTY 3...
  • Page 9 Pre-Assembly Information Model # AXCRED15-BL Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY SHELF SUPPORT QTY 34 QTY 1 QTY 6 PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 12mm M3 X 15mm M4 X 15mm QTY 6 QTY 4 QTY 19...
  • Page 10 Components - Key Diagram Model # AXCRED15-BL...
  • Page 11 Assembly Model # AXCRED15-BL Step 1 1. Attach four Cam Lock Pins 9 to back of Small Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides KL , KR . 3. Insert two Cam Lock 9 into pre-drilled holes on each Drawer Side KL , KR . 4.
  • Page 12 Assembly Model # AXCRED15-BL Step 3 1. Align Small Drawer Back L with Small Drawer Bottom N and press firmly into slot. 2. Attach Small Drawer Back L using two Allen Key Screws 1 through pre-drilled holes on each Side KL , KR . 3.
  • Page 13 Assembly Model # AXCRED15-BL Step 5 1. Attach five Cam Lock Pins 9 to back of Large Drawer Front J . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides KL , KR . 3. Insert two Cam Lock 9 into pre-drilled holes on each Drawer Side KL , KR . 4.
  • Page 14 Assembly Model # AXCRED15-BL Step 7 NOTE: The screwdriver is not included in the hardware pack. 1. Align Cam Lock Pins with pre-drilled holes and attach Drawer Bottom Support P . 2. Insert one Cam Lock 9 into pre-drilled holes on Drawer Bottom Support P . 3.
  • Page 15 Assembly Model # AXCRED15-BL Step 8 NOTE: The screwdriver is not included in the hardware pack. 1. Use phillips screwdriver to attach two Handles 10 to Large Drawer Front J .
  • Page 16 Assembly Model # AXCRED15-BL Step 9 1. Attach Divider D to Top Shelf H using three Allen Key Screws 1 . 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 10 1. Attach three Cam Lock Pins 9 to back of Left Side A 2.
  • Page 17 Assembly Model # AXCRED15-BL Step 11 1. Repeat Step-10 for The Right Side A...
  • Page 18 Assembly Model # AXCRED15-BL Step 12 1. Attach Top B to Side A and Divider D using nine Allen Key Screws 1 (three screws on each Side and Divider). 2. Use Allen Key 2 to tighten screws. Do not over-tighten.
  • Page 19 Assembly Model # AXCRED15-BL Step 13 NOTE: The screwdriver is not included in the hardware pack. Note: Warning Label 1. Attach Back Panels GL , GR to back frame of cabinet using nineteen Phillips Screws Round Head 6 through pre-drilled holes. 2.
  • Page 20 Assembly Model # AXCRED15-BL Step 14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Door E to Rihgt Side A using Phillips Screws 4 into guide holes. 2. Attach Magnet Plates 7 to bottom corner of Door E using Phillips Screws 5 into guide holes on Door E .
  • Page 21 Assembly Model # AXCRED15-BL Step 15 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint. 3.
  • Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 16 included in the hardware pack.
  • Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
