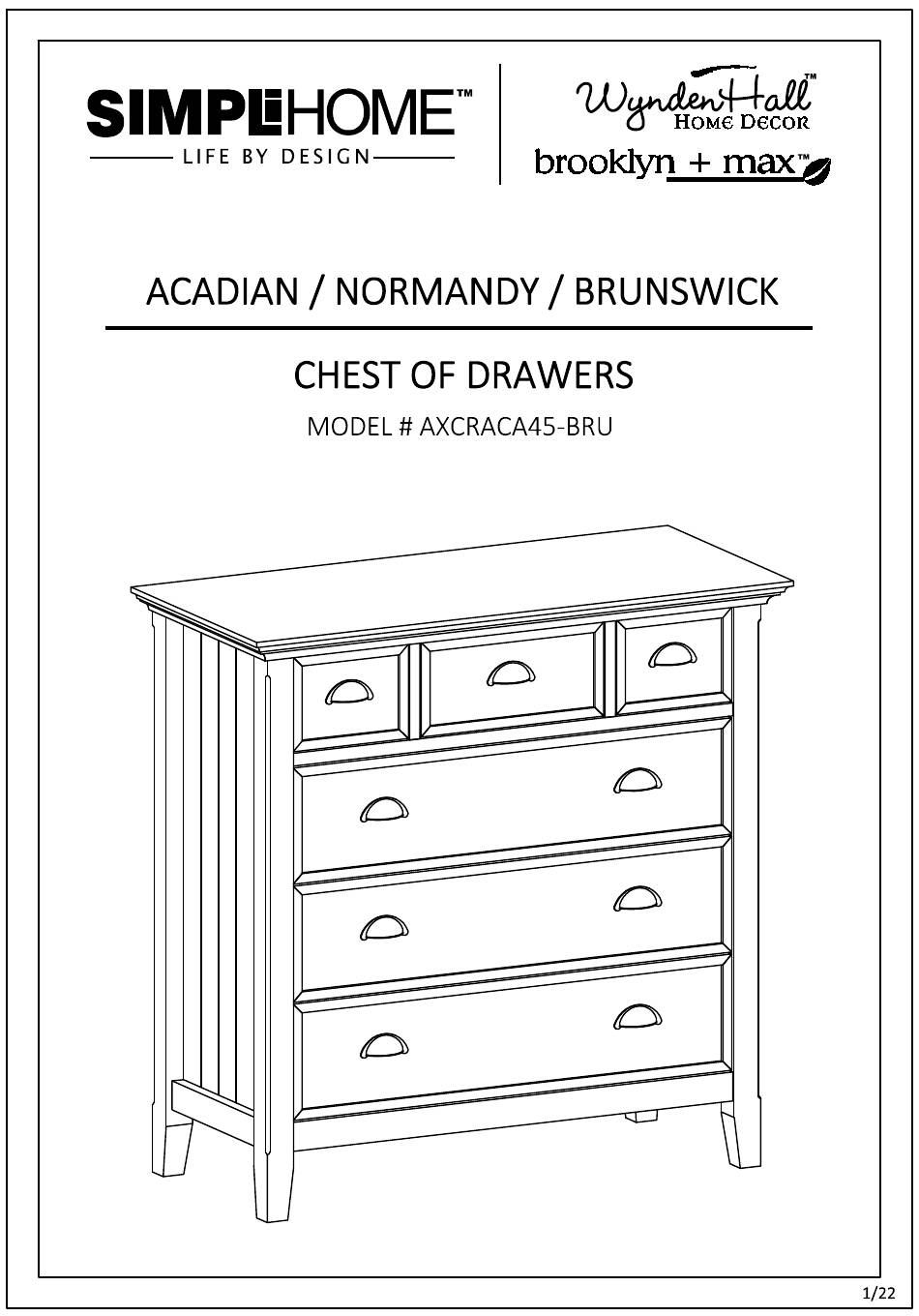

Summary of Contents for Simpli Home Wyndenhall Brooklin + Max AXCRACA45-BRU
-
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRACA45-BRU PART DESCRIPTION BOTTOM FRAME MIDDLE FRAME QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE TOP BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM BACK PANEL LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 LARGE DRAWER FRONT MIDDLE DRAWER FRONT... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCRACA45-BRU PART DESCRIPTION LEFT MIDDLE & SMALL LEFT LAGRE DRAWER SIDE RIGHT LAGRE DRAWER SIDE DRAWER SIDE QTY 3 QTY 3 QTY 3 RIGHT MIDDLE & SMALL LARGE DRAWER BACK MIDDLE DRAWER BACK DRAWER SIDE QTY 3 QTY 1 QTY 3 MIDDLE DRAWER BOTTOM...
- Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCRACA45-BRU HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY SCREW M6 X 30mm M6 X 30mm QTY 18 QTY 36 PHILLIPS SCREW HANDLE ROUND HEAD M4 X 6 mm ALLEN KEY M4 X 15mm QTY 9 SETS QTY 1 QTY 18 Required -...
- Page 17 ASSEMBLY MODEL # AXCRACA45-BRU STEP-15 1. Attach Top A to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Attach Top A to Dividers FL , FR using 6 Allen Key Screws 2 ( 3 Screws / each Divider ).
