Installation Manual
Type: Komfort Evap Cooler
KEEP WITH THE PRODUCT
This product may be used by children aged 8 years and over, persons with reduced mental capacity,
physical limitations or lack or experience and knowledge if they are supervised or have been
instructed in the use the product safely and are aware of the possible hazards. Children should not
play with the product.
Cleaning and maintenance by the user may not be carried out by children without supervision.
Country origin: NL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BLAUBERG Komfort Evap Cooler
Summary of Contents for BLAUBERG Komfort Evap Cooler
- Page 1 Installation Manual Type: Komfort Evap Cooler KEEP WITH THE PRODUCT This product may be used by children aged 8 years and over, persons with reduced mental capacity, physical limitations or lack or experience and knowledge if they are supervised or have been instructed in the use the product safely and are aware of the possible hazards.
-
Page 2: Table Of Contents
The available information has been compiled with every possible care, but Blauberg UK cannot be held liable for any errors in the information or for the consequences of this. Blauberg UK cannot be held liable for damage arising from work carried out by third parties. -
Page 3: Safety Regulations
Section 1 – Safety regulations Blauberg UK. accepts no liability for damage or injury caused by not (strictly) complying with the safety regulations and instructions, or by carelessness during the installation and/or use of the cooler. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capacity, or lack of experience and knowledge, unless they are supervised or instructed in the use of the product by a person who is responsible for their safety. -
Page 4: Delivery
Section 2 – Delivery Check the packaging on receipt and before opening for visible damage. Damage must be reported to Blauberg UK in writing within 48 hours after delivery. Scope of supply The cooler consists of: An EPP housing fitted with 2 round connections of 200DIA mm. -
Page 5: Operation
3.1 Principle operation The Komfort Evap Cooler can easily be placed on the return air of the MVHR. The warm air from the residence area transports through o a humid matrix. This cools down the air to almost the wet bulb temperature of the air, for instance 29C/30% cools down to 20C/75%. -
Page 6: Use

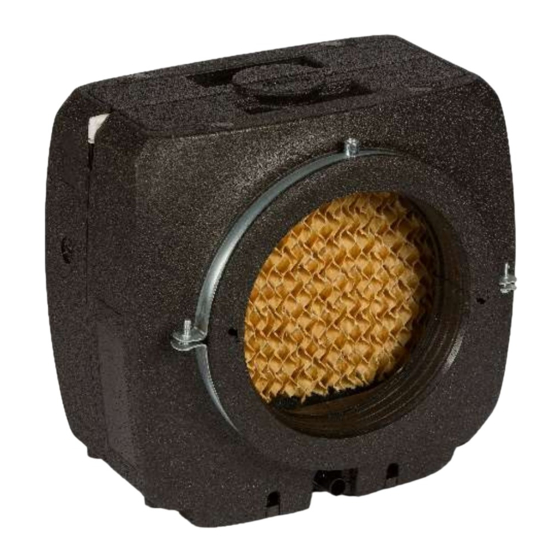

Section 4 – Use Description of the components The main components of the cooler are: The housing The housing of the cooler is made of EPP (expanded polypropylene). The advantages of this material are its low weight, good water tightness, good air tightness and recyclability. The housing consists of an upper and a lower part that are fixed to one another by two Mounting rings. -
Page 7: Technical Specifications
Section 5 – Technical specifications Specifications Description Dimensions LxBxH 258 x 344 x 335 mm Humidification capacity 0-4 litre Maximum cooling-capacity 1950 watt Electricity consumption 20 VA Maximum water consumption 5 litre per hour Water supply connection ¾ internal thread with connection to Water drainage connection 16 mm hose grommet 50cm Maximum air volume... -
Page 8: Exploded View
5.3 Exploded view... -
Page 9: Order Of Operation
Section 6 – Installation Order of operation 1. Choose the location of the cooler in the air return duct as close as possible to the MVHR unit. The minimum distance after a bend is 150mm. 2. It is important that during installation sufficient space is available so that the unit can be rotated at time of doing service = replacing matrix cassette. - Page 10 6.2 Installation:...
-
Page 11: Faults
Section 7 – Faults When the control in the unit detects a fault, this is displayed at the bottom of the product by the alarm symbol (bell) by means of an LED. To reset the alarm the product must be briefly disconnected from the power supply by removing the plug from the socket and then replacing this in the socket after 10 seconds. -
Page 12: Maintenance
Section 8 – Maintenance The cooler is equipped with a removable cassette in which a matrix is fitted. The matrix cannot be cleaned. The cooler cassette must be replaced at least every year to guarantee safe and healthy humidification. A service message is triggered that is visible by a LED coming on (next to the lock symbol) at the bottom of the cooler. -
Page 13: Wiring Diagram
Section 9 – Wiring diagram TB2 10V Dipswitch settings: 1=off 2=off 3=on 4=on... -
Page 14: Service
Section 10 – Service When ordering components in addition to the product code the serial number (if present) and the name of the component must be stated. 10.1 Service products Product description Product code Cooler cassette HECASC Cooler water valve HEVDW12EA Cooler drain HEAFVOER... -
Page 15: Warranty Provisions
Blauberg UK shall only be valid if the product is installed in the country of first purchase. 11.3 In derogation of the provision in paragraph 1 of this Article the warranty for goods that Blauberg UK has obtained from third parties or has had developed and/or manufactured by third parties shall be limited to the warranty that these third parties have given to Blauberg UK. -
Page 16: Liability
12.4 If Blauberg UK’s insurer does not make a payment in any case or the damage is not covered by the insurance, the liability of Blauberg UK shall be limited to the invoice value of the relevant agreement.
