Estate TEP315T Dimension Manual

®
PRODUCT MODEL NUMBERS
TEP315T
TES356T
TEP340T
Electrical: This range is manufactured with the
neutral terminal connected to the cabinet. Use a
3-wire, UL listed, 40- or 50-amp power supply
cord (pigtail). If local codes do not permit ground
through the neutral, use a 4-wire power supply
cord rated at 250 volts, 40 or 50 amps and
investigated for use with ranges. A time-delay fuse
or circuit breaker is recommended.
The model/serial rating plate is located on the oven
frame behind the storage drawer panel.
CABINET OPENING DIMENSIONS
B
E
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
30" Freestanding Electric Range

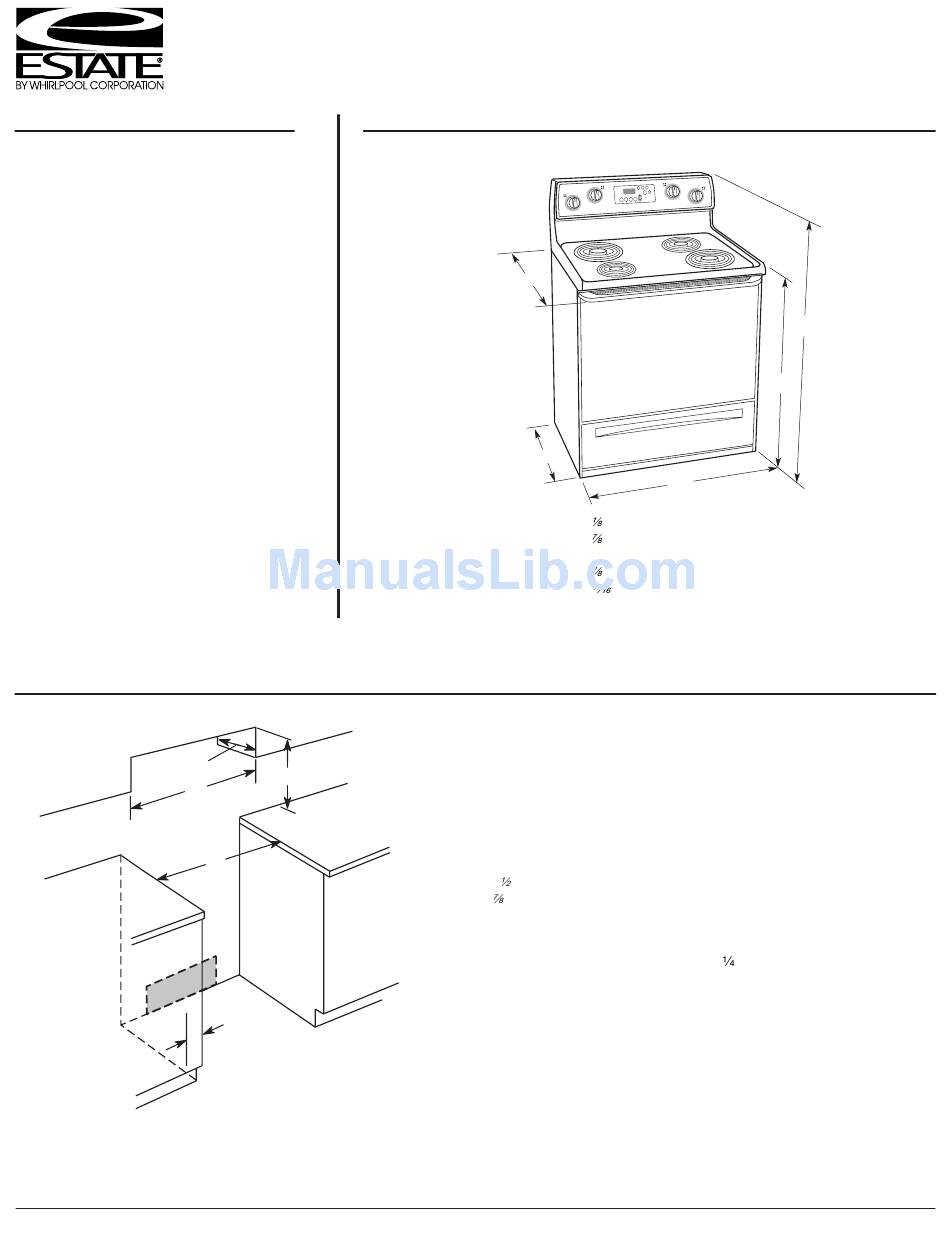

OVERALL DIMENSIONS
A
E
C
D
F
A
E
A. 27 " (68.9 cm) depth with handle
B. 46 " (119.1 cm) overall height
C. 36" (91.4 cm) cooktop height
D. 29 " (75.9 cm) width
E. 24 " (63 cm) depth
A. 13" (33 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*.
D. 30" (76.2 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5 " (14.0 cm) max. from floor
F. " (2.2 cm) min. required between cutout and cabinet door or hinge
*NOTE: 24" (61 cm) minimum when bottom of wood or metal
cabinet is protected by not less than
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the
cooking platform and the bottom of an unprotected wood or
metal cabinet.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
C
D
" (0.64 cm) flame
Ref. W10141166
10-01-07
