Summary of Contents for Retekess HR11

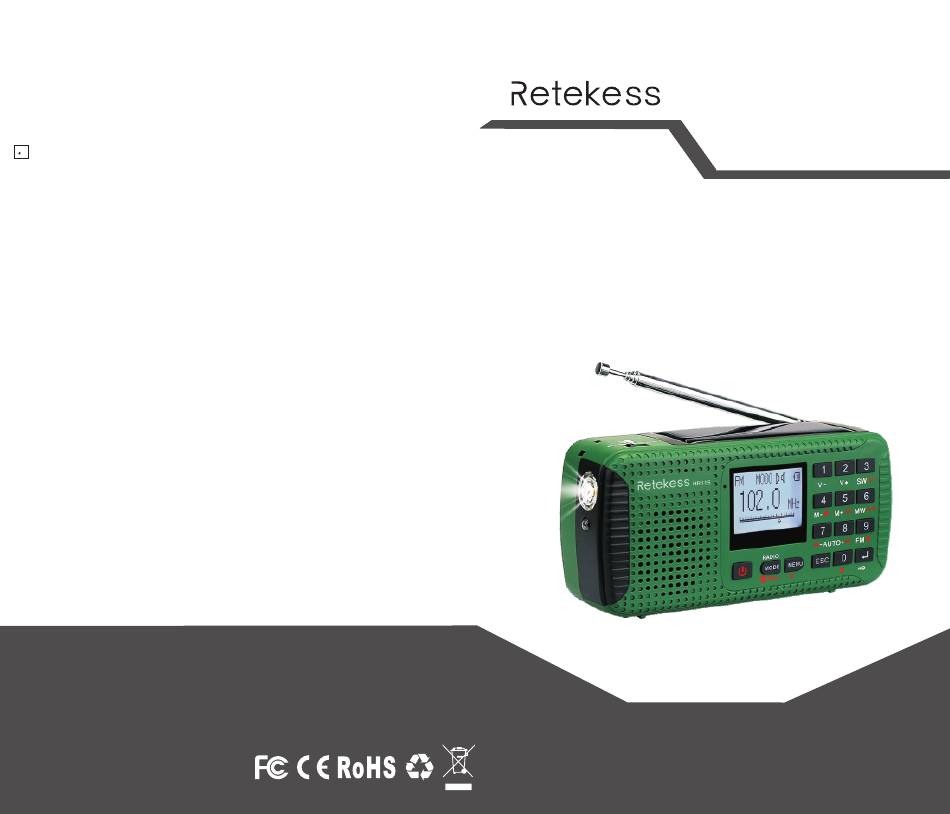

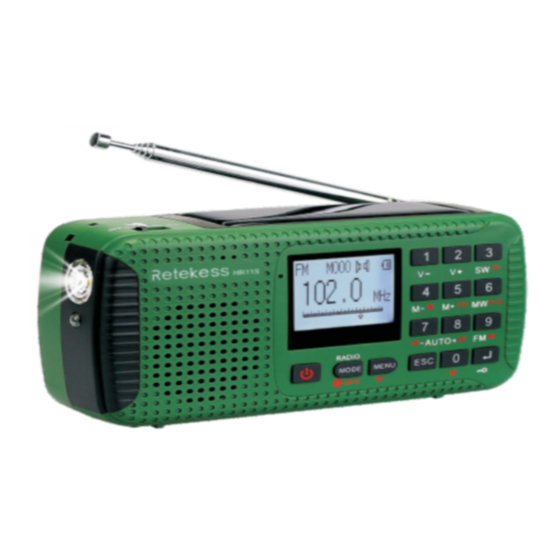

- Page 1 OPERATION MANUAL HR11 FM/AM/SW(WB) Digital Radio/ Bluetooth/MP3/Recorder Henan Eshow Electronic Commerce Co., Ltd Room 722, Sanjiang Building, No.170 Nanyang Road, Huiji District, Zhengzhou, Henan, China Facebook: facebook.com/TivdioRadio E-mail: support@tivdio.com...
- Page 2 STATEMENT Our engineers devote d Thank You three years to research and development of this HR11 emergency Thank you for purchasing the HR11 multi-band outdoor radio. world’s first multi-band dial radio. radio. Please read the manual thoroughly it’s perfect for outdoor use and sports activities,...
-
Page 3: Table Of Contents
CONTENTS CONTENTS CONTROL LOCATIONS ......1 PLAYING MUSIC........16 CONTROL LOCATIONS ......2 PLAYING MUSIC..........17 CONTROL LOCATIONS ......3 PLAYING MUSIC...........18 DEFINITION OF KEY OPERATIONS...4 PLAYING MUSIC...........19 LITHIUM BATTERY POWER SUPPLY....5 SYSTEM SETTINGS........20 LITHIUM BATTERY POWER SUPPLY....6 .........21 BACKLIGHT TIMER BACKUP POWER SUPPLY.........7 ALARM SET ...........22 MAIN MENU............8 CONTRAST SET... -
Page 4: Control Locations
CONTROL LOCATIONS CONTROL LOCATIONS Volume knob:Rotate to tune v+/v- CONTROL LOCATIONS In radio mode: SW button or WB button In music mode: Choose play cycle mode In radio mode: M+ HR11S In music mode: press to select and play EQ In radio mode: M-,long press to record radio In other mode: long press to enter MIC recording... -
Page 5: Control Locations
Stereo earphone jack LOCK/UNLOCK KEYS link with computer/ Micro USB por HR11 is equipped with a key lock and unlock charge) function, which you can manually turn on and off. When the radio is on, this will prevent you MICRO SD/TF card slot... -
Page 6: Lithium Battery Power Supply
LITHIUM BATTERY POWER SUPPLY LITHIUM BATTERY POWER SUPPLY 2. To charge the battery, connect the Micro-USB Please use the lithium battery approved by Retekess cable to the radio, the other end to a USB to power this product. A lithium battery is attached adapter. -
Page 7: Backup Power Supply
BACKUP POWER SUPPLY MAIN MENU MAIN MENU CRANK POWER In any mode, press <ESC> can go back to Main When the battery is out of power. Crank the handle for 360 degrees and charge for the Menu. Radio lithium battery. Main Menu NOTE Set the power selector to OFF when... -
Page 8: Radio
RADIO FM STEREO/MONO SELECTION Stereo symbol FM STEREO/MONO SELECTION Band symbol Battery symbol When listening to FM, press < > to select Frequency d isplay Unit stereo/mono listening. If [ ] shows in the display, Frequency point stereo listening is selected, press < >... -
Page 9: Volume / Mute
TUNING STATIONS VOLUME / MUTE VOLUME / MUTE Five tuning methods: Manual tuning, A uto tuning, Direct frequency entry, A uto search (ATS) and To increase volume, press <VOL+>; T o decrease volume, press <VOL-> .T he volume adjustment memory recall. will be shown In the display. -
Page 10: Radio Recording
TUNING S TATIONS RADIO RECORDING 3. Press <MENU> to open the sub-menu and NOTES: After storing stations into memory, you can use select [Auto search], press <MENU> again to Memory Recall to find the stored station quickly. start auto tuning and store all the available All the stations that stored manually will be stations into memory. -
Page 11: Radio R Ecording
RADIO R ECORDING PLAYING MUSIC MIC RECORDING CALENDAR In any mode except for radio mode, you can Select [Calendar] i n Main Menu, press [MENU] activate the MIC recording function by long to display the date, time and day of the week. pressing <... -
Page 12: Playing Music
< > to confirm and the radio will Bluetooth to search radio Bluetooth play the selected file. <HR11> and click it to connect. 2.After the connection is successful, you can A-B REPEAT play the music from mobile devices. In addition When the music is playing, press <... -
Page 13: Playing Music
SYSTEM SETTINGS PLAYING MUSIC - Enter main: Enter Main menu LYRICS DISPLAY - ESC Support both Chinese and English display. The lyrics must be in .lrc format, use the same SYSTEM SETTINGS name as the song and location in the same folder. Select [System Settings] in Main menu, press Due to many Chinese versions on the market, <MENU>... -
Page 14: Backlight Timer
ALARM SET BACKLIGHT TIMER ALARM SET BACKLIGHT TIMER In System Settings, select [Tools] - [Alarm]. Press Select [Backlight] in System Settings, press <MENU> to enter the below settings: <MENU> to enter. Press < > or < > - Alarm Off to adjust the backlight timer from 3-240(seconds), Repeatedly pressing <MENU>... -
Page 15: Contrast Set
FIRMWARE UPGRADING CONTRAST SET - ESC FIRMWARE UPGRADE The radio supports firmware upgrades, if there is When the alarm is activated, [ ] appears on updated firmware or the radio system breaks the display, the radio will sound the alarm with the down, you can update the radio using the steps selected mode when reaching the preset time. -
Page 16: Care And Maintenance
FIRMWARE UPGRADING CARE AND MAINTENANCE CARE A ND MAINTENANCE 1. Keep it dry. Rain, humidity and other types of liquids or moisture can contain minerals that may cause corrosion to components. If the radio does accidentally get wet, remove the battery and wait for the radio to dry completely before re-installing. -
Page 17: Battery Safety Information
BATTERY SAFETY INFORMATION TROUBLESHOOTING BATTERY SAFETY INFORMATION TROUBLESHOOTING 1. Use the battery under normal conditions, 1. Cannot turn on the radio. temperature: (20±5)°C, relative humidity: 65 ± The battery may be drained. Please charge the battery. 20%. Under normal circumstances, the battery can be charged and discharged about 300 times. -
Page 18: Specifications
SPECIFICATIONS CAUTION SPECIFICATIONS Avoid Choking Hazard Small Parts. Not for children under 3 Memory Supports micro-SD card 64M-32G years. Music f ormat MP3 W MA W AV Access rate MP3：16-320Kbps Protect your hearing WMA：8-384Kbps · Use the lowest volume necessary to Frequency range FM 87.0-108MHz do your job.
