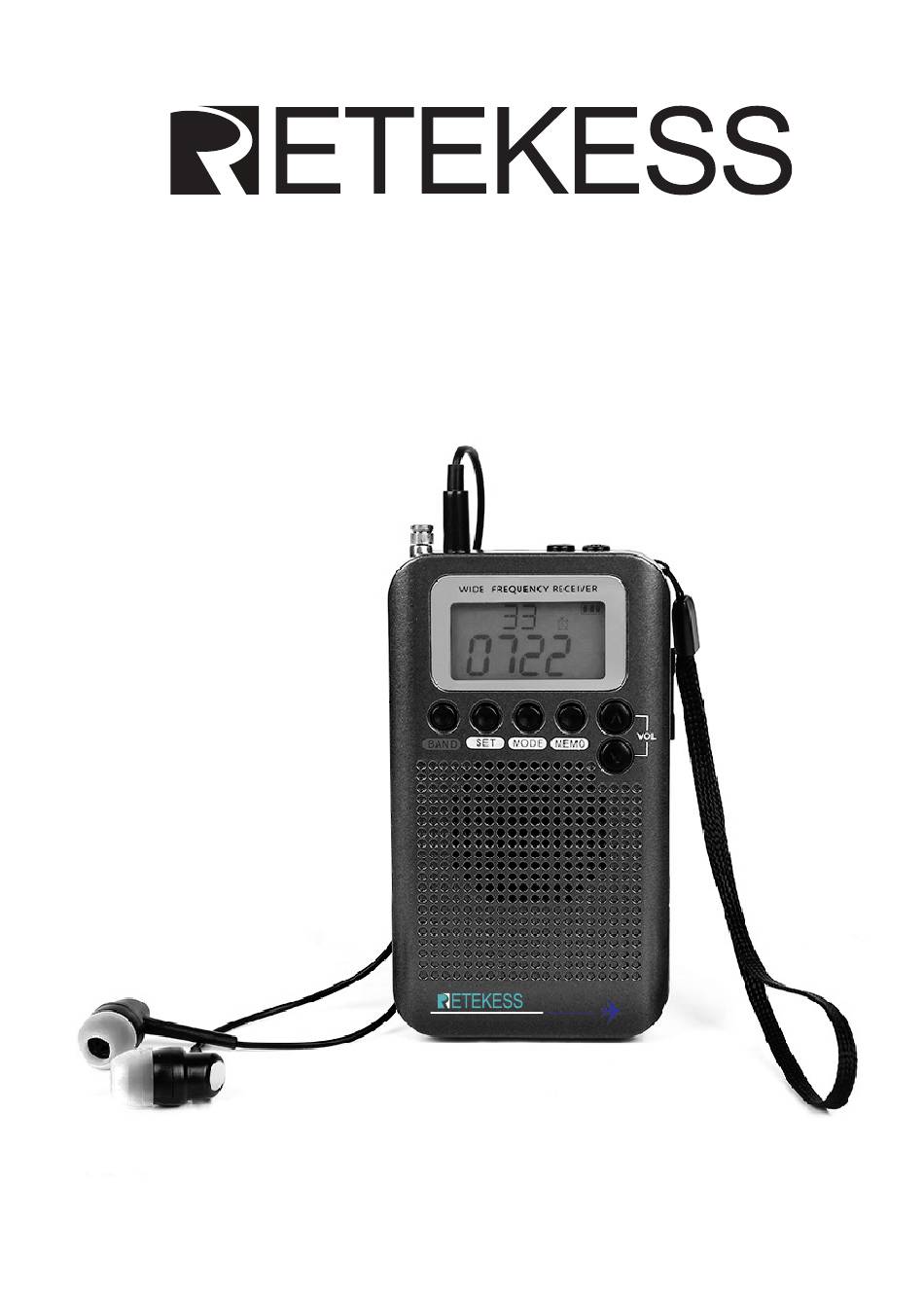

- Page 1 TR105 User Manual TR105...
- Page 2 Wide frequency receiver FM/MW/SW/AIR/CB/VHF WORLD BAND RECEIVER Thanks for purchasing the TR105 digital wide frequency radio. Please read this manual before using. Please keep it well for future reference. 1.TR105 radio overview information The radio is a small pocket size.Convenient to carry outside.and it has high reception sensitivity.
- Page 3 ①Power/Sleep ②Lock ③DC5V ④3.5mm Ear Jack ⑤Antenna ⑥LCD display ⑦VOL＋ ⑧VOL－ ⑨MEMO ⑩MODE 11 SET 12 BAND 13 TUN+ 14 TUN- 15 Rope 16 Loudspeaker ①POWER/SLEEP:For turning on and off the radio.adjust automatic shutdown. ②LOCK:LOCK:for locking the button to prevent it frequency conversion, shutdown, etc;...
- Page 4 bands switching 13 TUN+:Select station +, adjust time + function 14 TUN-:Select station -, adjust time - function 15 ROPE.it is convenient for customer carry. 16 Loudspeaker 3.LCD display symbol description: A:frequency/time display B:SW/CB/AIR/VHF the minimum step frequency C:Lock indication D:FM/SW/CB/AIR/VHF frequency unit E:AM frequency unit F:battery symbol...
- Page 5 SLEEP:After put into the battery, the radio on the clock state,Long press the ① button,the “ ” sleep symbol display on the LCD top right corner,the sleep time can be selected 90-80-70-60-50-40-30-20-10.each time press the ① POWER button to choose the sleep time.After choose the sleep time,about 1 second the radio turn on.Use the time to reach the selected sleep time, radio will turn off automatically.
- Page 6 6 LCD display,it is convenient for using: LCD digital display, convenient for users to see frequency points, band conversion, battery usage, band conversion, volume adjustment, etc. 7 VOL∧:FOR turning up the volume,turning up preset recall functions/ 8 VOL∨:FOR turning down the volume,turning down preset recall functions Adjust the volume +/- have two method: The first:The volume is adjusted up from 00 level to 33 level short...
- Page 7 Present recall function operation method: Short press ⑨ MEMO button,LCD display CH01……CH50(01……50 they are memory station address numbers),short press VOL∧∨ for selectting the target memory station. 10 MODE:（Mode conversion of each band） FM state:put the 3.5mm earplug into the radio,short press the ⑩ MODE button,LCD appear “MONO”...
- Page 8 Select FM-W:Mainly used for receiving campus radio /TV TV sound 11 SET:FOR setting time/setting SQ function: Setting time operation instruction: On the clock state or connect external DC5v power.the radio on clock state,long press 11 SET button，hour digital flashing,press 13 TUNING+/ 14 TUNING- for adjusting the correct hours.After adjusted the correct hour,press the 11 SET button again,the minute digital flashing,it is the same with adjust hour method,press 13 TUNING+/ 14...
- Page 9 press any button to stop ring. the alarm will continue 5 second if do not press any buttons Power-on state,bands exchange: Turn on the radio.short press 12 BAND button.FM/AM/CB/AIR/VHF（ VHF-W and VHF-N) exchange.each time short press for searching your target band. Auto scanning: Turn on the radio,long press 12 BAND button，...
- Page 10 7.receiving TV sound: The fundamental difference between TV and FM radio is that the sound is an odd multiple of 50KHZ. Below are the audio points of several countries. Special note: television sound for FM frequencies, radio interference of the environment influence is bigger, and have a strong regional, transmission distance limitations compared with other frequency bands, adjacent region or city coverage often large difference.
- Page 11 Speaker：Φ40MM 8Ω 1W Battery：700mah 3.7v lithium battery External power supply:DC5v Minimum operating voltage：3.2V Maximum current :>180mA Stereo separation：≥32DB The distortion degree of：≤0.5% output power：≤200MW External earplug：Φ3.5MM/32ΩX2 9.Using antenna : Listening to FM broadcast: Pull out the antenna , changing antenna length and direction to search for best receiving effect position Note : please shorten the antenna length when disturb by other strong broadcast...
- Page 12 User Manual For External Antenna Function： Improve SW/FM receive sensitvity(suitable for external connection when the indoor signal is poor) specification Clip type,line length: 3 meters Characteristics of the profile 1.it can enhance the receiviing capacity of FM and SM band , and improve the receiving effect FM and SM 2.
- Page 13 Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retekess radio has a RF Exposure Product Label. Also, your Retekess user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 14 RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of conformity is available at the following internet address: www.retekess.com. •Disposal The crossed-out wheeled-bin symbol on your product, literature, or...
- Page 15 comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
- Page 16 Approved Accessories •This radio meets the RF exposure guidelines when used with the Retekess accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may WARNING violate regulations.
- Page 17 Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3.The user can get warranty and after-sales service as below: ●Contact the seller where you buy.
- Page 18 Henan Eshow Electronic Commerce Co., Ltd Add: 7/F, Sanjiang Building, No.170 Nanyang Road, Huiji District, Zhengzhou, Henan, China EU Importer:Germany Retevis Technology GmbH Address:Uetzenacker 29,38176wendeburg Facebook： facebook.com/RetekessRadio E-mail: support@retekess.com Web: www.retekess.com MADE IN CHINA...
