Thermon Norseman XB Series Installation, Operation & Maintenance Instructions Manual
Ce explosion-proof convection panel heater
Hide thumbs
Also See for Norseman XB Series:
Table of Contents
Advertisement
Quick Links

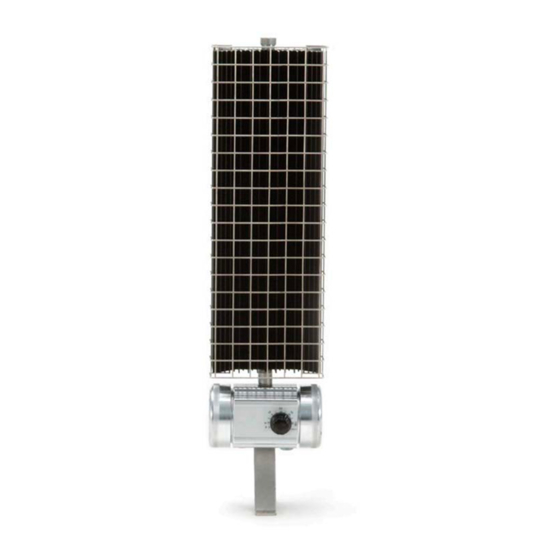

CE Explosion-Proof Convection Panel Heater
XB Series
Installation, Operation, & Maintenance Instructions
Depening on the particular model ordered, the heater is suitable for the following
areas:
II 2G EX db IIC T3 or T4, Gb
-60°C ≤ Tamb ≤ 40°C
ISO 9001
Special Notes
The following special notices highlight important
information in the installation and maintenance sections.
Each serves a special purpose and is displayed in the format
shown:
This symbol indicates a potentially hazardous situation,
which, if not avoided, can result in personal injury or
damage to the equipment.
CAUTION
This symbol indicates a potentially hazardous
situation, which, if not avoided, may be a shock
hazard.
CAUTION
This symbol indicates an imminently hazardous
situation, which, if not avoided, could result in death or
serious injury.
WARNING
Part No. 12430.Rev.1 June 2021 Printed in Canada
Advertisement
Table of Contents
Related Manuals for Thermon Norseman XB Series
Summary of Contents for Thermon Norseman XB Series
- Page 1 CE Explosion-Proof Convection Panel Heater XB Series Installation, Operation, & Maintenance Instructions Depening on the particular model ordered, the heater is suitable for the following areas: II 2G EX db IIC T3 or T4, Gb -60°C ≤ Tamb ≤ 40°C ISO 9001 Special Notes The following special notices highlight important...
- Page 2 TABLE OF CONTENTS A. Pre-installation B. Installation General Requiprements........................3 Wall Mounting ............................4 Floor Mounting ............................4 Thermostat Installation ........................5 C. Wiring D. Replacement Thermostats E. Start-up F. Maintenance G. Spare Parts...
- Page 3 PRE-INSTALLATION Initially, inspect the heater for possible damage due to Check to ensure that the heater voltage is the same shipping and handling. Claims for shipping damages as the supply voltage. shall be placed with the carrier. The heater must be installed by qualified personnel Check the heater nameplate to ensure that the heater in strict compliance with national and local electrical area classification and temperature code are suitable...
- Page 4 B.2 Wall Mounting B.3 Floor Mounting Step 1: Install heater with the supplied hardware in Position heater face down on the floor with terminal accordance with the figures and instructions below. box towards the wall (Figure 5, page 4). Step 1: Secure wall and stabilizing brackets to mounting surface (Figure 2, page 4).
- Page 5 B.4 Thermostat Installation FACTORY INSTALLED - For shipping purposes the with the operator shaft hole on the front side of the thermostat well (located at back of unit) has not been unit and plugged with a socket head cap screw. If a installed.
- Page 6 REPLACEMENT THERMOSTATS Wiring Diagram (Figure 8) WARNING. Whenever hazardous materials are Part No. present, ensure that the terminal housing covers, 1Ø 3Ø plug, etc., are secured (but not over-tightened) WARNING XB3-6300T3 before energizing the heater. XB3-6276T3 XB3-6252T3 XB3-4250T3 CAUTION. All circuits must be in the open position before removing junction or terminal box covers.
- Page 7 MAINTENANCE Periodically inspect the heater installation to ensure CAUTION. Do not use water to clean heater. that all connections, fittings, plugs, screws, covers, etc. are tight and free of corrosion. CAUTION Check the extrusions of the heater for dust and debris.
- Page 8 PLEASE ADHERE TO INSTRUCTIONS IN THIS MANUAL Failure to do so may be dangerous and may void certain provisions of your warranty. For further assistance, please call 24hr hotline: 1.800.661.8529 (U.S.A. and Canada) Please have model and serial numbers available before calling. WARRANTY: No warranty applies to paint fi nishes except for manufacturing Under normal use the Company warrants to...
