Banner ABR Series Quick Start Manual

2.
1.
3.
Factory Demo Setting
Out of the box, the ABR Barcode Reader is programmed to read
DataMatrix codes. Use the following procedure to demonstrate
the devices factory default capabilities.
1. Power the barcode reader on using the USB cable and AC power
supply.
2. If required, reset the device to defaults by pressing and holding
the button on the device during power up. Once all five LEDs
flash simultaneously, release then press the button one more time.
The reader beeps and after a few seconds enters Run mode with
the front LEDs flashing.
3. Rotate the focus ring on the back of the device with the supplied
hex key to the 70 Focus Position.
4. Mount the device approximately 70 mm (2.75 inches) above
reading surface at a 10–15º angle.
5. Present the DataMatrix code from the ABR Barcode Test Chart in
front of the device.
The ABR barcode reader can read DataMatrix codes right out of the
box. The pass LED, green spot and beeper all indicate good reads.
This compact device is robust, powerful and simple to setup.

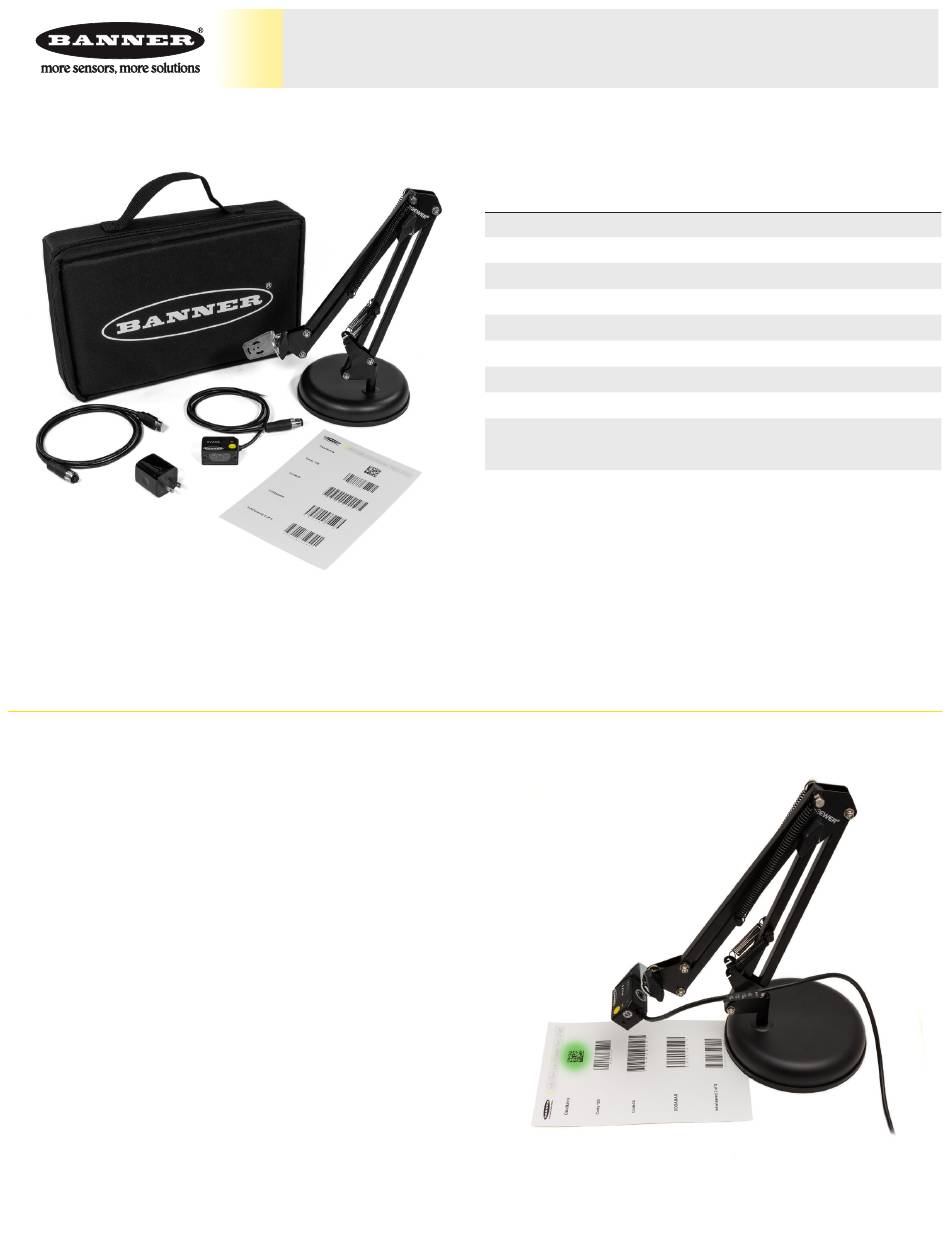

ABR Series Demo Kit
6.
5.
4.
7.
DK-ABR Barcode Reader (PN 806556)
Models
1. ABR3009-WSU2
2. MQDEC-1703SS-USB
3.
4.
5.
6.
7. PN 208706
PN 207636
PN 208394
Description
ABR Barcode Reader
USB Power/Configuration Cable
USB Power Supply
Bracket
Mounting Arm
Carrying Case
Allen Wrench (for focus adjustment)
Barcode Test Chart
Quick Start Guide
Sell Sheet
