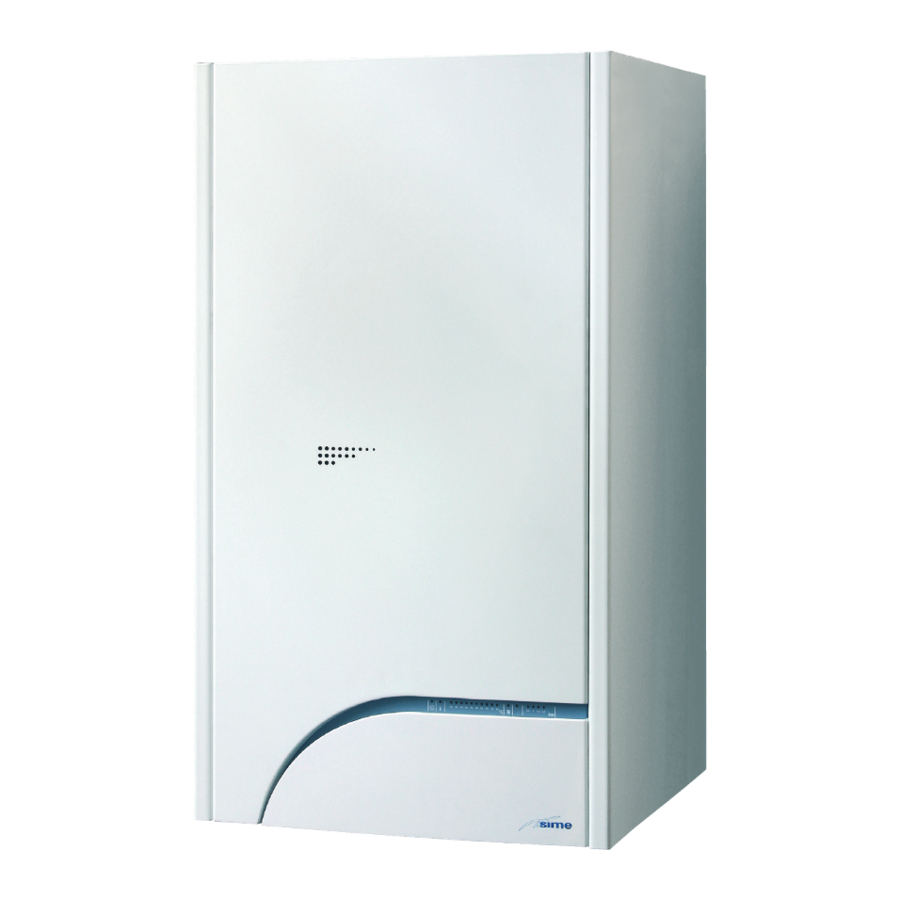

Sime PLANET DEWY 60 BFR Installation And Servicing Instructions

Hide thumbs Also See for PLANET DEWY 60 BFR:

Advertisement

Quick Links

ENSURE THAT THESE INSTRUCTIONS ARE LEFT
UK
FOR THE USER AFTER COMPLETION OF THE
BENCHMARK SECTION
PLANET DEWY
60-100 BFR
Installation and
servicing instructions
199838
Please read the Important Notice within
this guide regarding your boiler warranty

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLANET DEWY 60 BFR and is the answer not in the manual?

Questions and answers

Related Manuals for Sime PLANET DEWY 60 BFR

Summary of Contents for Sime PLANET DEWY 60 BFR

  • Page 1 ENSURE THAT THESE INSTRUCTIONS ARE LEFT FOR THE USER AFTER COMPLETION OF THE BENCHMARK SECTION PLANET DEWY 60-100 BFR Installation and servicing instructions 199838 Please read the Important Notice within this guide regarding your boiler warranty...
  • Page 2 For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and labour. As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and service.
  • Page 4 For more information visit www.centralheating.co.uk FONDERIE SIME S.p.A. of Via Garbo 27 - Legnago (VR) - Italy declares that its hot water boilers, which bear the CE mark under Gas Directive 90/396/CEE and are fitted with a safety thermostat calibrated to a maximum of 110°C, are not subject to application of PED Directive 97/23/CEE as they meet the requirements of article 1...

  • Page 5: Table Of Contents

    IPX4D Planet Dewy 60 BFR: Gas Council number 41-283-03 Planet Dewy 100 BFR: Gas Council number 41-283-11 These appliances comply with the S.E.D.B.U.K. scheme, band “A” CONTENTS DESCRIPTION OF THE BOILER ............... . pag.

  • Page 6: Description Of The Boiler

    2009/142/CEE, 2004/108/CEE, to 6 boilers in sequence or cascade. DIMENSIONS 1.2. 1 PLANET DEWY 60 BFR (fig. 1) C.H. return G 1” (UNI-ISO 228/1) C.H. flow G 1” (UNI-ISO 228/1) Gas connection G 3/4” (UNI-ISO 228/1) Filling system G 1/2”...
  • Page 7 MAIN COMPONENTS 1.3. 1 PLANET DEWY 60 BFR (fig. 2) 1 Gas valve 2 Condensate trap 3 Fan 4 Air pressure switch 5 Ignition electrode 6 Ionisation electrode 7 Ignition transformer 8 Exhaust thermostat 9 Heating sensor (SM) 10 Safety thermostat 100°C...
  • Page 8 TECHNICAL FEATURES PLANET DEWY 60 BFR PLANET DEWY 100 BFR Heat output nominal (80-60°C) kW (kcal/h) 56.5 (48,600) 94.2 (81,000) Heat output nominal (50-30°C) kW (kcal/h) 62.0 (53,400) 103.0 (88,600) Heat output minimum G20 (80-60°C) kW (kcal/h) 17.0 (14,600) 28.2 (24,250) Heat output minimum G20 (50-30°C)

  • Page 9: Installation

    INSTALLATION The boiler must be installed in a fixed loca- whose size and requirements meet current heat exchanger is mandatory. tion and only by qualified engineers in com- regulations. pliance with all instructions contained in The boiler can be installed as class B devi- this manual.
  • Page 10 A sticker inside the module includes identifi- fig. 4 - 4/a - 4/b). ble products Sime Ltd recommend only the cation and gas type data specific to the The flue should be fitted and terminated in use of FERNOX products for the flushing module.
  • Page 11 Type C (separate ø 80 flues and coaxial exhaust terminal) ø 80 curve, 90° MF (6 pcs), code 8077450, (single 8077450A) 2 a ø 80 extension, L. 1000 (6 pcs.), code 8077351, (single 8077351A) 2 b ø 80 extension, L. 500 (6 pcs.), code 8077350, (single 8077350A) Articulated tile, code 8091300 4 a Coaxial roof exit terminal, L.
  • Page 12 Type C (ø 80/125 coaxial exhaust) ø 80/125 extension, L. 1000, code 8096171 ø 80/125 extension, L. 500, code 8096170 Articulated tile, code 8091300 Coaxial roof exit terminal, L. 1285, code 8091212A Inlet/exhaust fitting with test outlet, code 8091401 ø 80 rubber gasket (supplied with unit) ø...
  • Page 13 3 mm spacing between con- tacts. Respect the L and N polarities and the earth connection. NOTE: SIME declines all responsibility for injury or damage to persons, animals or property, resulting from the failure to pro- vide for proper earthing of the appliance.
  • Page 14 2.6.4 Wiring diagram version PLANET DEWY 60 BFR (fig. 7) EV1 Gas valve coil EV2 Gas valve coil Ignition electrode Ionisation electrode Safety thermostat 100°C TPA Water pressure transducer Pump External probe (optional) External control SM Heating sensor 230 - 24V transformer...
  • Page 15 2.6.6 The electric connection between the boiler and heater is downstream from the hydraulic separator (with TA) PLANET DEWY 60 BFR PLANET DEWY 100 BFR COD. 6260505 BOARD SCHEDA COD. 6230696 CODE 6230696 POSITION POSIZIONAMENTO BOARD SCHEDA DIP-SWITCH DIP-SWITCH COD. 6230696...
  • Page 16 2.6.7 The electric connection between the boiler and heater is downstream from the hydraulic separator (with LOGICA REMOTE CONTROL) PLANET DEWY 100 BFR PLANET DEWY 60 BFR COD. 6260505 LOGICA REMOTE CONTROL SCHEDA BOARD COD. 6230696 CODE 6230696 LOGICA REMOTE...
  • Page 17 LOGICA REMOTE CONTROL – Copy function for easy transfer of hea- of operating regime through the telepho- USED WITH SINGLE BOILERS. ting programme to the next or pre- ne system with external contact or vious day. through a window contact. All the boiler's functions can be managed by –...
  • Page 18 Maximum limit of delivery The delivery temperature is limited to the maximum set value. temperature Variation of the maximum speed of the The increase per minute of the prescribed delivery temperature value sent delivery temperature in °C is limited to the imposed value. Activation of adaptation With the activation of the adaptation, the pre-set value transmitted to the boiler regulator is adapted to the effective heat need.
  • Page 19 Input function terminal 3-4 The freely programmable input (terminals 3-4) allows three different functions to be activated. The parameter has the following significance: 1 = If an external sensor is connected, the display will show the temperature of the external sensor ( _ _ = no sensor connected, function disabled). 2 = With an external contact, it is possible to switch-over to "reduced pre- set value of the ambient temperature".

  • Page 20: Characteristics

    CHARACTERISTICS 3. 1 ELECTRONIC BOARD clockwise, to reduce it, rotate the trim- run at minimum modulation pressure mer counter-clockwise. before moving to the set heating pressu- Built according to Low Voltage directive re. The addition of a bridge will cancel 2006/95/CEE and powered at 230 Volt, –...
  • Page 21 1 Ignition electrode earth faston 3 Fuse (1,6 AT) 5 “ANN. RIT.” connector 6 “POT. ACC.” trimmer 8 D.H.W. potentiometer 9 Ionisation electrode connection 10 “POT. RISC.” trimmer 11 Heating potentiometer 12 Selector CR/OFF/EST/INV/RESET 13 DIP SWITCH 14 Connector “Modureg Sel.” 15 Connector “Albatros”...
  • Page 22 PLANET DEWY 60-100 BFR PZ-PZ1 Zone pump CR-CR1 Relay contact Fig. 13 “PLANET DEWY 60 BFR” WITH OPTIONAL KIT 8101530 (shown connected to a hot water cylinder) Gas valve Condensation drain siphon Hot water pump (not supplied) Heating probe (SM) Safety thermostat 95°C...
  • Page 23 “PLANET DEWY 100 BFR” WITH OPTIONAL KIT 8101531 (shown connected to a hot water cylinder) Gas valve Condensation drain siphon Hot water pump (not supplied) Heating probe (SM) Safety thermostat 95°C Exhaust thermostat Primary heat exchanger Differential pressure switch Water pressure transducer Air relief valve Pump Drain plug...

  • Page 24: Use, Maintenance (Including Benchmark) And Commissioning

    USE, MAINTENANCE (including BENCHMARK), and COMMISSIONING 4. 1 BOILER CALIBRATION (fig. 16) GAS CONVERSION connections using soapy water or appropriate products. DO NOT USE NAKED FLAMES. – Close the gas cock. – Stick onto the casing panel the – Replace the injector (pos. 30) plate showing the relevant fee- and the relevant gasket (pos.
  • Page 25 GAS VALVE (fig. 17) SIT 848 SIGMA DUNGS GB-GD 057 The boiler “60 BFR” is equipped standard with the SIT 848 SIGMA gas valve. The boi- ler “100 BFR” is equipped standard with the DUNGS GB-GD 057 gas valve (fig. 17). SHELL REMOVAL (fig.
  • Page 26 = mini- working gas supply pressure. If required mum output. contact Sime Ltd for further assistance. analyser and the interpretation of the...
  • Page 27 For single “60 BFR” boiler Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty. This does not affect the customer’s statutory rights. If yes, and if required by the manufacturer, has a water scale reducer been fitted? CONDENSING BOILERS ONLY The condensate drain has been installed in accordance with the manufacturer’s instructions and/or BS5546/BS6798 If the condensate pipe terminates externally has the pipe diameter been increased and weatherproof insulation fitted?
  • Page 28 Service R ecord It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. This is also a condition of any extended warranty offered. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 31 VENTILATION REQUIREMENTS /KW of net heat input. Therefore a sin- from floor natural gas, 250 mm LPG)– 5 gle 60 BFR (58 KW net input) boiler would /KW of net heat input. 60 BFR boiler, installed as class C device require 116 cm at high level and 232 cm Therefore a single 60 BFR (58 KW net...

  • Page 32: Exploded Views

    EXPLODED VIEWS 3830005/345 PLANET DEWY 60 BFR UK 20.01.2010 COD. TYPE DATE PAGE...
  • Page 33 3830005/345 PLANET DEWY 60 BFR UK 20.01.2010 COD. TYPE DATE PAGE...
  • Page 36 3830037/212 Planet Dewy 100 BFR UK 20.01.2010 COD. TYPE DATE PAGE...
  • Page 37 3830037/212 Planet Dewy 100 BFR UK 20.01.2010 COD. TYPE DATE PAGE...
  • Page 40 Sime Ltd 1a Blue Ridge Park Thunderhead Ridge Glasshoughton, Castleford, WF10 4UA Phone: 0845 9011114 Fax: 0845 9011115 www.sime.co.uk Email: enquiries@sime.co.uk...
