PLEASE LEAVE THIS INSTRUCTION

WITH THE USER

Dewy 30/130

HE FS

User instructions

Need help?

Do you have a question about the benchmark Dewy 30 HE FS and is the answer not in the manual?

Questions and answers

Summary of Contents for Sime benchmark Dewy 30 HE FS

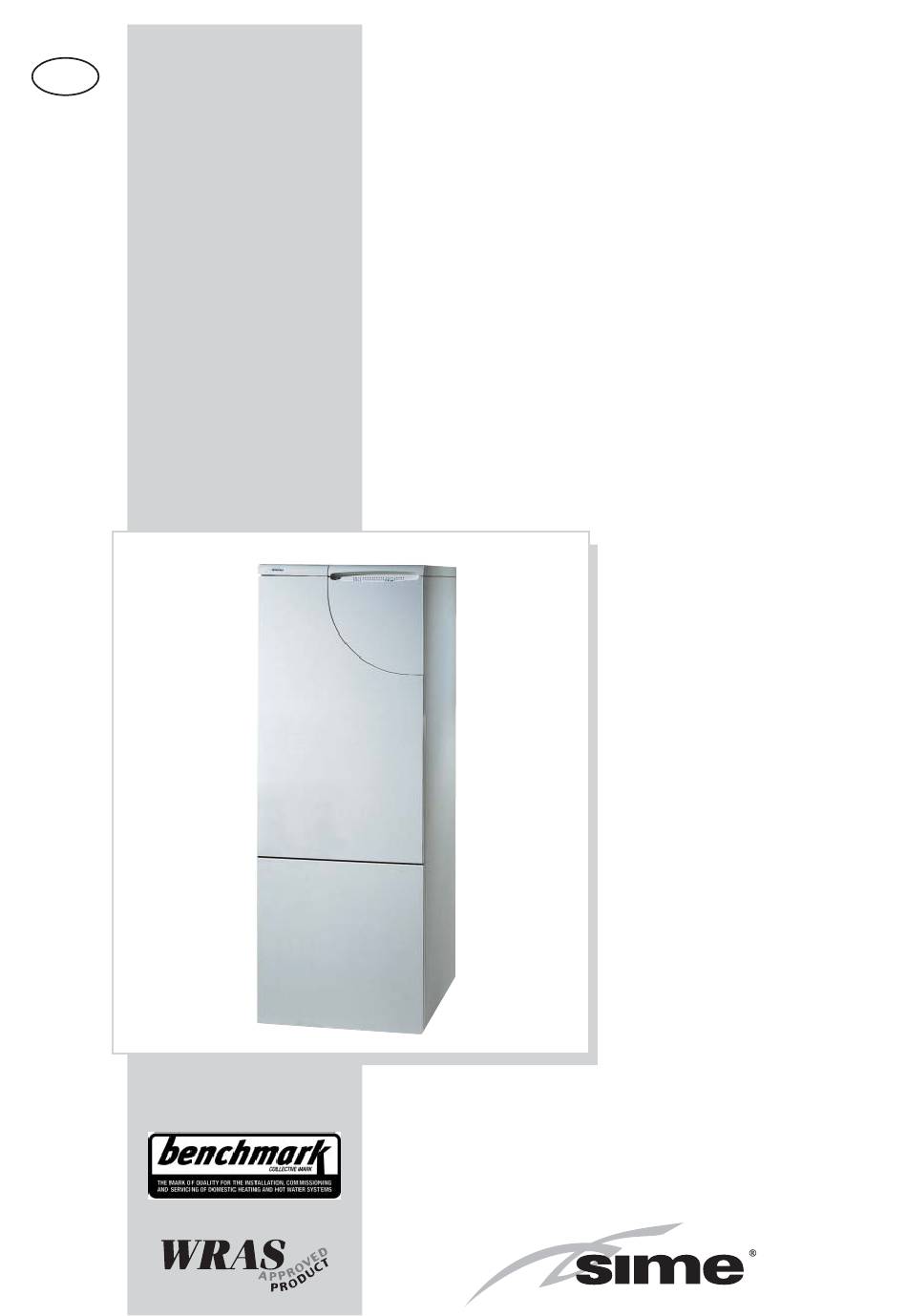

Page 1 PLEASE LEAVE THIS INSTRUCTION WITH THE USER Dewy 30/130 HE FS User instructions...
Page 2 All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make changes and improvements in our products that may affect the accuracy of the information contained in this manual.
Page 4 The Benchmark Scheme Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimi- se safety, efficiency and performance.
Page 5 CONTENTS LIGHTING AND OPERATION ................6 TIME PROGRAMMER .
Page 6 LIGHTING AND OPERATION BOILER IGNITION (fig. 1) TEMPERATURES ADJUSTMENT (fig. 2) knob on the OFF position. If the boiler is not going to be used for a lengthy Ensure the gas supply is turned on lower – The D.H.W. temperature can be adju- period it is advised to turn off the elec- the control panel cover and activate the boi- sted by turning the knob of the D.H.W.
Page 7 FAULT FINDING RED LED SPIA ROSSA – Ignition lock-out (fig. 3) If the burners do not ignite, the red led will light-up ( To attempt a boiler restart, rotate the selector knob to position ( ) and relea- se it immediately, placing it in the sum- mer ( ) or winter ( )operation posi-...
Page 8 TIME PROGRAMMER DIGITAL TIME CLOCK INSTRUCTIONS When the selector is in the “AUTO” position, boiler functioning is automatically controlled on the basis of the temperature levels and 1 Manual/automatic time periods set. The second selector must operation selector be in the “RUN” position to start. The pro- 2 Program/schedule setting selector gramming procedure is described below:...
Page 9 LOGICA REMOTE CONTROL When “DEWY” is connected to the “Logi- down, the boiler will function by placing the ca Remote Control” regulator, the selec- selector on the ( ), position, obviou- t or CR/OFF/SUM/WIN/UNBLOCK sly without consequent control of the room must be placed in the position ( );...
Page 10 ACTIVATING During functioning the lid of the regulator must be closed. – Selection of the operating mode The operating mode desired is selected by (reference keys grey colour) pressing the relative key with the correspon- ding symbol. The choice is displayed with the symbol Automatic functioning: the heating functions automatically according to the hea- ting programme entered.
Page 11 – On-line key If the rooms remain unused for a long period of time, the temperatu- re can be reduced with the on-line key, in this way saving energy. When the rooms are occupied again, press the on-line key to re-heat them. The current choice is displayed on the display: Fixed temperature heating Reduced temperature heating...
Page 12 – Heating/hot-water With the heating programme it is possible to set the switching times of the temperature for a service programme period of a week. The weekly programme consists of 7 daily programmes. One daily program- me allows 3 phases of heating. Each phase is defined by a starting time and a finishing time. The n.
Page 13 – Current values Display and setting of the gradient of the heating characteristics curve. When the room temperature set is not reached choose the gradient indicated in point 2.9.3 Display of the current boiler temperature. Display of the current power of the burner and of the current operating mode = = heating/ = hot-water service) –...
Page 14 – Error display Ignition lock-out Rotate selector CR/OFF/EST/INV/RESET on the "DEWY 30/130 HE FS" control panel to the release position ( ) to reset operation (fig. 3). If the lock-out re-occurs, call an authorised Service Centre. Safety thermostat trip Rotate selector CR/OFF/EST/INV/RESET on the "DEWY 30/130 HE FS" control panel to the release position ( ) to reset operation (fig.
Page 16 Sime Ltd 1a Blue Ridge Park Thunderhead Ridge Glasshoughton, Castleford, WF10 4UA Customer Service: 0870 9911114 Sales: 0870 9911116 Technical Support: 0870 9911117 Main Fax: 0870 9911115 www.sime.ltd.uk...
