2x M.2 NGFF SSD RAID Controller Card
Plus 2x SATA Ports
PEXM2SAT3422
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/PEXM2SAT3422.
Manual Revision: 03/01/2016
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Altre Schede
StarTech.com PEXM2SAT3422
*actual product may vary from photos
o
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEXM2SAT3422
Summary of Contents for StarTech.com PEXM2SAT3422
- Page 1 2x M.2 NGFF SSD RAID Controller Card Plus 2x SATA Ports PEXM2SAT3422 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 About LED indicators ................3 LED diagram ..............................3 Hardware installation ................4 Install a drive in the PCIe card....................... 4 Install the low-profile bracket ....................... 4 Install the PCIe card .......................... -
Page 4: Introduction
RAID. With its adjustable standoffs and multiple mounting holes, the card supports 110 mm, 80 mm, 60 mm, and 30 mm SSDs. The PEXM2SAT3422 comes with both a full-profile and low-profile bracket, and installs into x4, x8, or x16 PCIe slots. -
Page 5: Product Diagram

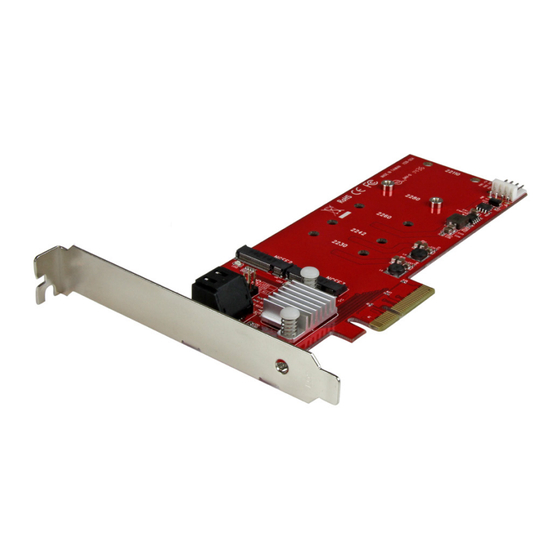

Product diagram Bracket (standard-profile pictured) 2x bracket screws 2x SATA ports PCIe x4 connector 2x M.2 SSD slots Drive installation holes 4-pin power connector (floppy small-drive power) Drive-mount standoffs Instruction manual... -
Page 6: About Led Indicators
About LED indicators LED/pin header Behavior Status LED is illuminated The drive is on and linked to the M.2 drive green LED computer. (LED2 and LED3) LED is blinking The drive is being accessed. LED is illuminated The drive is on and linked to the SATA pin header computer. -
Page 7: Hardware Installation
6. If necessary, insert a second drive. To remove a drive, use a screwdriver to remove the M.2 mounting screw that is holding the drive in place and pull the drive out of the PEXM2SAT3422. Install the low-profile bracket The PEXM2SAT3422 can be mounted in both low-profile and full-profile computer systems. -
Page 8: Install The Pcie Card
Install a driver 1. To download the latest drivers, use a Web browser and navigate to www.startech. com/PEXM2SAT3422. 2. Click the Support tab. 3. Download the driver. 4. When the download is complete, extract the contents of the compressed file that you downloaded. -
Page 9: Verify Driver Installation On A Computer Running Windows
5. Double-click the appropriate driver for the version of operating system that you’re running and follow the on-screen instructions to complete the installation. Note: You may be asked to restart your computer to complete the installation. Verify driver installation on a computer running Windows 1. -
Page 10: Prepare A Drive For Use On A Computer Running Mac Os
The drive should now appear on your desktop and be accessible in Finder. About the Port Multiplier feature If you use a port multiplier card with the PEXM2SAT3422, you can take advantage of the Port Multiplier feature and connect multiple SATA drives (up to four) to a single SATA host port. -
Page 11: Use The Marvell Storage Utility To Create A Virtual Disk
4. Use the arrow keys to navigate the list of free physical disks. 5. Press the Spacebar to select the drives that will be part of the RAID set. When you select a disk, an asterisk appears to the left of the disk label. Note: To clear a disk selection, use the arrow keys to navigate to the disk that you don’t want to include in the RAID set and press the Spacebar. -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
