StarTech.com PR12GIP-NETWORK-CARD Quick Start Manual

1-Port PCIe 2.5GBase-T Ethernet PoE Network Adapter Card - Intel
Product ID
PR12GIP-NETWORK-CARD
1
2
3

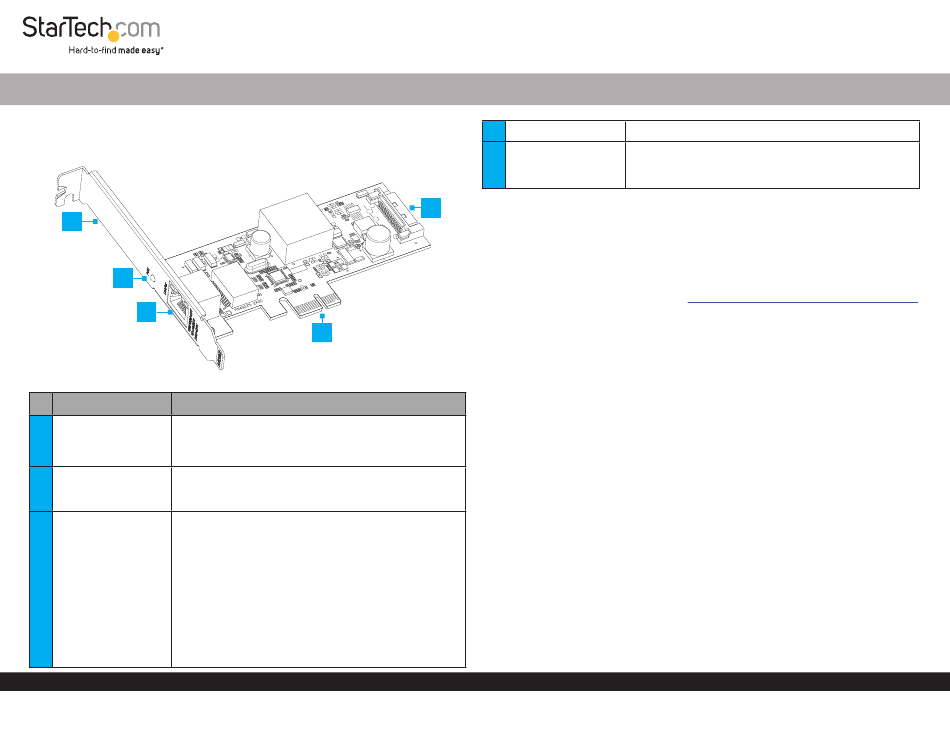

Port/LED/Connector
• Secures the card to the Host Computer Case
1 • The Full Profile Bracket comes pre-installed
Bracket
• The Low Profile Bracket is included
• Solid Green: PoE has been negotiated and power is
Power Over Ethernet
2 being supplied to the Powered Device
(PoE) LED Indicator
• Off: No power output has been negotiated
• Connect an Ethernet Cable to the Network Card
• Supports 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps
• Supports IEEE 802.3at and IEEE 802.3af
• Right LED Indicator is Link Speed
• Solid Green: 2.5Gbps
3 Ethernet Port
• Solid Amber: 1Gbps
• Off: 10/100Mbps
• Left LED Indicator is Link Status
• Solid Green: Active link
• Flashing Green: Activity
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
5
4
Function
Sunrich Technology(R&D)Ltd.
4 PCIe 2.0 x1 Connector • Insert into a PCI Express Slot on the Host Computer
• Connect SATA Power from the Host Computer's
SATA Power
Power Supply
5
Connector
• Required to enable Power over Ethernet (PoE)
Package Contents
• Network Card x 1
• Low Profile Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit:
• Host Computer with an available PCI Express 2.0 or greater slot (x1, x4, x8, or x16)
Installation
Install the PCI Express Card
WARNING! Static Electricity can severely damage PCI Express Cards. Ensure that
you are adequately Grounded before you open your Host Computer Case or touch
the PCI Express Card. You should wear an Anti-Static Strap or use an Anti-Static
Mat when installing any Host Computer component. If an Anti-Static Strap isn't
available, discharge any built-up static electricity by touching a large Grounded
Metal Surface for several seconds. Only handle the PCI Express Card by its edges and
don't touch the gold connectors.
1. Turn off the Host Computer and any Peripheral Devices that are connected to it
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the back of the Host Computer.
3. Disconnect any Peripheral Devices that are connected to the Host Computer.
4. Remove the Cover from the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details
about doing this safely.
5. Locate an open PCI Express Slot and remove the corresponding Slot Cover Plate
from the back of the Host Computer Case.
Quick-Start Guide
www.StarTech.com/PR12GIP-NETWORK-CARD
Manual Revision: October 12, 2023
