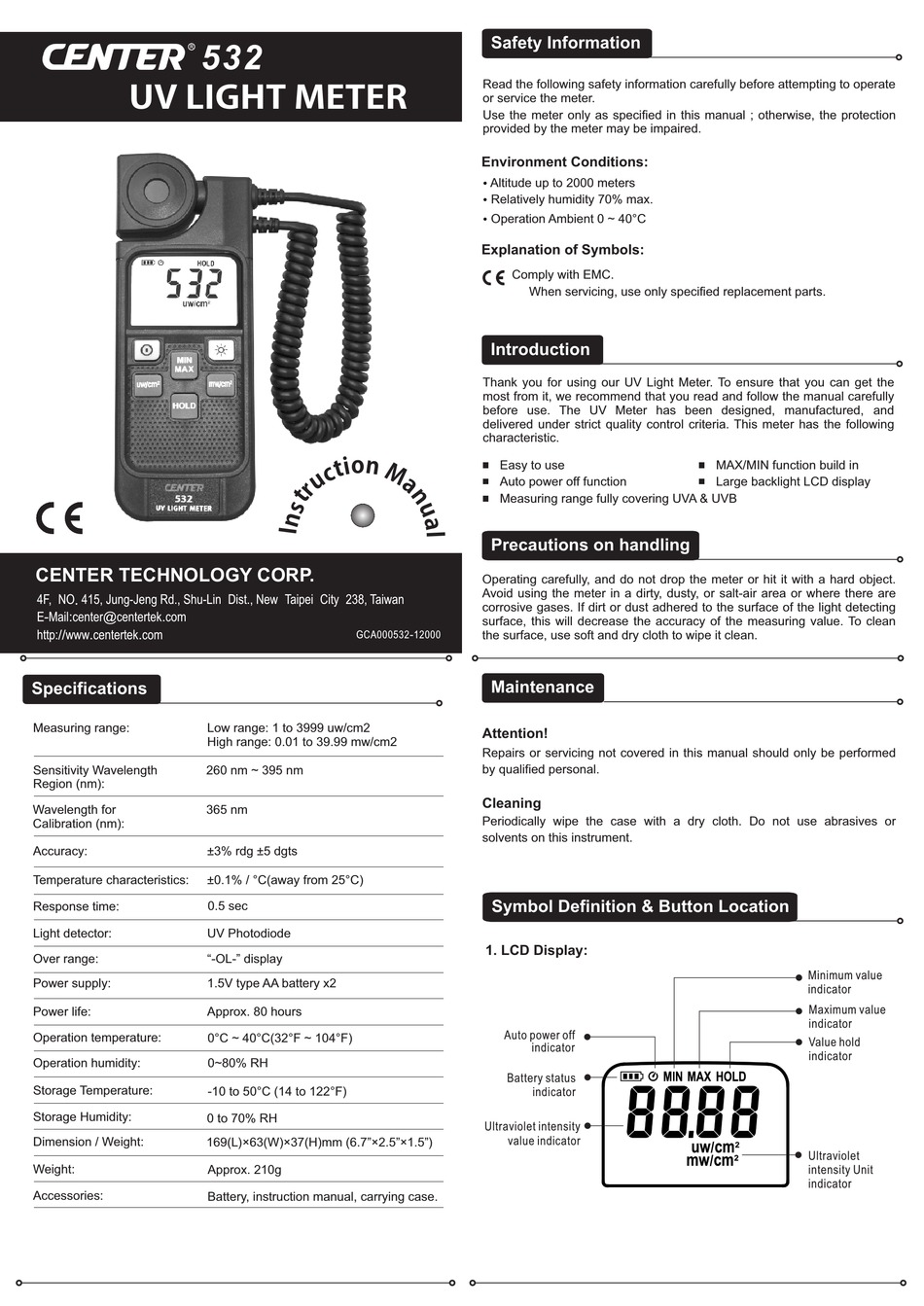

Center 532 Quick Manual

532
UV
LIGHT
METER
CENTER TECHNOLOGY CORP.
4F, NO.415, Jung-Jeng Rd., Shu-Lin Dist., New Taipei City 238, Taiwan
E-Mail:center@centertek.com
http://www.centertek.com

Specifications

Measuring range:
Sensitivity Wavelength
Region (nm):
Wavelength for
Calibration (nm):
Accuracy:
Temperature characteristics:
Response time:
Light detector:
Over range:
Power supply:
Power life:
Operation temperature:
Operation humidity:
Storage Temperature:
Storage Humidity:
Dimension / Weight:
Weight:
Accessories:
GCA000532-12000
Low range: 1 to 3999 uw/cm2
High range: 0.01 to 39.99 mw/cm2
260 nm ~ 395 nm
365 nm
±3% rdg ±5 dgts
±0.1% / °C(away from 25°C)
0.5 sec
UV Photodiode
"-OL-" display
1.5V type AA battery x2
Approx. 80 hours
0°C ~ 40°C(32°F ~ 104°F)
0~80% RH
-10 to 50°C (14 to 122°F)
0 to 70% RH
169(L)×63(W)×37(H)mm (6.7"×2.5"×1.5")
Approx. 210g
Battery, instruction manual, carrying case.

Safety Information

Read the following safety information carefully before attempting to operate
or service the meter.
Use the meter only as specified in this manual ; otherwise, the protection
provided by the meter may be impaired.
Environment Conditions:
Altitude up to 2000 meters
Ÿ
Relatively humidity 70% max.
Ÿ
Operation Ambient 0 ~ 40°C
Ÿ
Explanation of Symbols:
Comply with EMC.
When servicing, use only specified replacement parts.

Introduction

Thank you for using our UV Light Meter. To ensure that you can get the
most from it, we recommend that you read and follow the manual carefully
before use. The UV Meter has been designed, manufactured, and
delivered under strict quality control criteria. This meter has the following
characteristic.
Easy to use
Auto power off function
Measuring range fully covering UVA & UVB

Precautions on handling

Operating carefully, and do not drop the meter or hit it with a hard object.
Avoid using the meter in a dirty, dusty, or salt-air area or where there are
corrosive gases. If dirt or dust adhered to the surface of the light detecting
surface, this will decrease the accuracy of the measuring value. To clean
the surface, use soft and dry cloth to wipe it clean.

Maintenance

Attention!
Repairs or servicing not covered in this manual should only be performed
by qualified personal.
Cleaning
Periodically wipe the case with a dry cloth. Do not use abrasives or
solvents on this instrument.
Symbol Definition & Button Location
1. LCD Display:
Auto power off
indicator
Battery status
indicator
Ultraviolet intensity
value indicator
MAX/MIN function build in
Large backlight LCD display
Minimum value
indicator
Maximum value
indicator
Value hold
indicator
Ultraviolet
intensity Unit
indicator
