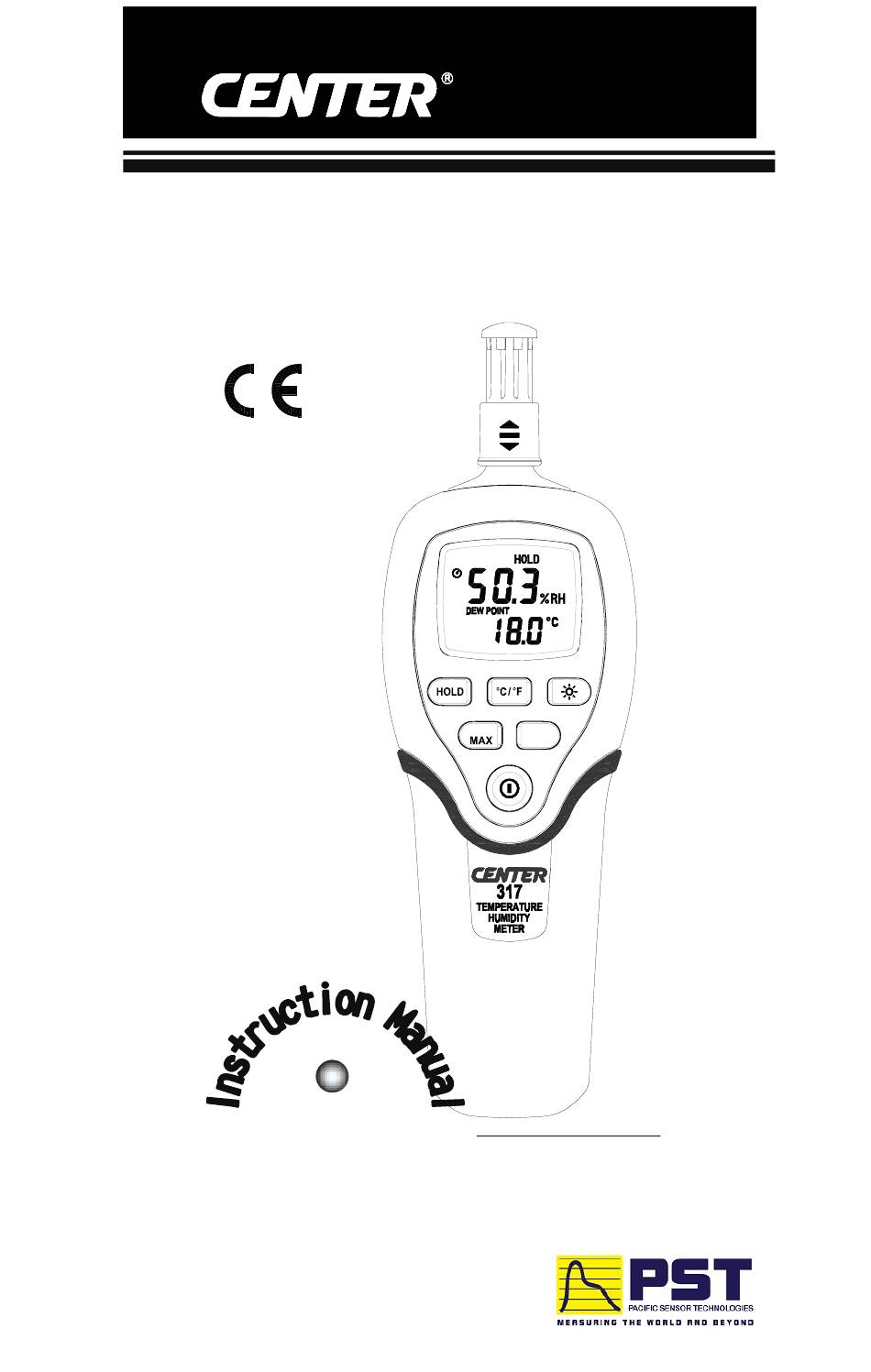

- Page 1 HUMIDITY TEMPERATURE METER CENTER Technology Corporation...
- Page 2 C O N T E N T S TITLE PAGE 1. Introduction ........1 2. Specifications ........1 3. Symbol Definition and Button Location ..........2 4. Operating Instructions ...... 3 4.1 Power-Up ........3 4.2 Selecting the Temperature Units ..3 4.3 Data-Hold Operation.......

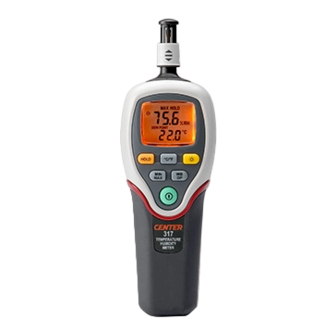

- Page 3 Humidity Temperature Meter 1. Introduction: This instrument is a digital meter that measures relative humidity and temperature. Through the easy to use control, the meter can show the ambient temperature, the wet bulb temperature and the dew point temperature. 2. Specifications: Display: Dual display.
- Page 4 Humidity Temperature Meter Battery Life: 200-hours continuous (with alkaline battery) Dimension: 204x65x45 mm; 8.0x2.6x1.7 inches Weight: Approx. 230g Accessories: Batteries, instruction manual, carrying case 3. Symbols and Buttons: Sensor ON/OFF button Dust cover °C/°F select button LCD display Backlight HOLD button DP/WB/Ambient Temperature button ○...
- Page 5 Humidity Temperature Meter LCD Definition: Minimum Indication Maximum Indication Low battery Indication Data Hold Indication Auto power off Reading Indication Indication Unit Indication Dew point & Wet bulb temperature Indication Unit Indication Reading Indication 4. Operation Instructions: 4.1 Power-Up: Press the ○ button to turn the Humidity/Temperature meter ON or OFF.
- Page 6 Humidity Temperature Meter 4.5 MAX/MIN Operation: Pressing the MAX/MIN button places the meter in the MAX/MIN mode. Under this mode the maximum value and minimum value are kept in the memory simultaneously and updated with every new data reading. Pressing the MAX/MIN button will display the MAX indicator and the Maximum value on the display.
- Page 7 Humidity Temperature Meter 4.9 Battery Replacement: 4 “AA” size alkaline batteries Battery Fig.1 Battery Compartment cover screw 1. Back out the screw at the bottom of the battery door and lift the door away from the Meter. 2. Remove the four AA batteries from the compartment.
- Page 8 CENTER TECHNOLOGY CORP. 4 / F NO. 415, Jung-Jeng Rd., 238 Shu-Lin, Taipei, Taiwan E-Mail : center@centertek.com http : / / www.centertek.com GCA000317-02000 Distributor in Australia Pacific Sensor Technologies Pty Ltd Unit 4, 3 Neutron Place Rowville, VIC 3178 Australia 1300 662 720 | sales@pacificsensortech.com.au...
