- Page 1 THERMO RECORDER INTV 3 Sec 1 Sec Erase SELECT MEMORY Data Logger: 64,000 Records SE-345...
-
Page 2: Table Of Contents
CONTENT Page I. SAFETY INFORMATION --------------------- 2 II. FEATURE ----------------------------------------- 2 III. GENERAL SPECIFICATION ---------------- 3 IV. NAME AND FUNCTION ---------------------- 4 V. OPERATION INSTRUCTIONS 5.1 Setup ----------------------------------------- 6 5.2 Record Temperature--------------------- 8 5.3 Erase Memory ----------------------------- 9 5.4 Download Memory ----------------------- 9 5.5 Replace Battery -------------------------- 10 VI. -
Page 3: Safety Information
Thermo Recorder SAFETY INFORMATION • Read the following safety information carefully before attempting to operate or service the meter. • Only qualified personnel should perform repairs or servicing not covered in this manual. • Periodically wipe the case with a dry cloth. Do not use abrasives or solvents on this instrument. -
Page 4: General Specification
Thermo Recorder III. GENERAL SPECIFICATION Measurement Range: -30°C ~ 70°C ; -22°F ~ 158°F Accuracy: ±0.7°C(± 1.3°F) Resolution: 0.1°C / 0.1°F Data Logger: 64,000 Records Storage Condition: -30°C ~ 70°C Operating Condition: -30°C ~ 70°C Response time: 20minutes to 95% under slow air. Battery: Size AAA 1.5V x 2 (alkaline battery) Battery Life: more than1 year (1 minute interval @ 25°C) Dimension: Recorder: 92 x 55 x 21mm... -
Page 5: Name And Function

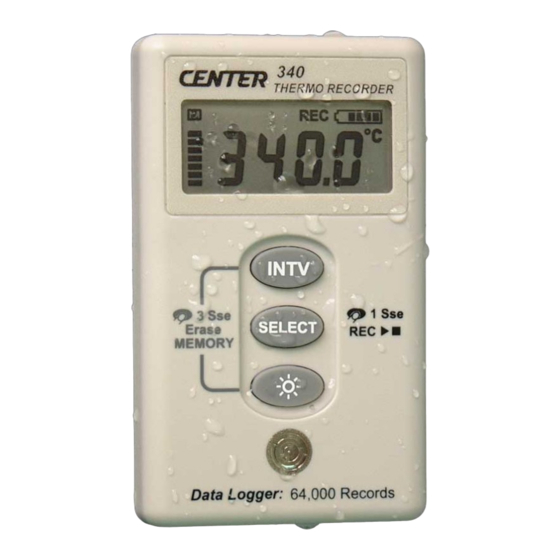

Thermo Recorder IV. NAME AND FUNCTION 1.5V X 2 SIZE AAA / IEC LR03 INTV PLEASE READ MANUAL FOR SAFET 3 Sec 1 Sec Erase SELECT MEMORY Data Logger: 64,000 Records LCD Display Select Button ○ ○ INTV Setup Button Back Light Button ○... - Page 6 Thermo Recorder Communication Recording Record Interval Symbol Status Symbol Battery Status Memory Temperature Status Unit Display Temperature Reading PLEASE READ MANUAL FOR SAFET RS-232 Jack ○ Slip Proof Rubber ○ Infrared RS232 Port ○...
-
Page 7: Operation Instructions
Thermo Recorder V. OPERATION INSTRUCTIONS 5.1 Setup Date And Time Setup: 1. Hold buttons simultaneously for 3 INTV SELECT seconds to enter date and time setup mode. 2. Press to select year, month, day, hour and INTV minute setup. 3. Press to set value on year, month, day, hour SELECT and minute. - Page 8 Thermo Recorder Setup Recording Interval and Temperature Unit: 1. Press and hold for 2 seconds to recording INTV interval setup mode.(P-1) 2. Press to select record interval. Options are SELECT 1,2,5,10,15,20,30 seconds and 1,2,5,10,20,30,60 minutes. 3. Press to finish record interval setup and go to INTV temperature unit setup mode.
-
Page 9: Record Temperature
Thermo Recorder 5.2 Temperature Recording 1. Press and hold SELECT 1 second to start recording and LCD will display INTV “REC”. 3 Sec 1 Sec Erase MEMORY 2. To stop recording, press and hold for 1 SELECT second again. The “REC” symbol will disappear. 3. -
Page 10: Erase Memory
Thermo Recorder 4. During temperature recording, recorder will turn on the LCD for 2 seconds and then go into power saving mode during each record interval. 5.3 Erase Memory 1. Press and hold INTV simultaneously for 3 seconds to clear memory. 3 Sec 1 Sec Erase... -
Page 11: Replace Battery
Thermo Recorder 3. Click “DataLogger” from SE-345 menu to download data. Note: 1. Refer to page 11(6.1) about installing SE-345 software. 2. Refer to page 12(6.2) about software introduction. 5.5 Replace Battery 1. Please stop data recording before replacing battery. 2. -
Page 12: Software
Thermo Recorder VI. Software 6.1 Installation • System Required: Windows 95/98/ME/NT 4.0. /2000/XP • Minimum Hardware Required: PC system with Pentium 233MHz or higher. 64 MB RAM. 4X CD-ROM Drive or higher. Recommended resolution 1024X768(or 800X600). At least 15 MB byte of free hard disk space available to install SE-345. -
Page 13: Introduction
Thermo Recorder 6.2 Introduction • Main Screen Main menu Tool menu DataLogger window Data Set List Data List Graph Max/Min/Avg display • Main Menu File : Open - Open files saved previously from the disk. Save - Save the data to the disk. Print - Print the data (graph or list). - Page 14 Thermo Recorder View : Open LCD display window. Window : Arrange windows Help : On line help. • DataLogger When you have the Temperature Recorder connected to PC. Start SE345 software and select "DataLogger" from main menu or click from tool bar to load recorded data from the logger.
- Page 15 Thermo Recorder bar. Memory Status Erase Data Adjust Time Select Interval Select Unit Note: After you select interval or unit , you have to click OK button to make this change valid. • Tutorial Quick Start (1) Recording real time data from PC. 1.Put the Temperature Recorder on the Communication Base, and connect it to a PC serial port with the SE-120 cable.
- Page 16 Thermo Recorder (2) How to save the recorded real time data to a file ? 1. Select the window you want to save by click it, then choose File|Save from main menu or click from the tool bar. 2. There will be a save dialog window for you to assign the file name and file type to save.
- Page 17 Thermo Recorder (3)How to download the recorded data from the memory of Temperature Recorder and save it to a file ? 1. Connect the Communication Base to PC 2. Put the Temperature Recorder on the Communication Base. 3. Start SE345 program. 4.
- Page 18 CENTER TECHNOLOGY CORP. 4 / F NO. 415, Jung-Jeng Rd., 238 Shu-Lin, Taipei, Taiwan E-Mail : center@centertek.com http : / / www.centertek.com 340-00 Distributor in Australia Pacific Sensor Technologies Pty Ltd Unit 4, 3 Neutron Place Rowville, VIC 3178 Australia 1300 662 720 | sales@pacificsensortech.com.au...
