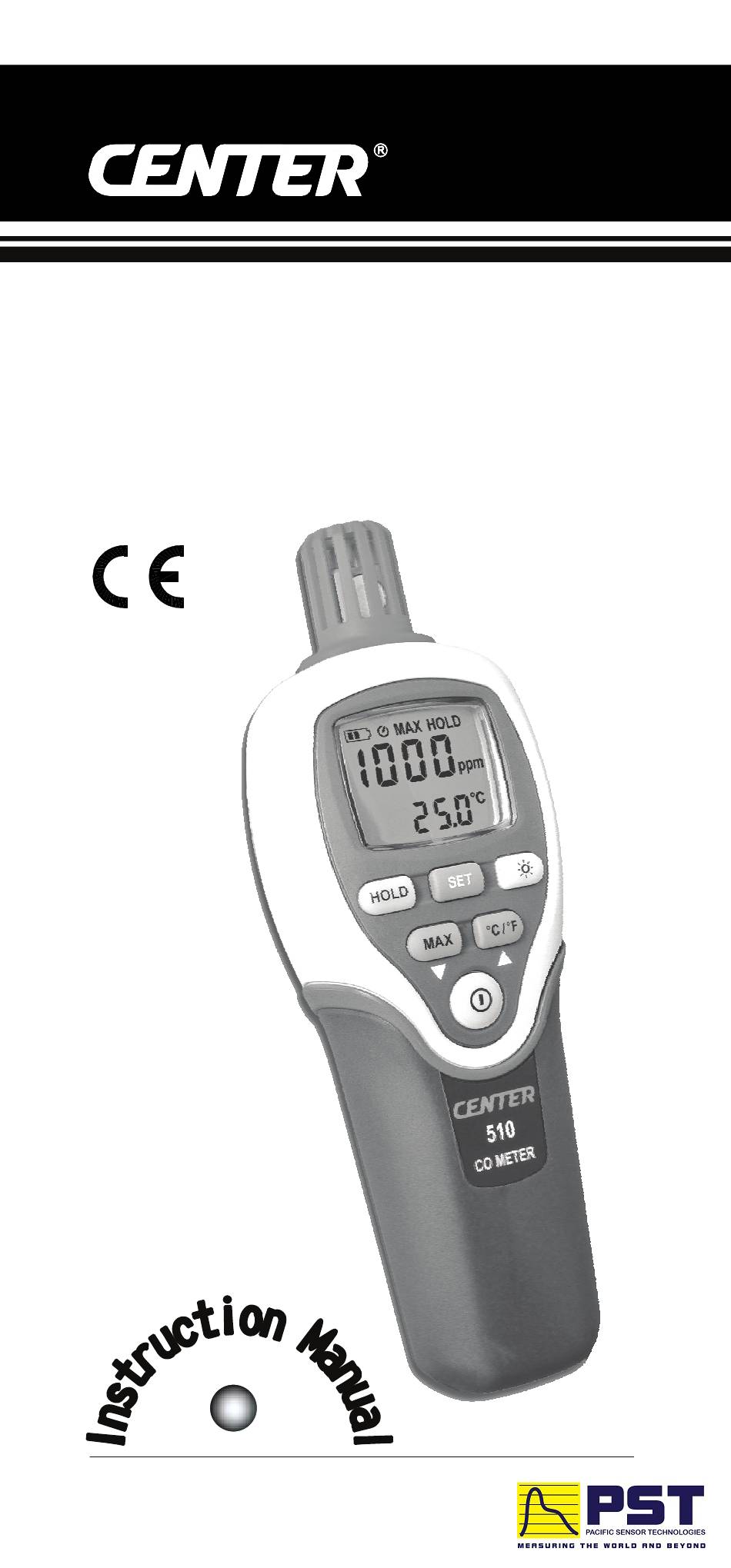

- Page 1 CARBON MONOXIDE METER...
- Page 2 510-00 2015/07...
-
Page 3: Table Of Contents
C O N T E N T S TITLE PAGE General Information ......1 1.1 Safety Information ......1 1.2 Introduction ........2 2. Specifications ........3 3. Symbol Definition and Button Location ..........5 4. Operating Instructions ...... 7 4.1 Power-Up ........ -
Page 4: General Information
Carbon Monoxide Meter 1. General Information: Thank you for purchasing Carbon Monoxide (CO) meter. Read though the instruction manual before operation for correct and safe usage. Please store and retain this instruction manual for future reference. Safety Information - Read First: ... -
Page 5: Introduction
Carbon Monoxide Meter Explanation of Symbols: Attention! Refer to operation Instructions. 1.2 Introduction: This instrument is a digital meter that measures CO concentration and Temperature. Through the easy to use control, the meter detects the presence of Carbon Monoxide (CO) and measures concentrations between 0-1000 parts per million (ppm). -
Page 6: Specifications
Carbon Monoxide Meter begins monitoring, and shows a reading on the display. If the meter does not pass the self-test, the LCD shows “Err”, and does not take CO measurement. 2. Specifications: Display: Dual display. Measurement Range: Carbon Monoxide: 0~1000 ppm. ... - Page 7 Carbon Monoxide Meter Operating Temperature & Humidity: 0°C~50°C(32°F~122°F);10~90%RH Storage Temperature & Humidity: -20°C~70°C(-4°F~158°F);0~80%RH High CO Alarm: Audible alert when CO level rises above programmed limit. (default is 35 ppm.) Sample Rate: 2 times per second Battery: 4 each AA/R6 batteries Battery Life: 200-hours continuous (with alkaline battery)
-
Page 8: Symbol Definition And Button Location
Carbon Monoxide Meter 3. Symbols and Buttons: Sensor LCD Display HOLD Button MAX Button ON/OFF Button SET Alarm Button Backlight Button °C/°F Temperature Button Battery Cover... - Page 9 Carbon Monoxide Meter LCD Definition: Battery Capacity Indication Auto Power Off Indication Maximum Indication Data Hold Indication CO Reading Indication Beeper Off Indication Alarm Level Unit Indication Unit Indication Temperature Reading Indication SET Alarm Alarm Indication...
-
Page 10: Operating Instructions
Carbon Monoxide Meter 4. Operation Instructions: 4.1 Power-Up: Press the button to turn ON or OFF. After Self-Test, if the meter detects between 0-3 ppm of CO, the LCD readings start decreasing from the initial value to zero. The LCD shows readings when the meter detects more than 3 ppm of CO. -
Page 11: Max Operation
Carbon Monoxide Meter to decrease the value. Release the button, the CO high alarm point setting completion. 4.5 MAX Operation: Pressing the button places the meter in the MAX mode. Under this mode the maximum value is kept in the memory simultaneously and updated with every new data reading. -
Page 12: Low Battery Condition
Carbon Monoxide Meter The meter will turn back light off if there is no push button for 30 seconds. 4.8 Low Battery Condition: When the battery voltage is under proper operation requirement, the “ ” symbol will show and flash on the LCD and the battery needs to be replaced. -
Page 13: Calibration Or Service
4.11 Calibration or Service The meter should be calibrated once a year by an authorized service center. During normal use, the meter does not require adjustment. Any required adjustments are made at calibration. To replace the sensor, contact an authorized service center. - Page 14 CENTER TECHNOLOGY CORP. 4F, NO.415, Jung-Jeng Rd., Shu-Lin Dist., New Taipei City 238, Taiwan TEL: 886-2-26763926 FAX: 886-2-26763925 E-mail: center@centertek.com http://www.centertek.com GCA000510-02000 Distributor in Australia Pacific Sensor Technologies Pty Ltd Unit 4, 3 Neutron Place Rowville, VIC 3178 Australia 1300 662 720 | sales@pacificsensortech.com.au...
