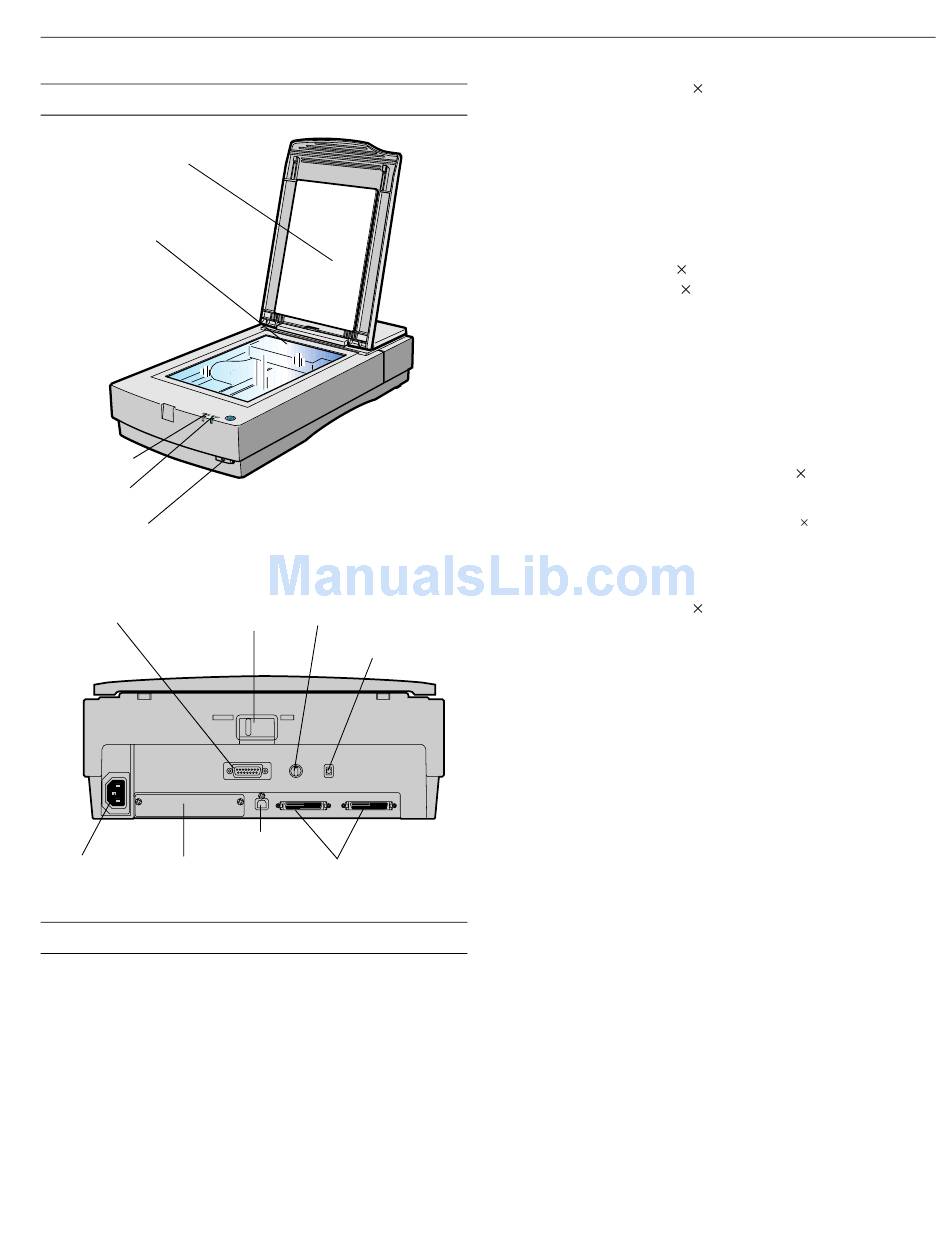

Scanner Parts

document cover
carriage (in the home
position)
ERROR light
READY light
OPERATE button
OPTION connector
transportation lock
USB connector
AC inlet
option interface slot

Scanner Specifications

The EPSON Expression 1600 is a 36-bit professional graphics
scanner designed to deliver superior results for artists, graphics
professionals, and business graphics users.
Basic Specifications
Scanner type
Flatbed, color
Photoelectric
device
Color CCD line sensor
SCSI ID switch
SCSI terminator switch
SCSI interface connectors
Effective pixels
13600
scaling
Color depth
36-bit internal/36-bit external
Grayscale depth
12-bit internal/12-bit external
Optical density
3.3 Dmax
Maximum
document size
US letter size or A4
(8.5
[216
Up to legal size if using the automatic
document feeder
(The reading area can be specified from
software.)
Optical resolution 1600 dpi
Maximum
hardware
resolution*
1600 dpi (main scan)
(sub scan)
*
The maximum hardware resolution of 1600 3200 dpi is achieved
using EPSON's Micro Step
Maximum
software
resolution
12800
Speed (1600 dpi,
draft mode)
Color: 9.2 ms/line (approx.)
Grayscale: 3.1 ms/line (approx.)
Line Art: 3.1 ms/line (approx.)
Color separation
RGB color filters on CCD
Command level
ESC/I-B8
Reading sequence Monochrome: One-pass scanning
Color byte sequence: One-pass scanning
(R, G, B)
Color line sequence: One-pass scanning
(R, G, B)
Zoom
50% to 200% in 1% increments
Pixel depth
Color: 12 bits per pixel input, 1 to 12 bits
per pixel output
Grayscale: 12 bits per pixel input, 12 bits
per pixel output (8 bits per pixel output
can be selected in TWAIN Pro)
Line Art: 1 bit per pixel
Brightness
7 levels
Line art settings
Fixed threshold
TET (Text Enhancement Technology,
enable/disable selectable)
1/00
EPSON Expression 1600
18720 pixels at 1600 dpi, 100%
11.7 inches
297 mm])
3200 dpi
™
Drive technology.
12800 dpi with interpolation
EPSON Expression 1600
- 2
