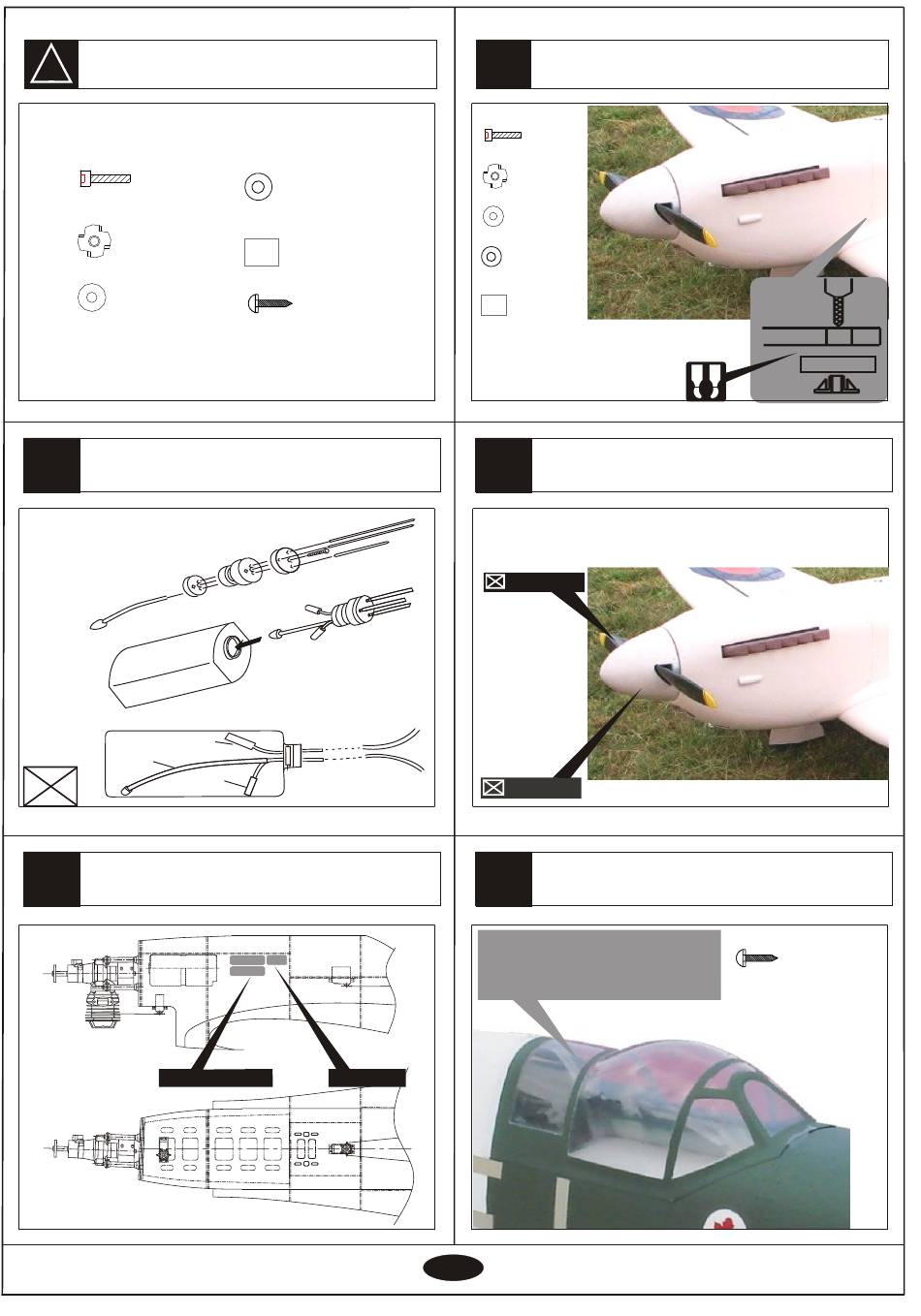

Radio Equipment; Install The Canopy - CYmodel Spitfire MK IX Instruction Manual

Accessory list for this page.
!
3X16mm screw
- - - - - 6
3mm Bind nut
- - - - - 6
3mm Washer
- - - - - 6
26
Assembly of the full tank
After confirming the
position(see front of
fuel tank).
Insert and tighten
the screw.
Air pressure line
Fuel pipe
Fuel supply line
27

Radio Equipment

Battery/Ignition Battery/Ignition
3mm rubber band
- - - - 6
6mm Plywood
- - - - 6
2.3X10 Tp screw
- - - - - 6
Battery Battery
Receiver Receiver
28
Install the thr cowling
3X16mm screw
- - - - - 6
3mm Bind nut
- - - - - 6
3mm Washer
- - - - - 6
3mm rubber band
- - - - 6
6mm Plywood
- - - - 6
29
Install the thr cowling
Propeller Propeller
Spinner Spinner
30

Install the canopy

Cut away the surplus pats
of canopy,care fully along
the shaded line.
8 8
3mm 3mm
Cowling
Plywood
A B
2.3X10 Tp screw
- - - - - 6
