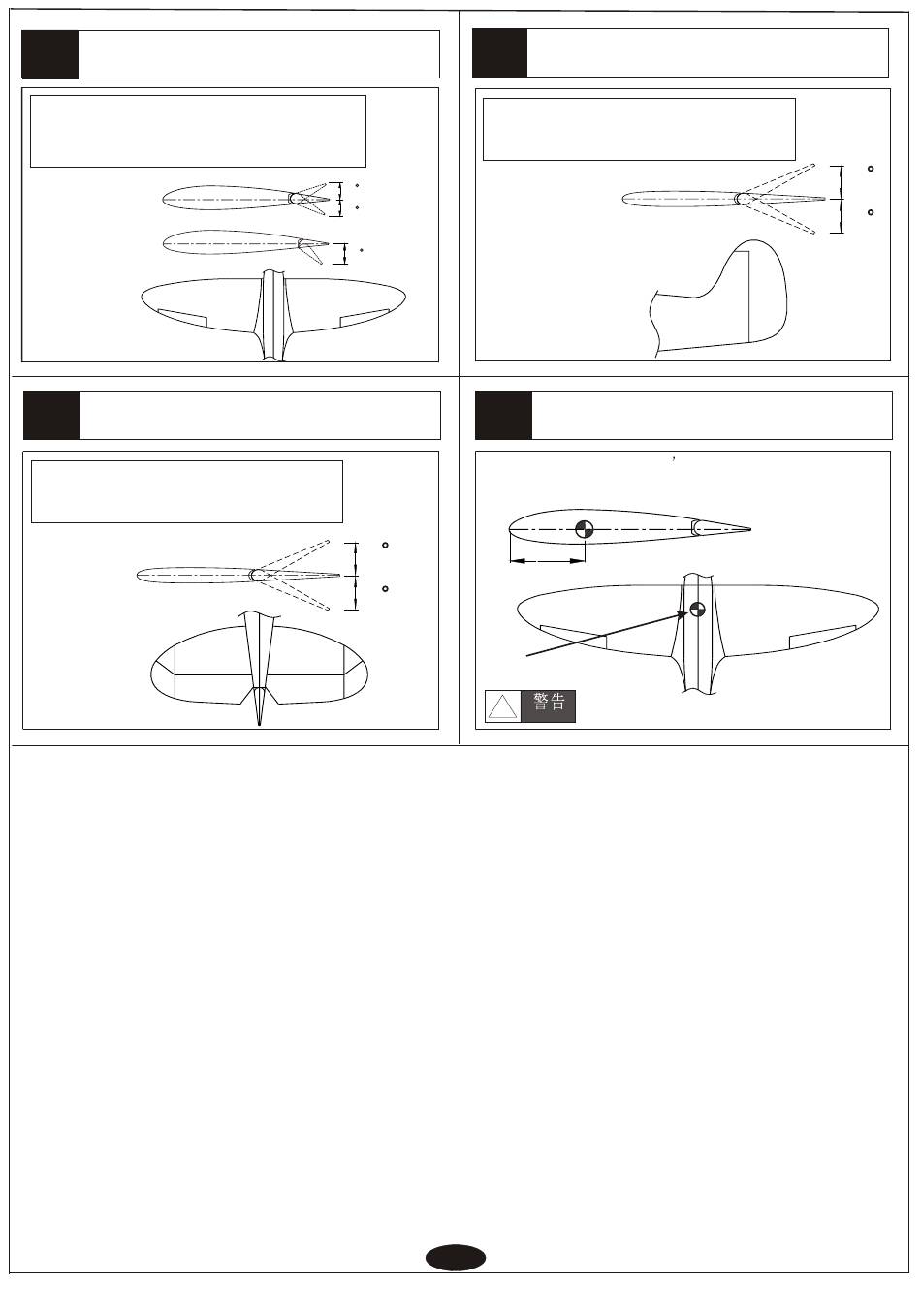

Adjustment.
Adjust the travel of each control surface to the
values in the diagrams.
These values fit general flight capabilities.
Readjust according to your needs and flight level.
AILERON
Side view
Flap
Top view
37
Adjustment.
Adjust the travel of each control surface to the
values in the diagrams.
These values fit general flight capabilities.
Readjust according to your needs and flight level.
ELEVATOR
Side view
Top view
38
Adjust the travel of each control surface to the
values in the diagrams.
These values fit general flight capabilities.
Readjust according to your needs and flight level.
Rudder
45
45
Side view
45
Top view
39
Never fly before checking the Cg s required position.
In order to obtain the CG specified ,reposition the
receiver and battery.
45
150-160mm 150-160mm
45
CG
!
1 0 1 0
Adjustment
Adjustment.
NEVER fly the model
without well balancing.
Warning!
45
45
