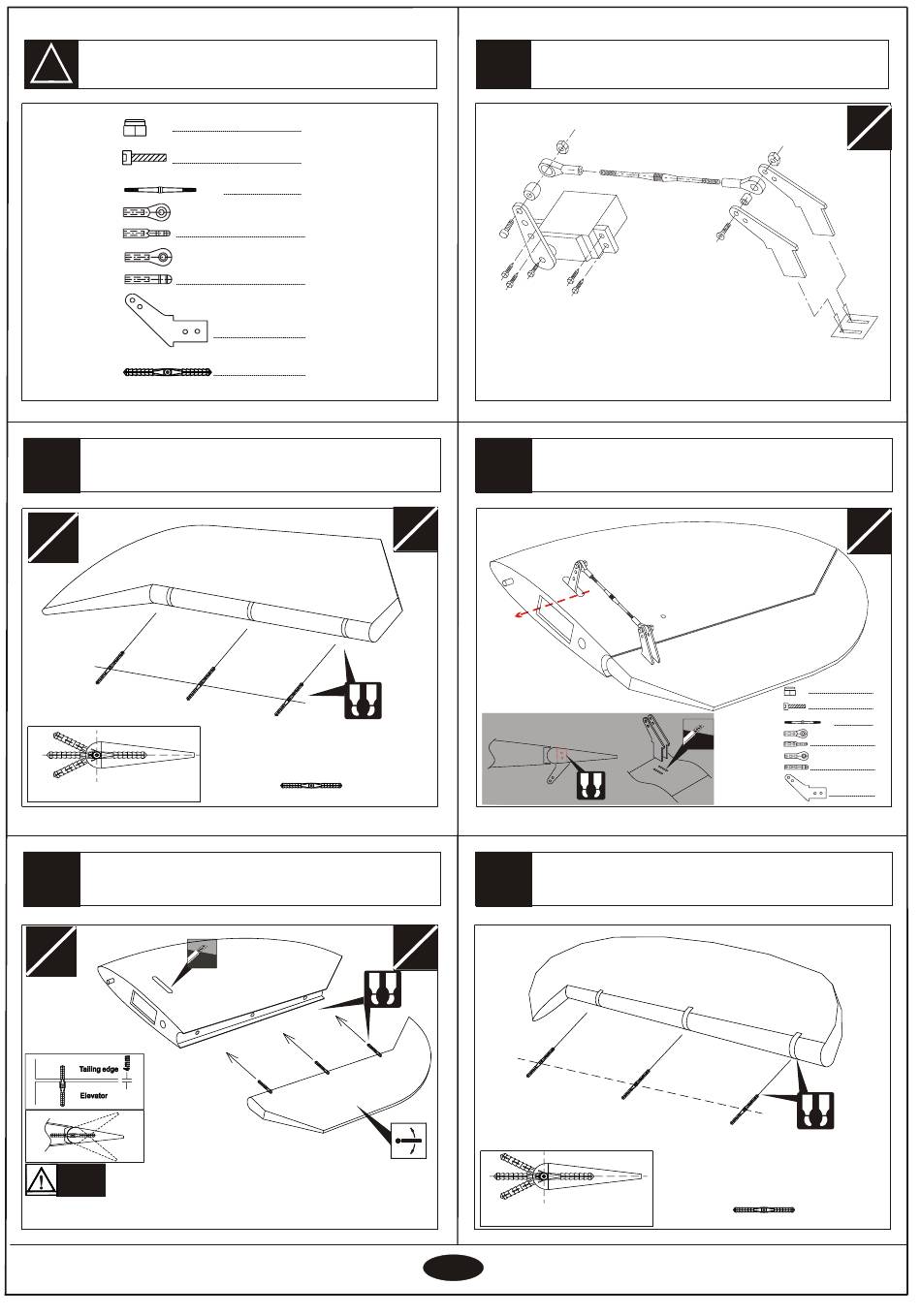

Install The Elevator Servos; Install The Rudder - CYmodel Spitfire MK IX Instruction Manual

Accessory list for this page.
!
3mm Lock nut
3X16 Screw
2.5X85mm rod
Rod adjuster
Rod adjuster
11
Install the elevator
L L
R R
make sure hinges are
mounted in the same line
12
Install the elevator
L L
Bottom view
R R
Warning! Warning!
Securely glue together. If coming off during flights,you'll
lose control of your airplane which leads to accidents!
4
4
2
2
2
HORN
4
Hinge
9
A B
Hinge
- - - - - - - - 6
A B
13

Install the elevator servos

14 14
Install the elevator servos
L L
R R
Servo line
15

Install the rudder

L L
R R
make sure hinges are
mounted in the same line
5 5
A B
Hinge
L L
R R
L L
R R
3mm Lock nut
4
3X16 Screw
4
2.5X85mm rod
2
Rod adjuster
2
Rod adjuster
2
HORN
4
A B
- - - - - - - 3
