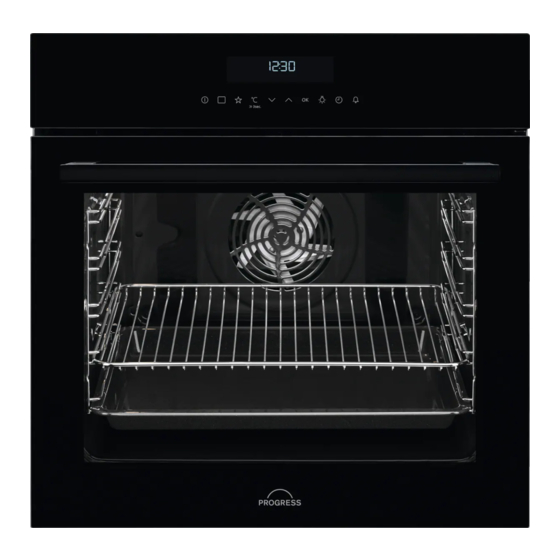

Progress PBP43103B User Manual

Hide thumbs Also See for PBP43103B:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Oven
PBP43103B
PBP43103X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBP43103B and is the answer not in the manual?

Questions and answers

Related Manuals for Progress PBP43103B

Summary of Contents for Progress PBP43103B

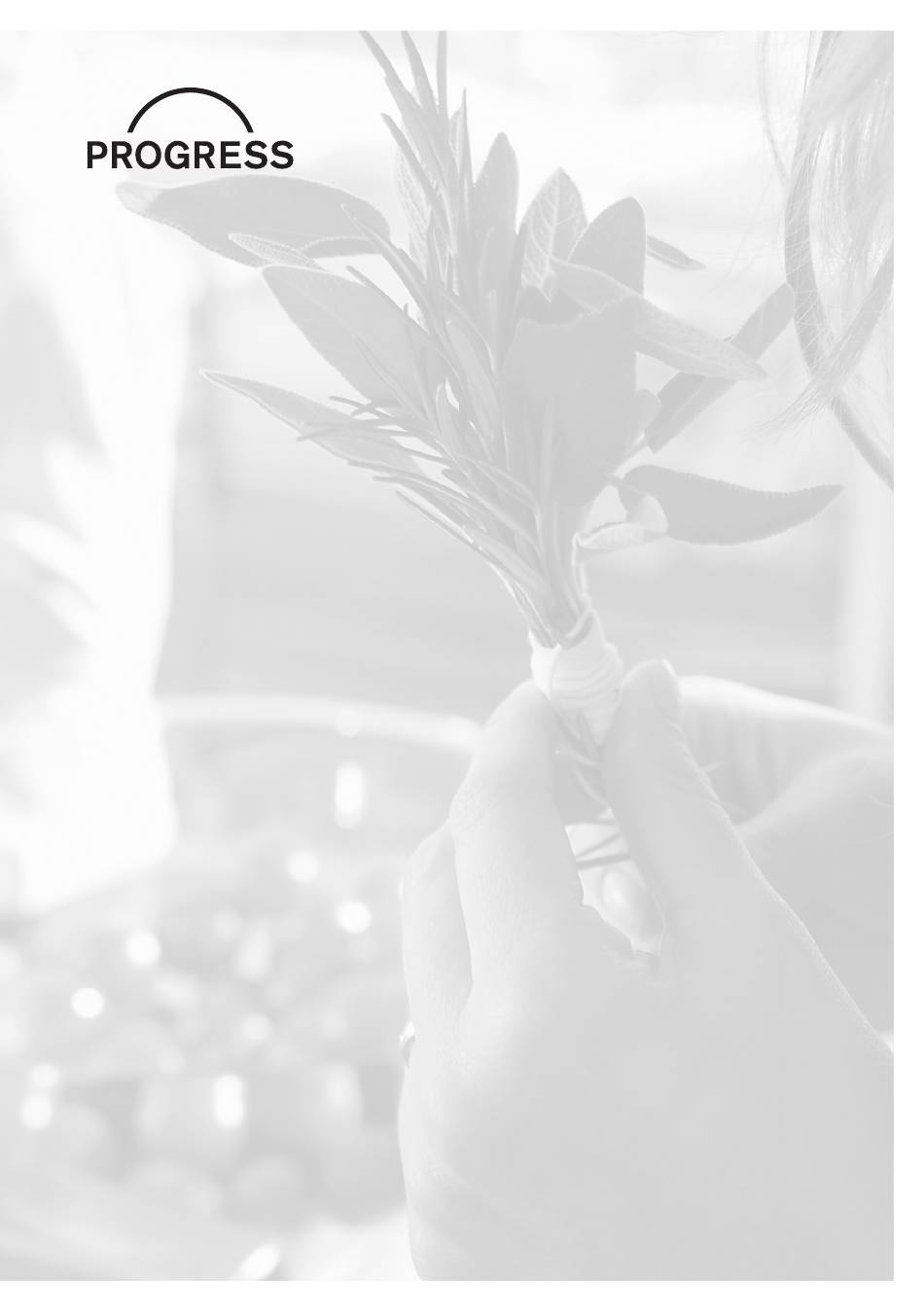

  • Page 1 User Manual Oven PBP43103B PBP43103X...

  • Page 2: Table Of Contents

    2 Progress CONTENTS Safety information Automatic programmes Safety instructions Using the accessories Installation Additional functions Product description Hints and tips Control panel Care and cleaning Before first use Troubleshooting Daily use Energy efficiency Clock functions Environmental concerns Subject to change without notice.

  • Page 3: Safety Instructions

    Progress 3 General Safety Only a qualified person must install this appliance and • replace the cable. Do not use the appliance before installing it in the built-in • structure. Disconnect the appliance from the power supply before • carrying out any maintenance.
  • Page 4 4 Progress • The appliance is equipped with an electrical ratings of the mains power electric cooling system. It must be supply. operated with the electric power supply. • Always use a correctly installed shockproof socket. • Do not use multi-plug adapters and...
  • Page 5 Progress 5 For the section of the cable refer to the WARNING! Risk of damage to total power on the rating plate. You can the appliance. also refer to the table: • To prevent damage or discoloration to the enamel: Total power (W) Section of the ca‐...
  • Page 6 6 Progress • Clean regularly the appliance to maximum temperature operation to prevent the deterioration of the surface a well ventilated area. material. • Small pets can also be highly sensitive • Clean the appliance with a moist soft to the localized temperature changes in cloth.

  • Page 7: Installation

    Progress 7 • Cut off the mains electrical cable close • Remove the door catch to prevent to the appliance and dispose of it. children or pets from becoming trapped in the appliance. INSTALLATION Building in WARNING! Refer to Safety chapters.

  • Page 8: Product Description

    8 Progress Securing the oven to the cabinet PRODUCT DESCRIPTION General overview Control panel Electronic programmer Heating element Lamp Shelf support, removable Shelf positions Accessories For cakes and biscuits. To bake and roast or as a pan to collect fat.

  • Page 9: Control Panel

    Progress 9 CONTROL PANEL Electronic programmer Use the sensor fields to operate the oven. Sensor Function Description Field Display Shows the current settings of the oven. ON / OFF To turn the oven on and off. Options To set a heating function or an automatic pro‐...
  • Page 10 10 Progress Display A. Oven function symbol B. Temperature / time of day display C. Clock / Residual heat display / Minute Minder D. Residual heat indicator (selected models only) E. Indicators for the clock functions F. Heat-up indicator / Fast Heat Up...

  • Page 11: Before First Use

    Progress 11 BEFORE FIRST USE Initial Cleaning WARNING! Refer to Safety chapters. Step 1 Step 2 Step 3 Clean the oven and the ac‐ Remove all accessories ex‐ cessories with a soft cloth, Place the accessories in the cept for the shelf supports warm water and a mild de‐...
  • Page 12 12 Progress Notes on: Moist Fan Baking Oven func‐ Application This function was used to comply with the tion energy efficiency class and ecodesign requirements according to EU 65/2014 To make convenience and EU 66/2014. Tests according to EN food (e.g., french fries, 60350-1.

  • Page 13: Clock Functions

    Progress 13 turned on in the settings menu, the signal Press again to change the set sounds if the Fast Heat Up is not available temperature. for the set function. Refer to "Additional 2. Press or the display shows again functions"...
  • Page 14 14 Progress signal sounds for 2 minutes. The display 4. Press or the Duration starts automatically after 5 seconds. shows flashing and the time setting . The oven turns off automatically. 5. Press to set the hours for 8. Press a sensor field to stop the signal.

  • Page 15: Automatic Programmes

    Progress 15 How to set: Count Up Timer 2. Press and hold: . When the display shows "00:00" the Count Up Timer 1. To reset the Count Up Timer press: starts to count up again. again and again until display shows...

  • Page 16: Using The Accessories

    16 Progress 6. When the set time ends, an acoustic 8. Deactivate the appliance. signal sounds for two minutes. flashes. 7. Touch a sensor field or open the oven door to stop the acoustic signal. USING THE ACCESSORIES devices. The high rim around the shelf...

  • Page 17: Additional Functions

    Progress 17 ADDITIONAL FUNCTIONS Using My Favourite Programme The display shows SAFE. The door is function locked. To turn off the Child Lock function repeat Use this function to save your favourite step 2. temperature and time settings for an oven function or programme.
  • Page 18 18 Progress Description Value to set FAULTY TONE ON / OFF DEMO MODE Activation code: 2468 BRIGHTNESS LOW / MEDIUM / HIGH SERVICE MENU RESTORE SETTINGS YES / NO 1) It is not possible to deactivate the tone of the ON / OFF sensor field.

  • Page 19: Hints And Tips

    Progress 19 HINTS AND TIPS Cooking meat and fish Refer to Safety chapters. Use a deep pan for very fatty food to prevent the oven from stains that can be permanent. Cooking recommendations Leave the meat for approximately 15 The oven has five shelf positions.
  • Page 20 20 Progress Conventional True Fan Cook‐ Cooking CAKES (min) (°C) (°C) Plum cake, 50 - 60 Bread tin preheat the empty oven Biscuits 140 - 25 - 45 Baking tray Meringues 80 - Baking tray Meringues, 2 and 80 -...
  • Page 21 Progress 21 Conventional Cook‐ True Fan Cooking BREAD AND (min) PIZZA (°C) (°C) Rye bread, 30 - 45 Bread tin preheating is not needed Bread rolls, 6 2 (2 and 25 - 40 Baking tray - 8 rolls Pizza 230 -...
  • Page 22 22 Progress Conventional True Fan Cooking Cooking MEAT (min) (°C) (°C) Pork 90 - 120 Veal 90 - 120 English roast beef, rare 50 - 60 English roast beef, medium 60 - 70 English roast beef, well done 70 - 75 Conventional Cook‐...
  • Page 23 Progress 23 Grill Preheat the empty oven. Use the fourth shelf position. Grill with the maximum temperature setting. GRILL (kg) (min) (min) 1st side 2nd side Fillet steaks, 4 pieces 12 - 15 12 - 14 Beef steak, 4 pieces...
  • Page 24 24 Progress VEAL POULTRY (°C) (min) (°C) (min) Roast veal, 1 kg 160 - 90 - 120 Turkey, 2.5 - 3.5 160 - 120 - Veal knuckle, 1.5 160 - 120 - Turkey, 4 - 6 kg 140 - 150 -...
  • Page 25 Progress 25 Set the temperature to 120 °C. (kg) (min) Roast beef 1 - 1.5 120 - 150 Roast veal 1 - 1.5 120 - 150 Defrost (kg) Defrosting Further defrost‐ time (min) ing time (min) Chicken 100 - 140...
  • Page 26 26 Progress Dehydrating - True Fan Cooking Cover trays with grease proof paper or SOFT FRUIT baking parchment. (min) For a better result, stop the oven halfway Cooking time un‐ through the drying time, open the door til simmering and let it cool down for one night to complete the drying.
  • Page 27 Progress 27 Ramekins Pizza pan Baking dish Flan base tin Ceramic Dark, non-reflective Dark, non-reflective 8 cm diame‐ Dark, non-reflective 28 cm diameter 26 cm diameter ter, 5 cm 28 cm diameter height Moist Fan Baking For the best results follow suggestions listed in the table below.
  • Page 28 28 Progress (°C) (min) Poached meat, baking tray or dripping 35 - 45 0.25 kg Shashlik, 0.5 kg baking tray or dripping 25 - 30 Cookies, 16 baking tray or dripping 20 - 30 pieces Macaroons, 24 baking tray or dripping...
  • Page 29 Progress 29 (°C) (min) Small True Fan Baking 150 - 20 - 35 cakes, Cooking tray 20 per tray Small True Fan Baking 2 and 4 150 - 20 - 35 cakes, Cooking tray 20 per tray Apple Conven‐ Wire...

  • Page 30: Care And Cleaning

    30 Progress (°C) (min) Short Conven‐ Baking 140 - 25 - 45 bread tional tray Cooking Toast, Grill Wire max. 2 - 3 mi‐ Preheat the 4 - 6 shelf nutes oven for 3 mi‐ pieces first nutes. side; 2 - 3 mi‐...
  • Page 31 Progress 31 Clean the cavity after each use. Fat accumulation or other residue may cause fire. Moisture can condense in the oven or on the door glass panels. To decrease the condensation, let the oven work for 10 minutes before cooking. Do not Everyday store the food in the oven for longer than 20 minutes.
  • Page 32 32 Progress Before the Pyrolysis: Turn off the oven and Remove all accessories ex‐ Clean the oven floor and the in‐ wait until it is cold. cept for shelf supports and ner door glass with warm wa‐ telescopic runners. ter, a soft cloth and a mild de‐...
  • Page 33 Progress 33 Step 1 Open the door fully and hold both hinges. Step 2 Lift and turn the levers fully on both hinges. Step 3 Close the oven door halfway to the first opening position. Then lift and pull forward and remove the door from its seat.

  • Page 34: Troubleshooting

    34 Progress Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and as‐...
  • Page 35 Progress 35 What to do if... Problem Possible cause Remedy You cannot activate or oper‐ The oven is not connected Check if the oven is correct‐ ate the oven. to an electrical supply or it is ly connected to the electrical connected incorrectly.

  • Page 36: Energy Efficiency

    We recommend that you write the data here: Model (MOD.) ......... Product number (PNC) ......... Serial number (S.N.) ......... ENERGY EFFICIENCY Product Information and Product Information Sheet* Supplier's name Progress PBP43103B 949498198 Model identification PBP43103X 949498197 Energy Efficiency Index 81.2...
  • Page 37 Progress 37 Energy efficiency class Energy consumption with a standard load, conventional 0.93 kWh/cycle mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle mode Number of cavities Heat source Electricity Volume 72 l Type of oven Built-In Oven PBP43103B 32.2 kg...

  • Page 38: Environmental Concerns

    38 Progress Cooking with the lamp off may turn on the lamp again but this action Turn off the lamp during cooking. Turn it will reduce the expected energy savings. on only when you need it. Deactivating the display Moist Fan Baking You can turn off the display.
  • Page 40 867368331-B-292021...
