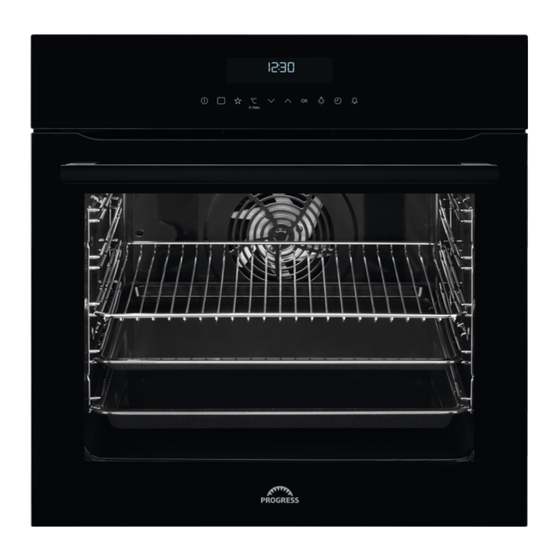

Progress PBP43102B User Manual

Hide thumbs Also See for PBP43102B:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Oven
PBP43102B
PBP43102X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBP43102B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Progress PBP43102B

Summary of Contents for Progress PBP43102B

  • Page 1 User Manual Oven PBP43102B PBP43102X...

  • Page 2: Table Of Contents

    2 Progress CONTENTS Safety information Automatic programmes Safety instructions Using the accessories Installation Additional functions Product description Hints and tips Control panel Care and cleaning Before first use Troubleshooting Daily use Energy efficiency Clock functions Subject to change without notice.
  • Page 3 Progress 3 WARNING: Keep children and pets away from the • appliance when it operates or when it cools down. Accessible parts become hot during use. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance •...

  • Page 4: Safety Instructions

    4 Progress SAFETY INSTRUCTIONS Installation Depth with open 1022 mm WARNING! Only a qualified door person must install this Ventilation opening 560x20 mm appliance. minimum size. Open‐ • Remove all the packaging. ing placed on the • Do not install or use a damaged bottom rear side appliance.
  • Page 5 Progress 5 • If the mains socket is loose, do not • Make sure that the ventilation openings connect the mains plug. are not blocked. • Do not pull the mains cable to • Do not let the appliance stay disconnect the appliance.
  • Page 6 6 Progress • This appliance is for cooking purposes with the product) particularly any only. It must not be used for other non-stick pots, pans, trays, utensils purposes, for example room heating. etc. • Always cook with the oven door closed.

  • Page 7: Installation

    Progress 7 • Concerning the lamp(s) inside this • Use original spare parts only. product and spare part lamps sold Disposal separately: These lamps are intended to withstand extreme physical WARNING! Risk of injury or conditions in household appliances, suffocation.
  • Page 8 8 Progress (*mm) min. 550 min. 560 Securing the oven to the cabinet...

  • Page 9: Product Description

    Progress 9 PRODUCT DESCRIPTION General overview Control panel Electronic programmer Heating element Lamp Shelf support, removable Shelf positions Accessories • Combi pan For cakes and biscuits. To bake and • Wire shelf roast or as a pan to collect fat.
  • Page 10 10 Progress Sensor Function Description Field Options To set a heating function or an automatic pro‐ gramme. My Favourite Pro‐ To store your favourite programme. Use it to have gramme access to your favourite programme directly or when the oven is off.

  • Page 11: Before First Use

    Progress 11 Symbol Name Description Automatic programme You can choose an automatic programme. My favourite programme The favourite programme operates. kg / g An automatic programme with a weight in‐ put operates. h / min A clock function operates. Temperature / Fast heat up The function operates.

  • Page 12: Daily Use

    12 Progress Preheat the empty oven before the first use. Step 2 Set the maximum temperature for the function: Let the oven operate for 1 h. Step 3 Set the maximum temperature for the function: Let the oven operate for 15 min.
  • Page 13 Progress 13 If you turn on the oven and do not set any heating function or programme, the oven Oven func‐ Application turns off automatically after 20 seconds. tion How to set: Temperature Use this function to pre‐ pare bread and bread...

  • Page 14: Clock Functions

    14 Progress CLOCK FUNCTIONS Clock functions table Clock function Application Time of Day To show or change the time of day. You can change the time of day only when the oven is on. Duration To set how long the oven works.

  • Page 15: Automatic Programmes

    Progress 15 1. Set a heating function and and the time setting . The oven turns temperature. off automatically. 2. Set the Duration. 4. Press a sensor field to stop the signal. 5. Turn off the oven. 3. Press again and again until the...

  • Page 16: Using The Accessories

    16 Progress display shows the default cooking times 2. Touch for all automatic programmes. The display shows , a symbol and the number of the automatic programme. List of automatic programmes 3. Touch to choose the automatic programme. Programme 4. Touch...

  • Page 17: Additional Functions

    Progress 17 Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down. Baking tray / Deep pan: Push the tray between the guide bars of the shelf support. Wire shelf, Baking tray / Deep pan:...
  • Page 18 18 Progress Using Child Lock 1. To turn on the function turn on the oven. The Child Lock prevents an accidental 2. Turn on an oven function or setting. operation of the oven. 3. Touch and hold at the When the pyrolytic cleaning is same time for 2 seconds.

  • Page 19: Hints And Tips

    Progress 19 • Day brightness: To exit the Settings menu, press – when the appliance is activated. press and hold – if you touch a sensor field during the night brightness (apart from Automatic switch-off ON / OFF), the display goes back...
  • Page 20 20 Progress Leave the meat for approximately 15 Initially, monitor the performance when minutes before carving so that the juice you cook. Find the best settings (heat does not seep out. setting, cooking time, etc.) for your cookware, recipes and quantities when To prevent too much smoke in the oven you use this appliance.
  • Page 21 Progress 21 Conventional True Fan Cook‐ Cooking CAKES (min) (°C) (°C) Buns, preheat 12 - 20 Baking tray the empty oven Eclairs 25 - 35 Baking tray Eclairs, two 2 and 35 - 45 Baking tray levels Plate tarts 45 - 70 Cake mould, Ø...
  • Page 22 22 Progress Conventional Cook‐ True Fan Cooking FLANS (min) (°C) (°C) Pasta flan, preheating is 40 - 50 not needed Vegetable flan, preheat‐ 45 - 60 ing is not needed Quiches 50 - 60 Lasagne 180 - 190 180 - 190...
  • Page 23 Progress 23 Conventional Cook‐ True Fan Cooking MEAT (min) (°C) (°C) Whole turkey 210 - 240 Whole duck 120 - 150 Whole goose 150 - 200 Rabbit, cut in pieces 60 - 80 Hare, cut in pieces 150 - 200...
  • Page 24 24 Progress GRILL (kg) (min) (min) 1st side 2nd side Chicken breast, 4 pieces 12 - 15 12 - 14 Burgers, 6 20 - 30 Fish fillet, 4 pieces 12 - 14 10 - 12 Toasted sandwiches, 4 - 6...
  • Page 25 Progress 25 Slow Cooking This function allows you to prepare lean, POULTRY tender meat and fish. It is not applicable (°C) (min) for: poultry, fatty roast pork, pot roast. 1. Sear the meat for 1 - 2 minutes on Poultry, portions,...
  • Page 26 26 Progress Defrost (kg) Defrosting Further defrost‐ time (min) ing time (min) Chicken 100 - 140 20 - 30 Place chicken on an upturned saucer placed on a large plate. Turn halfway through. Meat 100 - 140 20 - 30 Turn halfway through.
  • Page 27 Progress 27 For 2 trays use the first and fourth shelf position. VEGETA‐ (min) (min) BLES Cooking Continue VEGETA‐ time until to cook at BLES (°C) simmer‐ 100 °C Beans 60 - 70 6 - 8 Peppers 60 - 70...
  • Page 28 28 Progress (°C) (min) Sweet rolls, 16 baking tray or dripping 20 - 30 pieces Rolls, 9 pieces baking tray or dripping 30 - 40 Pizza, frozen, wire shelf 10 - 15 0.35 kg Swiss roll baking tray or dripping...
  • Page 29 Progress 29 (°C) (min) Tartlets, 8 baking tray or dripping 20 - 30 pieces Vegetables, baking tray or dripping 35 - 45 poached, 0.4 kg Vegetarian ome‐ pizza pan on wire shelf 25 - 30 lette Mediterranean baking tray or dripping 25 - 30 vegetables, 0.7...
  • Page 30 30 Progress (°C) (min) Spong Conven‐ Wire 40 - 50 Preheat the e cake, tional shelf oven for 10 mi‐ cake Cooking nutes. mould Ø26 Spong True Fan Wire 40 - 50 Preheat the e cake, Cooking shelf oven for 10 mi‐...

  • Page 31: Care And Cleaning

    Progress 31 (°C) (min) Beef Grill Wire max. 20 - 30 Put the wire burger, shelf shelf on the and drip‐ fourth level and pieces, ping pan the dripping pan 0.6 kg on the third level of the oven. Turn the food...
  • Page 32 32 Progress How to remove: Shelf supports Remove the shelf supports to clean the oven. Step 1 Turn off the oven and wait un‐ til it is cold. Step 2 Pull the front of the shelf sup‐ port away from the side wall.
  • Page 33 Progress 33 When the cleaning starts, the oven door is locked and the lamp is off. To stop the cleaning before it is completed, turn off the oven. The oven stays locked until it is cold. When the cleaning ends:...
  • Page 34 34 Progress Step 5 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal. Step 6 Pull the door trim to the front to re‐ move it.

  • Page 35: Troubleshooting

    Progress 35 How to replace: Lamp Always hold the halogen lamp with a cloth to prevent grease residue from burning on WARNING! Risk of electric the lamp. shock. The lamp can be hot. Before you replace the lamp: Step 1...
  • Page 36 36 Progress Problem Possible cause Remedy The oven does not heat up. The fuse is blown. Make sure that the fuse is the cause of the malfunc‐ tion. If the fuse is blown again and again, contact a qualified electrician.

  • Page 37: Energy Efficiency

    Product number (PNC) ......... Serial number (S.N.) ......... ENERGY EFFICIENCY Product Information and Product Information Sheet* Supplier's name Progress PBP43102B 949498099 Model identification PBP43102X 949498098 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, conventional 0.93 kWh/cycle...
  • Page 38 38 Progress Energy saving When the cooking duration is longer than 30 min, reduce the oven temperature to The oven has features which minimum 3 - 10 min before the end of help you save energy during cooking. The residual heat inside the oven everyday cooking.
  • Page 40 867355710-C-162021...
