Akron Streamline Changing Table
Instructions for Use
...with people in mind
792-681_04CN.REG •
07/2018
CFDA license: 1562332

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Akron Streamline 2211 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arjohuntleigh Akron Streamline 2211

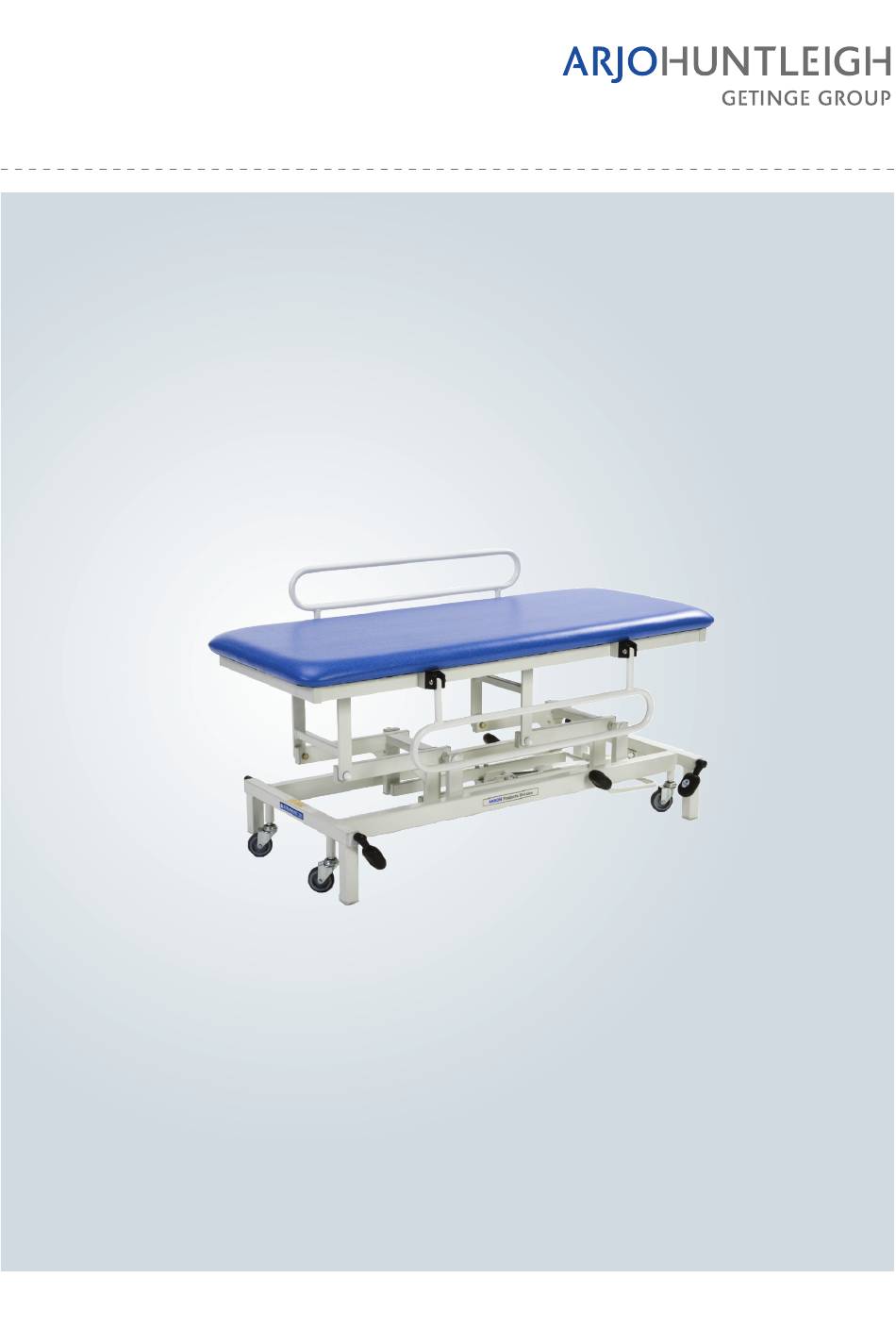

  • Page 1 Akron Streamline Changing Table Instructions for Use ...with people in mind 792-681_04CN.REG • 07/2018 CFDA license: 1562332...
  • Page 2 Intentionally left blank...
  • Page 3 ® AKRON STREAMLINE CHANGING TABLE Models 2211, 2212, 2311, 2312 USER MANUAL UM ENGLISH 792-681-02...
  • Page 4: Table Of Contents

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 Contents Introduction Warnings & Cautions Installation Operation Accessories – Operating Instructions Fold-down Side Supports, Paper Roll Holder, Head Support Cleaning and Decontamination Troubleshooting Maintenance Warranty and Service Revision Status Technical Specification Transport and Storage Environmental Protection mark on this product demonstrates conformity with the EC Directive 93/42/EEC.
  • Page 5: Introduction

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 1. Introduction The STREAMLINE product range of treatment & examination couches, have been designed to cover a wide range of disciplines, from simple examination to heavier manipulative and manual therapy techniques. The STREAMLINE couches in this range provide ergonomic solutions to a variety of manual handling issues, benefiting both the patient and clinician.
  • Page 6: Warnings & Cautions

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 2. Warnings & Cautions WARNINGS Warnings identify possible hazards in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions. CAUTIONS Cautions identify conditions or procedures which, if not correctly followed, could result in equipment failure or damage.
  • Page 7: Installation

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 3. Installation Adjustable Foot WARNING Lock castors before adjusting. Lock castors first. Adjust foot. Lock foot by tightening half nut. Electric Models WARNING Do not insert the 2-pin mains connector directly into a UK style, BS1363, 3-pin 13A mains outlet.
  • Page 8 AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 4. Operation Elevation Controls WARNING Safely position patient before elevating couch. Position all electrical cables away from the moving parts. Position Hand/Foot switch where accidental operation is not possible. Hydraulic Models PUMP PEDAL TO LIFT PEDAL TO RAISE COUCH LOWER COUCH...
  • Page 9: Operation

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 4. Operation Wheel Locking WARNING Lock couch wheels/castors prior to patient transfer or treatment. These couches are not designed for the transportation of patients. Disconnect and coil electrical cord away from moving parts prior to repositioning couch.
  • Page 10: Accessories - Operating Instructions

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 5. Accessories – Operating Instructions Fold Down Side Supports Raised Side Support Lowered Side Support To raise the Side Support when in the down position, lift and rotate towards you, through 180° . Once upright, push the Side Support downwards into the moulded block until located fully.
  • Page 11: Cleaning And Decontamination

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 6. Cleaning and Decontamination WARNING Do not use Alkalis or other organic solvents for routine cleaning. Replace torn or damaged vinyl immediately. Always cover vinyl with fresh paper or sheet between patients. If contamination is known or suspected always decontaminate couch before use.
  • Page 12: Troubleshooting

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 7. Troubleshooting – Electric Actuator Symptom Possible cause Action Actuator will not work Power disconnected Ensure mains supply is connected Fuse blown Contact your local Akron supplier Hand/footswitch Check that the hand/foot switch is disconnected fully inserted into the actuator If the problem persists consult your local AKRON Supplier.
  • Page 13: Warranty And Service

    Verkstadsvägen 5 241 38 Eslöv SWEDEN www.arjohuntleigh.com If for any reason your couch is being returned, please inform ArjoHuntleigh AB prior to sending, and: Clean the product, as described in the cleaning section. Pack it in suitable packing. Attach the decontamination certificate (or other written statement declaring that the product has been cleaned) to the outside of the package.
  • Page 14: Revision Status

    Verkstadsvägen 5 241 38 Eslöv SWEDEN www.arjohuntleigh.com If for any reason your couch is being returned, please inform ArjoHuntleigh AB prior to sending, and: Clean the product, as described in the cleaning section. Pack it in suitable packing. Attach the decontamination certificate (or other written statement declaring that the product has been cleaned) to the outside of the package.
  • Page 15: Technical Specification

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 11. Technical Specification Akron Changing Table 2211 / 2311 2212 / 2312 Width (cm) 64±1.5 64±1.5 70±1.5 70±1.5 Overall Length (cm) 183±1.5 (L) 183±1.5 (L) 152±1.5 152±1.5 Height Range (cm) 46±1.5 46±1.5 91.5±1.5 91.5±1.5 Max.
  • Page 16 AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 11. Technical Specification Complies with the following Electrical Safety Standards:- IEC 60601-1:1988/A2:1995, EN 60601-1:1990/A13:1996, UL60601-1 1 Edition, CAN/CSA C22.2 No. 601.1- M90. EMC Standards: EN 60601-1-2:2001 Check Serial Number label for classification and duty cycle Model No.’s 2212, 2312 (Hanning) 230V ~ 50Hz 2.0A 115V ~ 60Hz 3.5A...
  • Page 17: Transport And Storage

    AKRON STREAMLINE Model No.’s:- 2211, 2212, 2311, 2312 11. Technical Specification CAUTION Electromagnetic compatibility (EMC). This product complies with the requirements of applicable EMC Standards. The use of accessories not specified by the manufacturer may result in increased emission by, or decreased immunity of, the equipment, affecting its performance.
  • Page 18 Intentionally left blank...
  • Page 19 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 AKRON ® STREAMLINE 诊疗床 型号 2211, 2212, 2311, 2312 使用说明书...
  • Page 20 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 目录 1. 简介 2. 警告 & 注意事项 3. 安装 4. 操作 5. 配件 – 操作指南 折叠侧边护栏,卷纸架 头枕 6. 清洁与去污 7. 故障排除 8. 维护 9. 质量担保与售后服务 10.修订校正数据信息 11. 技术参数 12. 运输与储存 13. 环境保护 标志表示该产品符合 EC 条款 93/42/EEC 的要求 产品上的...
  • Page 21 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 1. 简介 STREAMLINE 系列的产品主要都是用于治疗&检查用的病床,产品覆盖的学科范围很广泛, 从简单的疾病检查到严重的疾病控制和普通治疗都有涉及。 STREAMLINE 系列产品为各种问题的处理提供了符合人机工程学的解决方案,既使患者收 益,又有利于临床医生。这一系列的产品可以通过增加配件对其适用范围进一步的加强。 但是这些产品不同于普通的床,不适合用于睡眠使用。 请保留此份使用说明书以供随时参考。...
  • Page 22: 警告 & 注意事项

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 2. 警告 & 注意事项 警告 对如果不遵循使用手册使用而造成的死亡,受伤或者其他严重的不良反应 的行为或条件进行明确警告。 注意事项 对如果不遵循使用手册使用而造成的设备运行失败或者受损 的行为或条件进行提醒注意。 通用警告 警告 电气设备会发生危险。只能由经过培训/具有资格的专业人员使用本产品 本设备不能与其他电气设备相邻使用。 如果需要在此情况下使用,应对设备的正常操作进行验证观察。 电气设备可能会受到便携式和/或者移动通讯设备(如移动电话)的射频干扰。 只能使用专门为此设备设计或者经过认可的附件。 这些产品不能用于患者的运送。 在有可燃性气体诸如麻醉剂的情况下请不要使用折叠床。 最大负载 225Kg (495 lbs) 且均匀分布。 请不要将重量只集中在设备的一边。 插头作为断开设备连接使用。 任何时候都不要让小孩在设备上玩耍。 在设备附近要对孩子进行看护监管。 任何时候不要将患者独自留在病床上。 注意事项 这些产品符合电磁兼容性标准的要求。 使用不是制造商指定的配件可能会导致辐射增加, 或 者设备免疫性能降低从而影响设备性能。 不能超过设备标签上标明的使用周期来使用设备。...
  • Page 23 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 3. 安装 可调支脚 警告 调整前请锁定滚轮。 A) 首先锁定滚轮 B) 调整支脚 C) 通过拧紧螺母来锁定支脚。 电气模式 警告 不要将 2 相的电源插头插入 3 相 13A 的英国 BS1363 电源插口中, 请使用设备提供的适配器。 如需要请使用 3 相 13A 插头 (参考编号 5S0409Z) 连接时请确保电源线未拉长连接。 在使用诊疗床时,确保移动过程中没有障碍。 在移动诊疗床部件时,请确保手动开关或者导线不要绞入设备。 注意事项 设备不使用时,请关闭开关。拔掉插头断开与设备的连接。...
  • Page 24 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 4. 操作 升降控制 警告 在升高诊疗床之前请确保患者处于安全位置。 将所有活动电线远离活动部件。 将手控/脚踏开关放置于不会发生事故的位置。 液压模式 踩下踏板来升高床面 抬起踏板来降低床面 液压踏板 电动模式 按下 来升高床面。 按下 来降低床面。 手动遥控开关 按下 来升高床面。 按下 来降低床面。 脚踏开关...
  • Page 25 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 4. 操作 锁定滚轮 警告 在运送患者或者治疗之前请锁定诊疗床的滚轮/脚轮。 可伸缩的脚轮不能用于运送患者。 在放置诊疗床之前请断开电源并将电线远离活动部件。 脚轮(RWB -可伸缩滚轮,型号 2211 & 2212) 脚轮未锁定 锁定脚轮 警告 在运送患者或者治疗之前请锁定诊疗床的滚轮/脚轮。 滚轮(LWB –大号滚轮,型号 2311 & 2312) 锁定滚轮 定向锁定 释放滚轮...
  • Page 26: 配件 - 操作指南

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 5. 附件 - 操作指南 可折叠侧边护栏 升高侧边护栏 降低侧边护栏 1. 当侧边护栏处于下方而将其升高时,可朝您的方向抬高并旋 转 180 度。一旦到达直立位置,向下推动侧栏插入模块中直 到完全锁定。 2. 要从直立位置降低侧边护栏,从模块中拉出护栏并向下旋转 180 度即可。 注意事项 使用前要确保折叠护栏已经完全插入到模块中。 卷纸架 安装卷纸架: A) 轻轻打开弹簧架。 B) 将卷纸轴放入弹簧中间。 C) 将卷纸放入并释放弹簧。 头枕 将头部靠垫调整到舒适的位置: A) 打开尼龙扣带 B) 将靠枕放在需要的位置 C) 将尼龙扣带束紧 注意事项...
  • Page 27: 清洁与去污

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 6. 清洁与去污 警告 日常清洁时请勿使用碱性物质或者其他有机溶剂。 立即更换破损的乙烯瓶。 使用保鲜纸或者纸板将患者与乙烯隔开。 如果已知存在污染或者怀疑受到污染,在使用前请清洗设备。 清洗设备的频率取决于设备的正确使用程度。 清洁与去污 将诊疗床的脚轮锁定并将转运床放在干净宽敞的区域。 1. 穿好防护服:一次性塑料围裙和手套。 2. 断开所有电源连接并锁定床体滚轮。 3. 可以使用 70%的酒精擦拭遥控器。 4. 准备温水与中性清洁溶剂。 5. 从诊疗床的顶部向下进行清洁。 6. 从头部向中间躯干部分进行擦拭。 7. 擦拭剩余的患者平躺表面部分,并朝脚部方向进行擦拭。 8. 擦拭诊疗床下表面部分。 9. 擦拭床体表面下方所有垂直部件。 10. 擦拭遮蔽罩(如果已经安装)。 11. 擦拭滚轮部分。 12. 在再次使用之前保证床体的所有部件干燥。 13.
  • Page 28: 故障排除

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 7. 故障排除 – 电动机 症状 可能的原因 解决办法 电动机不工作 未连接电源 确保电源已连接 保险丝熔断 更换保险丝 手控/脚踏开关断开连接 检查手控/脚踏开关是否完全 插入螺线管中 如果问题仍然存在,请咨询当地的供应商。 8. 维护 使用前肉眼检查转运床。 每 6 个月执行一次例行维护或者频繁使用后进行维护。 必须由经过专业培训的人员进行维护修理。 警告 在进行任何的维护修理工作之前,请断开诊疗床的所有电源连接。 拔掉设备插头即可断开连接。 要检查诊疗床是否有损害的迹象。确保所有螺钉,扣带和其他紧固装置是否紧固。当然也不 要过紧,这样会造成捆绑束缚。 检查靠垫是否牢靠,如果需要可以进行更换。 检查铰链螺栓,确保没有针脚伸出。 检查支撑控制,包括整个移动范围内的锁定和支撑。 检查液压坐垫是否运行正常并检查是否有泄露现象。 警告 所有电器方面的检查都应由具有专业资格的电工人员进行。 在三相插头上既不能将蓝色线也不能将棕色线连接到接地端子上。...
  • Page 29: 质量担保与售后服务

    310 – 312 Dallow Road Luton Beds LUI 1TD 电话: 01582 745700 传真: 01582 745869 需要产品信息,质量担保与零配件信息请联系 ArjoHuntleigh AB Verkstadsvagen 5 241 38 Eslov Sweden www.arjohuntleigh.com 如任何原因要求退货,在送回之前请联系 ArjoHuntleigh AB 并且: 1. 清洁设备,参考设备清洗章节。 2. 将产品进行包装。 3. 请在包装外面贴上消毒证明(或者其他声明来证明产品已经清洗过)。 4. 在包装上标明“Service Department” 。 本产品由英国 ArjoHuntleigh AB 生产。作为可持续性发展计划的一部分,本公司保留对产品 进行修改以及不告知座椅材料的权利。...
  • Page 30: 修订校正数据信息

    9. 质量担保与售后服务(英国以外地区) ArjoHuntleigh AB 的标准条款与条件适用于本产品。根据需要可提供拷贝。这里面包含了具 体的质量担保的细节以及不限制消费者的法定权利。 需要产品信息,质量担保与零配件信息请联系 ArjoHuntleigh AB Verkstadsvagen 5 241 38 Eslov Sweden www.arjohuntleigh.com 如任何原因要求退货,在送回之前请联系 ArjoHuntleigh AB 并且: 1. 清洁设备,参考设备清洗章节。 2. 将产品进行包装。 3. 请在包装外面贴上消毒证明(或者其他声明来证明产品已经清洗过)。 4. 在包装上标明“Service Department” 。 本产品由英国 ArjoHuntleigh AB 生产。作为可持续性发展计划的一部分,本公司保留对产品 进行修改以及不告知座椅材料的权利。 10. 修订校正数据信息 2211, 2212, 2311, 2312 页...
  • Page 31: 技术参数

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 11. 技术参数 Akron Changing Table 2211 / 2311 2212 / 2312 64±1.5 64±1.5 宽度 (cm) 70±1.5 70±1.5 183±1.5 183±1.5 整体长度 (cm) 152±1.5 152±1.5 46±1.5 46±1.5 高度范围 (cm) 91.5±1.5 91.5±1.5 225 Kg 225 Kg 最大负载重量 升降控制...
  • Page 32 AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 11. 技术参数 符合下列电气安全标准: IEC 60601-1:1988/A2: 1995, EN 60601-1:1990/A13: 1996, UL60601-1 第 1 版, CAN/CSA C22.2 No. 601.1 M90。 EMC 标准:EN 60601-1-2:2001 按照分类检查序列号标签与工作周期 型号:2212,2312(Hanning) 230v – 50Hz 2.0A 115v – 60Hz 3.5A I 类 双重绝缘(II 类) B 型设备...
  • Page 33: 运输与储存

    AKRON STREAMLINE 型号:2211, 2212, 2311, 2312 11. 技术参数 注意事项 这些产品符合电磁兼容性标准的要求。使用不是制造商指定的配件可能会导致辐射增加, 或者设备免疫性能降低从而影响设备性能。 不能超过设备标签上标明的使用周期来使用设备。 警告 医用电气设备需要特别注意电磁兼容性(EMC)并且在安装和使用设备时严格按照所提供的 电磁兼容性信息执行操作。 12. 运输与储存 小心轻放。请勿掉落。避免震动或者撞击伤害。 设备应储存在干净,干燥和通风良好的环境中。请注意在运输期间以及最大储存 15 周期间 的限制: -25℃ 到 +70℃ 环境温度 10% 到 75% 相对湿度 50kPa 到 106 kPa 大气压 在操作过程中或者长期储存过程中应遵守下列限制: +10℃ 到 +40℃ 环境温度 30% 到...
  • Page 34 Intentionally left blank...
  • Page 35 Intentionally left blank...
  • Page 36 Getinge Group is a leading global provider of products and systems that contribute to quality enhancement and cost effi ciency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, Getinge and Maquet. Getinge provides solutions for infection control within healthcare and contamination prevention within life sciences. Maquet specializes in solutions, therapies and products for surgical interventions, interventional cardiology and intensive care.
