Akron Streamline Europe
Continental

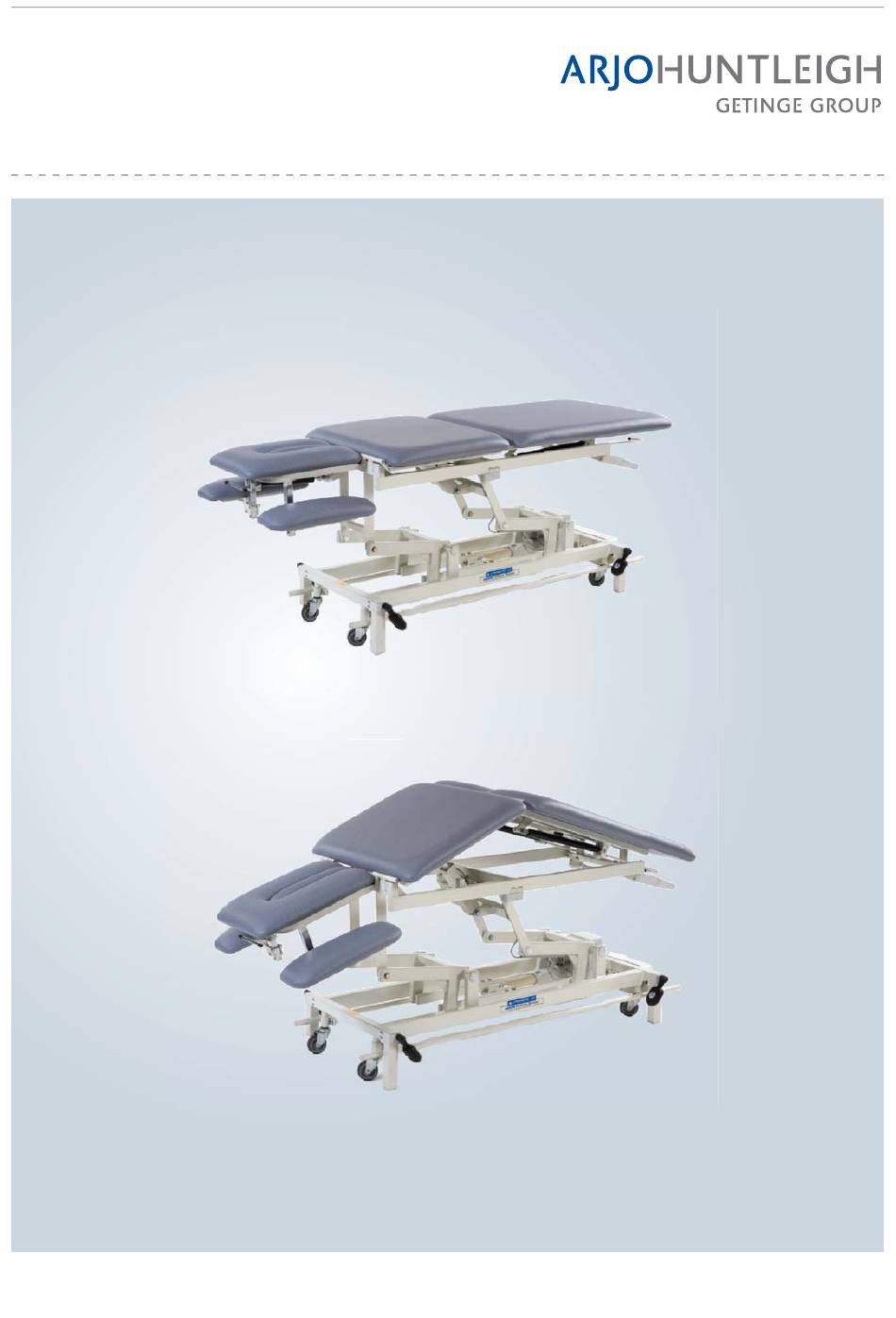

Instructions for Use
...with people in mind
792-692-07 • 10/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Akron Streamline Europe Continental and is the answer not in the manual?

Questions and answers

Summary of Contents for Arjohuntleigh Akron Streamline Europe Continental

  • Page 1 Akron Streamline Europe Continental Instructions for Use ...with people in mind 792-692-07 • 10/2017...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies unless otherwise stated. © ArjoHuntleigh 2012. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
  • Page 3: Table Of Contents

    Contents Warnings, Cautions and Notes ............ii General Warnings ................ii 1. Introduction ..............1 Product overview................2 2. Clinical Applications ............. 3 Intended use .................. 3 Contraindications ................3 3. Installation ..............4 Adjustable Foot ................4 Electric models................4 4.
  • Page 4: Warnings, Cautions And Notes

    Unauthorised modifications or repairs to this product may affect its safety and will invalidate any warranty. ArjoHuntleigh accepts no liability for any incident, accident or reduction in performance that may occur as a result of such repairs or modifications.
  • Page 5 WARNING Do not use accessories that have not been designed or approved for use with couch. Always apply the brakes when the couch is stationary. When the couch is operated, make sure that obstacles such as furniture do not restrict its movement. Before operating the couch, make sure the patient is positioned correctly to avoid entrapment or imbalance.
  • Page 6 Caution Electromagnetic Compatibility (EMC). This product complies with the requirements of applicable EMC standards. The use of accessories not specified by the manufacturer may result in increased emissions by, or decreased immunity of, the equipment, affecting its performance. Do not exceed the specified duty cycle as stated on the Product Identification Label.
  • Page 7: Introduction

    1. Introduction ™ The STREAMLINE product range of treatment & examination couches, have been designed to cover a wide range of disciplines, from simple examination to heavier manipulative and manual therapy techniques. The STREAMLINE couches in this range provide ergonomic solutions to a variety of manual handling issues, benefiting both the patient and clinician.
  • Page 8: Product Overview

    Product overview 1. Upholstery with breathing hole 2. Gas strut lever 3. Castors 4. Lifting arms 5. Rubber pedals 6. Electric actuator 7. Paper roll holder...
  • Page 9: Clinical Applications

    2. Clinical Applications WARNING To ensure the patient can use the couch safely, their age, size and condition should be assessed by a clinically qualified person. Intended use The Akron Streamline Europa Continental has been designed especially for wide range of medical examination procedures, manual therapy and minor operations.
  • Page 10: Installation

    3. Installation Adjustable Foot WARNING Lock all castors before adjusting. A. Lock castors first. B. Adjust foot. C. Lock foot by tightening half nut. Connect the mains plug to a suitable socket outlet. Make sure the Electric mains plug is easily accessible so it can be disconnected quickly in models an emergency.
  • Page 11 Caution Do NOT insert hands or feet into the mechanism as this could result in serious injury!
  • Page 12: Electric Models

    4. Operation Elevation Controls WARNING Safely position patient before elevating couch. Position all electrical cables away from the moving parts. Position hand/foot switch where accidental operation is not possible. Electric Models Lockout handset Press to move the section up. Press to move the section down.
  • Page 13: Wheel Locking

    Footswitch Press to move the section up. Press to move the section down. Foot bar switch (FBS) Press tube down to raise couch. Lift tube up to lower couch. Wheel Locking WARNING Lock all couch wheels/castors prior to patient transfer or treatment. These couches are not designed for the transportation of patients.
  • Page 14: Breathing Hole And Plug

    Breathing Hole and Plug Remove plug for patient prone position. Press out from underneath. Head and Foot Sections Caution Support upholstery section while manually altering the angle. Apply pressure to ensure the upholstery is locked. If movement is detected, seek advice. A and B Type Head Section Operating Lever A.
  • Page 15: Foot Section Operating Lever

    Foot Section Operating Lever A. Press lever UP to alter section angle. B. Support section when altering angle. C. Release lever to lock section in position. C Type Head Section Arm Rests A. Tilt Armrest towards head section. B. Move armrest into position. C.
  • Page 16: Product Care

    (neutral) detergent and water. Chemical Disinfection ArjoHuntleigh recommend a chlorine-releasing agent, such as sodium hypochlorite, at a strength of 1,000ppm available chlorine (this may vary from 250ppm to 10,000ppm depending on local policy and contamination status).
  • Page 17: Preventive Maintenance

    Examine the accessories (if applicable)  Visually check the upholstery Check gas strut controls and moveable sections for their  full range of movement for locking. If the result of any of these tests is unsatisfactory, contact ArjoHuntleigh or an approved service agent.
  • Page 18 WARNING The procedures below must be carried out by suitably trained and qualified personnel. Failure to do so may result in injury or an unsafe product. Once a Actions to be done by qualified personnel year Carry out a full test of all electrical couch positioning functions (height, ...
  • Page 19: Troubleshooting

    Troubleshooting If the equipment fails to operate correctly, the table below suggests some simple checks and corrective actions. If these steps fail to resolve the problem, contact ArjoHuntleigh or an approved service agent. Symptom Possible Cause Action Check the mains cable is...
  • Page 20: Accessories

    6. Accessories Recommended accessories for the AKRON Streamline Eurpoa Continental range are shown in the table below: - Optional Accessory Accessory Accessory description number Detachable Head Support AHC1 Europa Paper Roll Holder A8612...
  • Page 21: Detachable Head Support (Ahc1)

    Detachable Head Support (AHC1) Adjust Head Support to suit patient by: A. Unfastening Velcro strap. B. Position where required. C. Fasten Velcro strap to secure. Europa Paper Roll Holder (A8612) Replace paper roll by: A. Gently spring bracket out. B. Insert paper roll rod between brackets. C.
  • Page 22: Technical Data

    Electronic Equipment (WEEE). This symbol indicates that all electrical and electronic products must be taken to a dedicated collection point at end of their working life. Contact ArjoHuntleigh or your local authority for advice on proper disposal.Incorrect disposal of this equipment and its component parts, particularly gas springs, actuators, and other electrical devices, may produce substances that are hazardous to the environment.
  • Page 23 Model Angles and dimensions 2132B 2132C 2162C Transport and storage Handle with care. Do not drop. Avoid shock or violent impact. This equipment should be stored in a clean, dry and well-ventilated area which meets the following conditions: Temperature -10°C to +50°C Relative humidity 20% to 90% non-condensing Atmospheric pressure...
  • Page 24 Symbols Safe working load Double Insulated (Class II) Manufacturer / date of Alternating current (a.c.) manufacture Total weight of the equipment including its safe Manufacturing date working load Complies with the European Caution Medical Device Directive 93/ 42/EEC Refer to instructions For Serial number Type B applied part.
  • Page 25 WARNING Medical Electrical Equipment needs special precautions regarding EMC (Electromagnetic Compatibility) and must be installed and put into service according to the EMC information provided in the documents accompanying this equipment. Caution The use of non-approved accessories may result in increased emissions or reduced immunity of the equipment.
  • Page 26 Guidance and manufacturer’s declaration – electromagnetic immunity The couch is intended for use in the electromagnetic environment specified below. The customer or the user of the couch should assure that it is used in such an environment. Compliance Compliance level for IEC 60601 level for Electromagnetic...
  • Page 27 Guidance and manufacturer’s declaration – electromagnetic immunity The bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. IEC 606 01 test Compliance Electromagnetic environment - Immunity test...
  • Page 28: List Of Standards And Certificates

    For service, maintenance and any questions regarding this product, please contact your local ArjoHuntleigh office or approved distributor. A list of ArjoHuntleigh offices can be found at the back of this manual. Have the model number and serial number of the equipment to hand when contacting ArjoHuntleigh regarding service, spare parts or accessories.
