1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail:
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
Haws electric water cooler's are not designed or recommended for outdoor or corrosive
environments such as enclosed chlorinated pool areas.
Consideration must be made at the time of installation to adhere to state and/or local codes and
environmental/atmospheric conditions such as, but not limited to, dust, corrosion, freezing etc.
These conditions will void the warranty.
CAUTION! Prior to making any electrical connections, verify with a voltmeter that power from the
service panel is off.
HAWS warrants that this specific product is guaranteed against defective material or
poor workmanship for a period of one year from date of shipment. HAWS liability
under this warranty shall be discharged by furnishing without charge F.O.B. HAWS
Factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first class workmanship, provided that
claim is made in writing to Haws within a reasonable period after receipt of the
product. Where claims for defects are made, the defective part or parts shall be
delivered to the Company, prepaid, for inspection. HAWS will not be liable for the
cost of repairs, alterations or replacements, or for any expense connected therewith
made by the owner or his agents, except upon written authority from HAWS,
Sparks, Nevada. HAWS will not be liable for any damages caused by defective
materials or poor workmanship, except for replacements, as provided above. Buyer
agrees that HAWS shall not be liable for general, special, or consequential damages
claimed to arise under the contract of sale. The drinking fountain manufactured by
HAWS is warranted to function if installation and maintenance instructions provided
are adhered to. The units also must be used for the purpose for which they were
intended.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,
PROVIDED OR GIVEN BY HAWS.
03/20
haws@hawsco.com

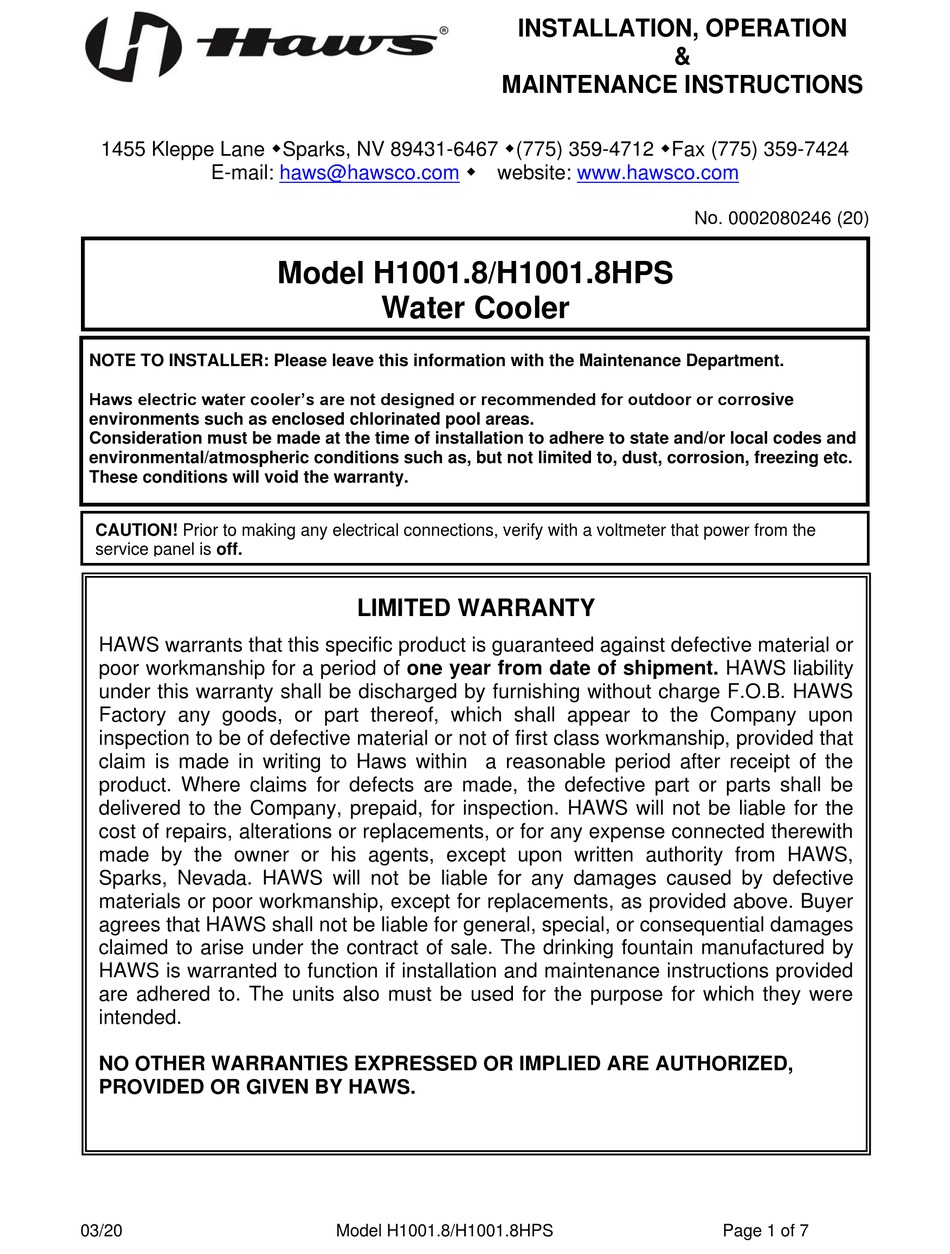

Model H1001.8/H1001.8HPS
Water Cooler
LIMITED WARRANTY
Model H1001.8/H1001.8HPS
INSTALLATION, OPERATION
MAINTENANCE INSTRUCTIONS
 website:
www.hawsco.com
&
No. 0002080246 (20)
Page 1 of 7

Advertisement

loading

Summary of Contents for Haws H1001.8

  • Page 1 Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection.
  • Page 2: Technical Support

    10" pipe wrench, 3/32” and 5/32 “ hex key wrench, 9/16”, 1/2", 7/16” socket wrench or open end wrench. LOCATION OF UNIT: The Model H1001.8/H1001.8HPS Cooler is a wheelchair accessible drinking facility. The height dimensions shown, meet current ADA requirements. When installing this unit, local, state or federal codes should be adhered to.
  • Page 3: Installation Procedure

    INSTALLATION PROCEDURE GENERAL NOTES: The Model H1001.8/H1001.8HPS Water Cooler assembly requires installation of the mounting frame as described in Steps 1 - 2, then mounting the fountain bowl assembly as described in Steps 3 - 6, and finally completing chiller water and electrical connections and starting chiller per Steps 7 - 11.
  • Page 4 Remove slip joint nuts from bottom of fountain waste outlet. Assemble nut over 1- 1/4” O. D. end of waste elbow as supplied by Haws. Assemble waste elbow onto bowl waste body using seal washer provided and tighten nut hand tight. Measure vertical distance down to trap inlet and cut the vertical (not supplied) elbow to length allowing 1/2”...
  • Page 5: Maintenance

    Adjust chiller temperature control, clockwise for colder water. Corporation – All Rights Reserved ® © 2020 Haws ® HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation. 03/20 Model H1001.8/H1001.8HPS Page 5 of 7...
  • Page 6: Parts Breakdown

    WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER. APPROVED DATE 04/02/20 SCALE: 1:10 DRAWING TYPE: PARTS BREAKDOWN SIZE: A SHEET 2020 Haws Corporation - All Rights Reserved PAGE 6 OF 7 HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
  • Page 7 CHK'D.: REVISION 07-01-97 BOWL MOUNTING PATTERN DETAIL APPROVED: DATE: 04/02/20 SCALE: 1:15 DRAWING TYPE: INSTALLATION SIZE: A SHEET 2020 Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

This manual is also suitable for:

H1001.8hps
