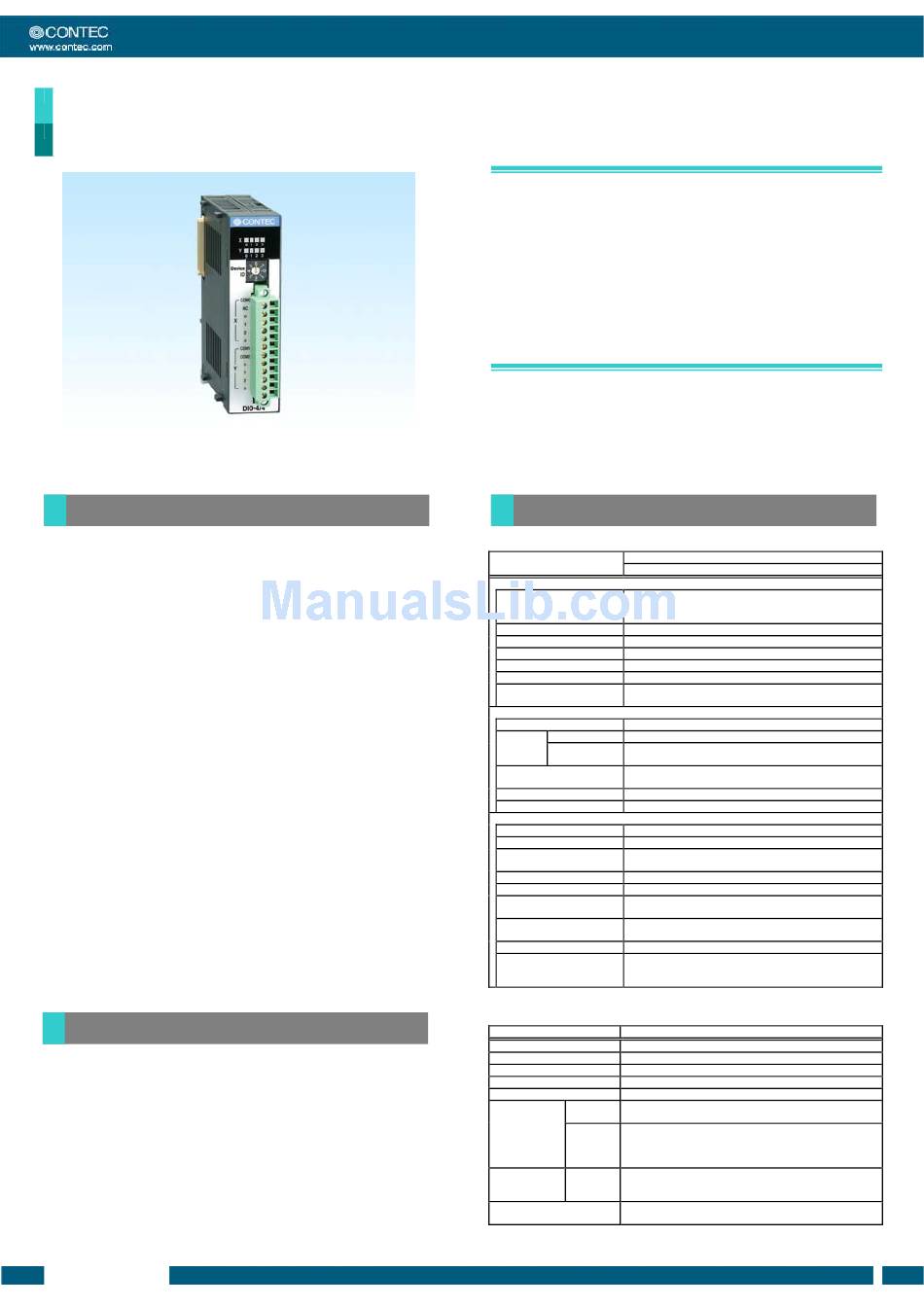

Contec DIO-4/4(FIT)GY Specification

F&eIT Series
Isolated Digital I/O Module

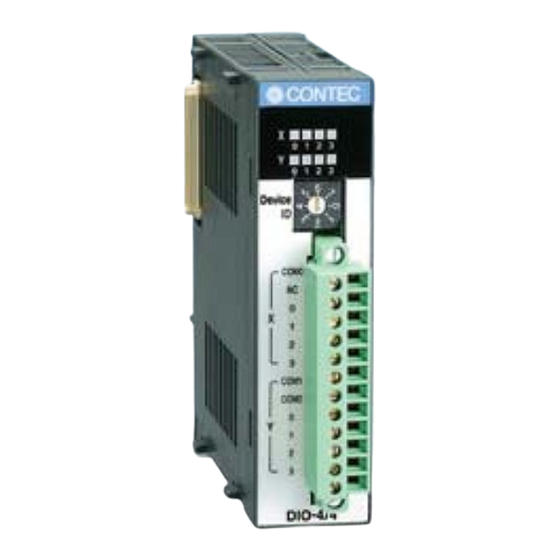

DIO-4/4(FIT)GY
* Specifications, color and design of the products are subject to
change without notice.
Features
This product can perform 4-point digital signal input and 4-point
digital signal output, treating 4 points as a group.
Input section is ready to accept both the current sinking output
and current source output.
The output section is a high sink current, open collector type
using high-capacitance transistors.
150 mA/24 VDC or 50 mA/48 VDC max. (per channel)
Isolated I/O operations using an optocoupler improves noise
immunity.
A rotary switch allows you to set device IDs, making it easy to
keep track of device numbers.
Like other F&eIT series products, the module has a 35mm DIN
rail mounting mechanism as standard.
controller module can be effected on a lateral, stack basis in a
unique configuration, which permits a simple, smart system
configuration without the need for a backplane board.
Packing List
Module[DIO-4/4(FIT)GY] ...1
First step guide ... 1
CD-ROM [F&eIT Series Setup Disk] *1...1
Interface connector plug...1
*1 The CD-ROM contains various software and User's Guide.
DIO-4/4(FIT)GY
A connection to a
This product is an expansion module (device module) that adds
digital signal I/O interfaces to one of various types of controllers.
The product is used in combination with the I/O controller
module <CPU-CAxx(FIT)GY> (*1) or microcontroller unit
<CPU-SBxx(FIT)GY> (*1) in the F&eIT Series.
This product can perform a maximum of 4 points of
Optocoupler isolated input and 4 points of Optocoupler isolated
output per module. (Input: 12 - 24 VDC specified, output: 12 -
48 VDC specified)
*1 This module is available in different product models.
represents a blank or one alphanumeric character. This is applicable to the rest of this
document.
Specification
Specifications
Item
Input section
Input format Optocoupler isolated input
(compatible with current sink output and current source
output)
Input resistance 3kΩ
Input ON current 3.4mA or more
Input OFF current 0.16mA or less
Number of input signal points 4 points (4 points/common)
Response time Within 1msec
External circuit power supply 12 - 24VDC (±15%)
(4mA/12V - 8mA/24V per channel)
Output section
Output format Optocoupler isolated open collector output (current sink type)
Ratings Output voltage 12 - 48VDC (±15%)
Output current 150mA (12 - 24V) (per channel) (Max.)
50mA (36 - 48V) (per channel) (Max.)
Number of output signal 4 points (4 points/common)
points
Response time Within 1msec
External circuit power supply 12 - 48VDC (±15%)
Common section
Interrupt level Using CPU-SBxx(FIT)GY: IRQ 5, 7, or 9
Internal current consumption 5VDC(±5%) 150mA(Max.) *1
Allowable distance of signal Approx. 50m (depending on wiring environment)
extension
Physical dimensions (mm) 25.2(W) x 64.7(D) x 94.0(H) (exclusive of protrusions)
Weight of the module itself 100g
Module connection method Stack connection by means of a connection mechanism
standard with the system.
Module installation method One-touch connection to 35mm DIN rails
(standard connection mechanism provided in the system)
Applicable wire AWG 28 - 16 wire type: 0.32 - 1.30mm
Applicable plug FRONT-MC 1,5/12-STF-3,81 (made by Phoenix Contact
Corp.)
3.81mm-pitch, rated current: 8A (Max.)
*1 The stack connector accepts currents of up to 3.0A (Max.).
Installation Environment Requirements
Item
Operating temperature 0 - 50°C
Storage temperature -10 - 60°C
Operating humidity 10 - 90%RH (No condensation)
Floating dust particles Not to be excessive
Corrosive gases None
Noise immunity Line-noise AC line/2kV, Signal line/1kV
*1 (IEC1000-4-4Level 3, EN61000-4-4Level 3)
Static Contact discharge/4kV (IEC1000-4-2Level 2,
electricity EN61000-4-2Level 2)
resistance Atmospheric discharge/8kV (IEC1000-4-2Level 3,
EN61000-4-2Level 3)
Vibration Sweep 10 - 57Hz/semi-amplitude 0.15mm, 57 - 150Hz/2.0G
resistance resistance 80minutes each in X, Y, and Z directions
(JIS C0040-compliant, IEC68-2-6-compliant)
Impact resistance 15G half-sine shock for 11ms in X, Y, and Z directions
(JIS C0041-compliant, IEC68-2-27-compliant)
*1 When using a POW-AD22GY
Ver.1.00
"x" in each model number
Specifications
DIO-4/4(FIT)GY
Requirement description
1
