Contec N Series Quick Start Manual

N Series for USB
Isolated Digital I/O Unit(16ch DI, 16ch DO)

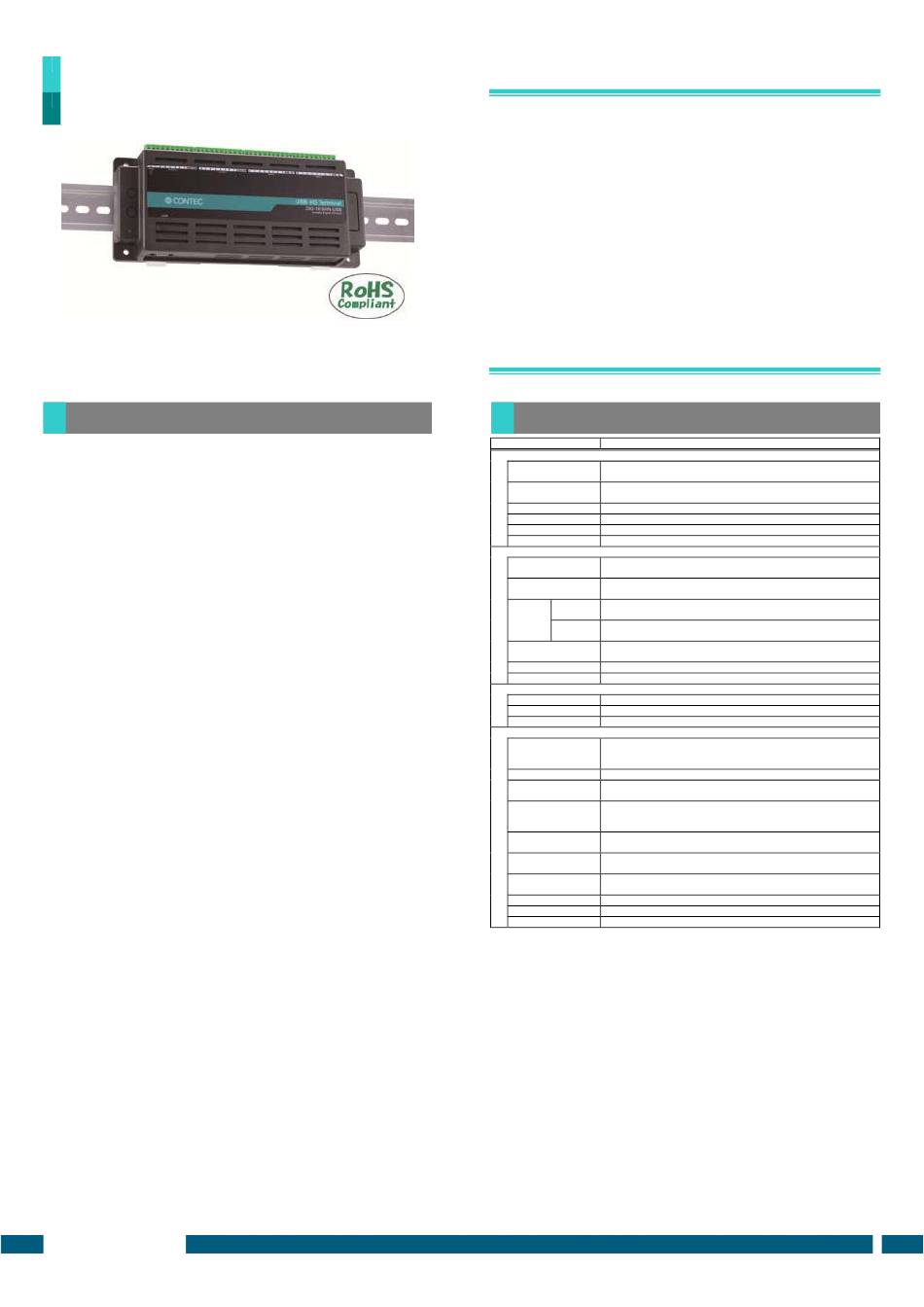

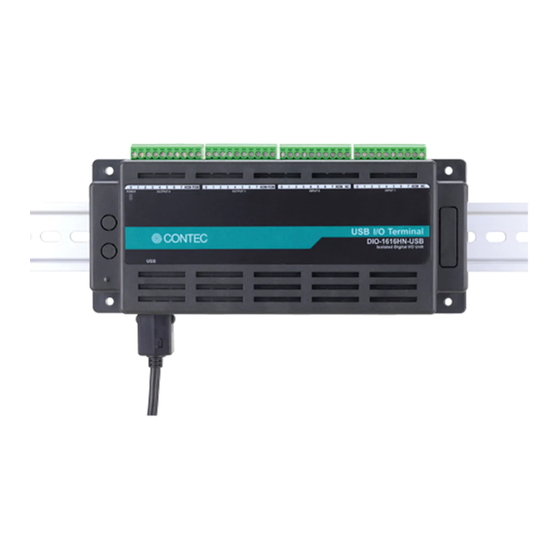

DIO-1616HN-USB
* Specifications, color and design of the products are subject to
change without notice.
Features
Diverse installations such as screw fastening, magnet,
DIN rail are possible
Installation on the floor / wall /ceiling is possible by screw
fastening, magnet, rubber feet, etc.
In addition, DIN rail mounting mechanism is equipped as
standard with the product, making it easy to install the product
within the panel or the device.
Compact design not restricting installation location
(188.0(W) x 78.0(D) x 30.5(H))
Compact design of 188.0(W) × 78.0(D) × 30.5(H) does not
require special installation location.
Easy-to-wire terminal connector adopted
Adoption of terminal connector (with screws) enables to
achieve easy wiring.
Optocoupler isolated input
(compatible with current sink output)
This product has 16 channels of optocoupler isolated inputs,
compatible with current sink output of 5 - 50 VDC whose
response speed is 200μsec. 16 channels share one common.
As the power to run the opto-couplers is supplied internally, no
external power supply is required.
Optocoupler isolated open-collector outputs
(compatible with current sink type)
This product has 16 channels of opto-coupler isolated
open-collector outputs (current sink type) whose response
speed is 200μsec, supporting driver voltages of 5- 50 VDC for
I/O. The output rating is max.100mA per channel. Common
terminal provided per 8 channels, capable of supporting a
different external power supply.
Opto-coupler bus isolation
As the USB I/F on PC is isolated from the input and output
interfaces by opto-couplers, this product has excellent noise
performance.
Compatible to USB1.1/USB2.0
Compatible to USB1.1/USB2.0 and capable to achieve high
speed transfer at HighSpeed (480 Mbps).
Windows compatible driver libraries are attached.
Using the attached digital I/O driver API-DIO(WDM) makes it
possible to create applications of Windows. In addition, a
diagnostic program by which the operations of hardware can
be checked is provided.
LabVIEW is supported by a plug-in of dedicated library
VI-DAQ.
Using the dedicated library VI-DAQ makes it possible to make
a LabVIEW application.
DIO-1616HN-USB
PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • info@plug-in.de • www.plug-in.de
This product is an USB2.0-compliant digital I/O unit that
extends the input and output function of digital signal from the
USB port of PC.
Compact design not restricting installation location (188.0(W) x
78.0(D) × 30.5(H)) makes it easy to install the product within
the panel or device using DIN rail mounting jigs, or on the floor
or wall.
This product is compatible with digital input and output signals
at 5 - 50VDC which features 16 channels of opto-coupler
isolated inputs (compatible with current sink output) and 16
channels of opto-coupler isolated open-collector
outputs(compatible with current sink type), equipped with
output transistor protection circuit (surge voltage protection and
over current protection).
Windows driver library is supplied. Possible to be used as a
data recording device for LabVIEW, with dedicated libraries.
Specification
Item
Input
Number of input 16 channels (1 common)
signal channels
Input format Opto-isolated input (Compatible with current sink output)
(Negative logic *1)
Input resistance 560Ω
Input ON current 1.15mA or more
Input OFF current 0.16mA or less
Response time Within 200µsec *2
Output
Number of output 16 channels (8 channels share 1 common)
signal channels
Output format Opto-isolated open collector output
(Compatible with current sink)(Negative logic *1)
Output
60VDC (Max.)
Output voltage
rating
Output
100mA (par channel) (Max.)
current
0.5V or less (Output current ≤ 50mA), 1.0V or less
Residual voltage
(Outputcurrent ≤ 100mA)
with output ON
Surge protector Zener diode RD68FM(NEC) or the equivalence for it
Response time Within 200µsec *2
USB section
Bus specification USB Specification 2.0/1.1standard
USB transfer rate 12Mbps (Full-speed), 480Mbps (High-speed) *3
Power supply Bus power
Common section
Number of 127 terminals (Max.) *4
terminals used at
the same time
Dielectric strength 500Vrms
External circuit 5 – 50VDC (±10%)
power supply *5
Current
consumption
(Max.) 5VDC 300mA
Operating
conditions*6 0 - 50ºC, 10 - 90%RH (No condensation)
Allowable distance
of signal extension Approx. 50m (depending on wiring environment)
Physical
dimensions (mm) 188.0(W)×78.0(D)×30.5(H) (No protrusions)
Weight 300g (Not including the USB cable, attachment)
Connector 10 pin (screw-terminal) plug header x4
Attached cable USB cable 1.8m
*1 Data "0" and "1" correspond to the High and Low levels, respectively.
*2 The Optocoupler's response time comes.
*3 This depends on the PC environment used (OS and USB host controller).
*4 As a USB hub is also counted as one device, you cannot just connect 127 USB unit.
*5 External circuit power supply is required.
*6 To suppress the heating, ensure that there are spaces for ventilation (about 5cm) around
this product.
