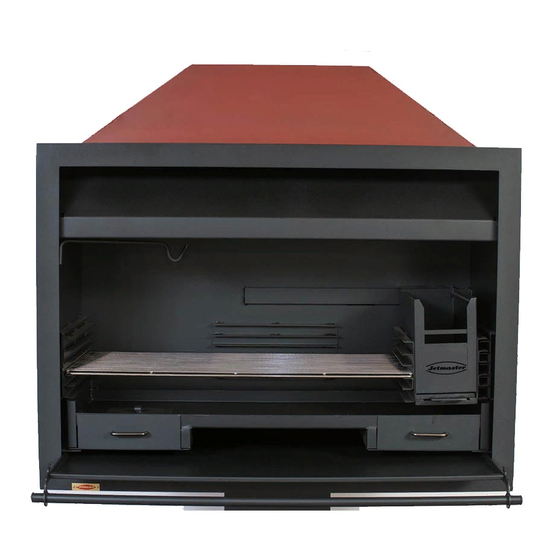

OPEN FIREPLACES
INSTALLATION AND OWNERS MANUAL
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a fire hazard and will void the warranty.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate poisonous
gases (i.e. carbon monoxide).
!
If the information in these instructions is not followed exactly, a fire could result causing
property damage, personal injury, or death.
WARNING
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Do not over fire - If appliance or chimney connector glows, you are over firing. Over firing will
void your warranty.
• Comply with all minimum clearances to combustibles as specified. Failure to comply may
cause a house fire.
1200 & 1500 UNITS
INSTALLATIONS TO COMPLY WITH
AS/NZS2918:2018 AND WILL REQUIRE A
BUILDING CONSENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jetmaster 1200

Summary of Contents for Jetmaster 1200

  • Page 1 OPEN FIREPLACES INSTALLATION AND OWNERS MANUAL 1200 & 1500 UNITS IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these instructions may result in a fire hazard and will void the warranty. WARNING INSTALLATIONS TO COMPLY WITH Fire Risk.

  • Page 2: Table Of Contents

    Introduction and contents Thank you for purchasing a Jetmaster fireplace. Please read this manual carefully to ensure the correct installation. There are different methods of installing a Jetmaster fireplace depending on the unit size. Before conducting any works, please go to the relevant section of this installation manual.

  • Page 3: Getting Started

    Range hoods May allow flue gases to enter the house. • Combustion air requirements for furnaces, water appliances and other combustion appliances NOTICE: JETMASTER ASSUMES NO • Clothes dryers RESPONSIBILITY FOR THE IMPROPER • Location of return-air vents to furnace or air...
  • Page 4 WARNING WARNING Fire Risk. Fire Risk. Inspect appliance and components for damage. JETMASTER VIC disclaims any responsibility Damaged parts may impair safe operation. for, and the warranty will be voided by, the • Do NOT install damaged components. following actions: •...

  • Page 5: Components And Specifications

    • 1200 and 1500 single spigot gathers protrude well past the back of the firebox. Refer to page 7 and 8 for instructions clearance and cavity instructions. Gather must be securely bolted to the unit Optional 3 and 4 sided 100mm surrounds are available.

  • Page 6: Components And Specifications

    Other solid fuel cowls may be desired to achieve a visual design and such cowls can be used but must not restrict airflow from the flue pipe casings. For gas applications an AGA approved cowl must be used. Logpan Firescreen - optional MODEL 1200 1110 1195 1500 1400 1495 •...
  • Page 7 3. Timber framing specification UNIT A - HEIGHT B - WIDTH C - DEPTH 1200 - SINGLE SPIGOT 1600 1430 1200 - DOUBLE SPIGOT 1600 1430 1500 - SINGLE SPIGOT 1600 1730 1500 - DOUBLE SPIGOT 1600 1730 Note: Timber framing should be constructed using normal framing methods. Image above is an example only.

  • Page 8: Clearance Requirements

    900mm Minimum 1650mm - 1200 unit 200mm Minimum 1900mm - 1500 unit Fig 3.4 Clearance to an adjacent wall for units 1500 & 1200 and should be 1200mm in all directions as per clause 3.2.2(b) 2918:2018 Page 7...

  • Page 9: Clearance Requirements

    4. Clearance requirements The Jetmaster 1500 and 1200 Open Fronted Fireplace and 75mm Hebel PowerPanel enclosure are to be installed with a 455mm double skin flue kit (1500 single spigot gather) and 405mm double skin flue kit (1200 single spigot gather).

  • Page 10: Flue & Chimney Requirements

    4. Flue & chimney requirements Location of the appliance and chimney will affect ceiling attic joists and rafters. performance. As shown in Figure below the chimney should: • Locate termination cap away from trees, adjacent structures, uneven roof lines and other obstructions. •...

  • Page 11: 10 5. Flue & Chimney Requirements

    5. Flue & chimney requirements cont... Active stainless steel Single skin flue (stainless steel) must be completely enclosed with Outer Gal casing single skin brickwork, concrete, or autoclaved aerated concrete Support angles block. A chimney plate will be used to weather seal the chimney. Twin skin flues (stainless steel inner, and galvanised outer) can either be left exposed or enclosed with stud walls and sheet plaster Combustible ceiling...

  • Page 12: General Use

    How to use the wood fireplace Your Jetmaster fireplace is designed not to spill smoke and by following a few instructions you will achieve optimum heat output, convenience and fuel economy. Please note that during the first fire the paint goes through a bonding process called curing which may emit odours.
  • Page 13 The amount of you pay for your wood does not justify how dry the wood is. The only way to know how dry your wood is, is to The visible parts of your Jetmaster can be cleaned with a damp use a moisture meter measuring from the inner core of the cloth or soft brush.
