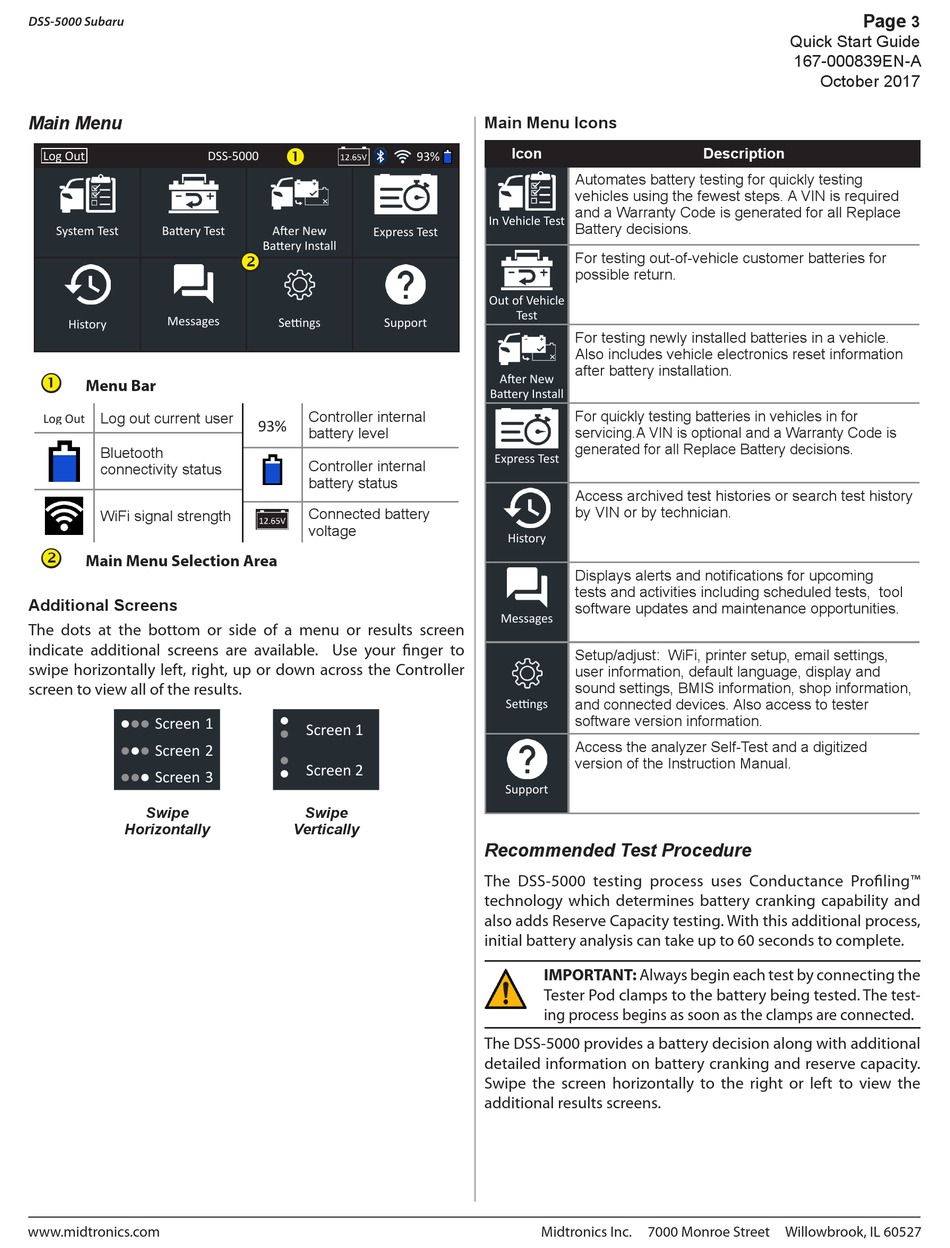

Midtronics DSS-5000 Quick Start Manual page 3

DSS-5000 Subaru
Main Menu
Log Out
System Test Battery Test
Messages
History

Menu Bar
Log out current user
Log Out
Bluetooth
connectivity status
WiFi signal strength

Main Menu Selection Area
Additional Screens
The dots at the bottom or side of a menu or results screen
indicate additional screens are available. Use your finger to
swipe horizontally left, right, up or down across the Controller
screen to view all of the results.
Screen 1

Screen 2

Screen 3

Swipe
Horizontally
www.midtronics.com

DSS-5000
After New
Express Test
Battery Install

Settings Support
Controller internal
93%
battery level
Controller internal
battery status
Connected battery
voltage

Screen 1


Screen 2

Swipe
Vertically
Main Menu Icons
Icon
93%
Automates battery testing for quickly testing
vehicles using the fewest steps. A VIN is required
and a Warranty Code is generated for all Replace
In Vehicle Test
Battery decisions.
For testing out-of-vehicle customer batteries for
possible return.
Out of Vehicle
Test
For testing newly installed batteries in a vehicle.
Also includes vehicle electronics reset information
after battery installation.
After New
Battery Install
For quickly testing batteries in vehicles in for
servicing.A VIN is optional and a Warranty Code is
generated for all Replace Battery decisions.
Express Test
Access archived test histories or search test history
by VIN or by technician.
History
Displays alerts and notifications for upcoming
tests and activities including scheduled tests, tool
software updates and maintenance opportunities.
Messages
Setup/adjust: WiFi, printer setup, email settings,
user information, default language, display and
sound settings, BMIS information, shop information,
and connected devices. Also access to tester
Settings
software version information.
Access the analyzer Self-Test and a digitized
version of the Instruction Manual.
Support
Recommended Test Procedure
The DSS-5000 testing process uses Conductance Profiling™
technology which determines battery cranking capability and
also adds Reserve Capacity testing. With this additional process,
initial battery analysis can take up to 60 seconds to complete.
IMPORTANT: Always begin each test by connecting the
Tester Pod clamps to the battery being tested. The test-
ing process begins as soon as the clamps are connected.
The DSS-5000 provides a battery decision along with additional
detailed information on battery cranking and reserve capacity.
Swipe the screen horizontally to the right or left to view the
additional results screens.
