Outputs - DEVA Broadcast DB3012 Maintenance And Operation Instruction Manual

Outputs

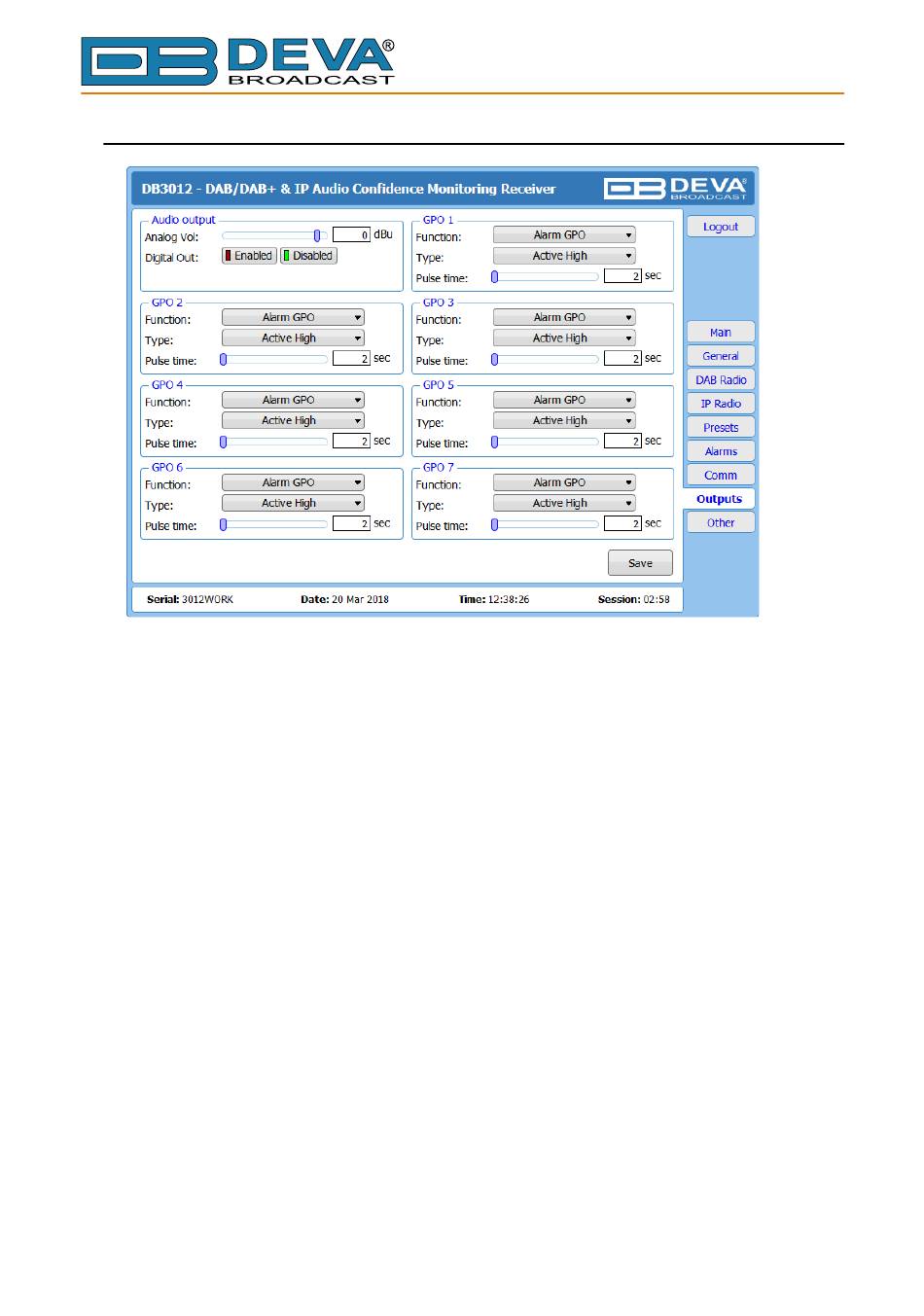

The general purpose outputs settings are applied through this page. The Audio output section
allows Audio Vol for the analog output to be set, and the Digital Out to be [Enabled] or [Disabled].
Type and Pulse time for each of the GPOs could be set individually. The GPO's Function as an
Alarm GPO only. Type is used for specifying of the active level or active pulse polarity. When a
GPO assigned event is triggered the output can change the level to Active High/Low or to generate
High/Low Pulse for the specified duration.
PLEASE NOTE that if the GPO's function is not assigned as Alarm GPO and the selfsame is
chosen as a preferred alarm, notifications will not be indicated, nevertheless one is being generated.
