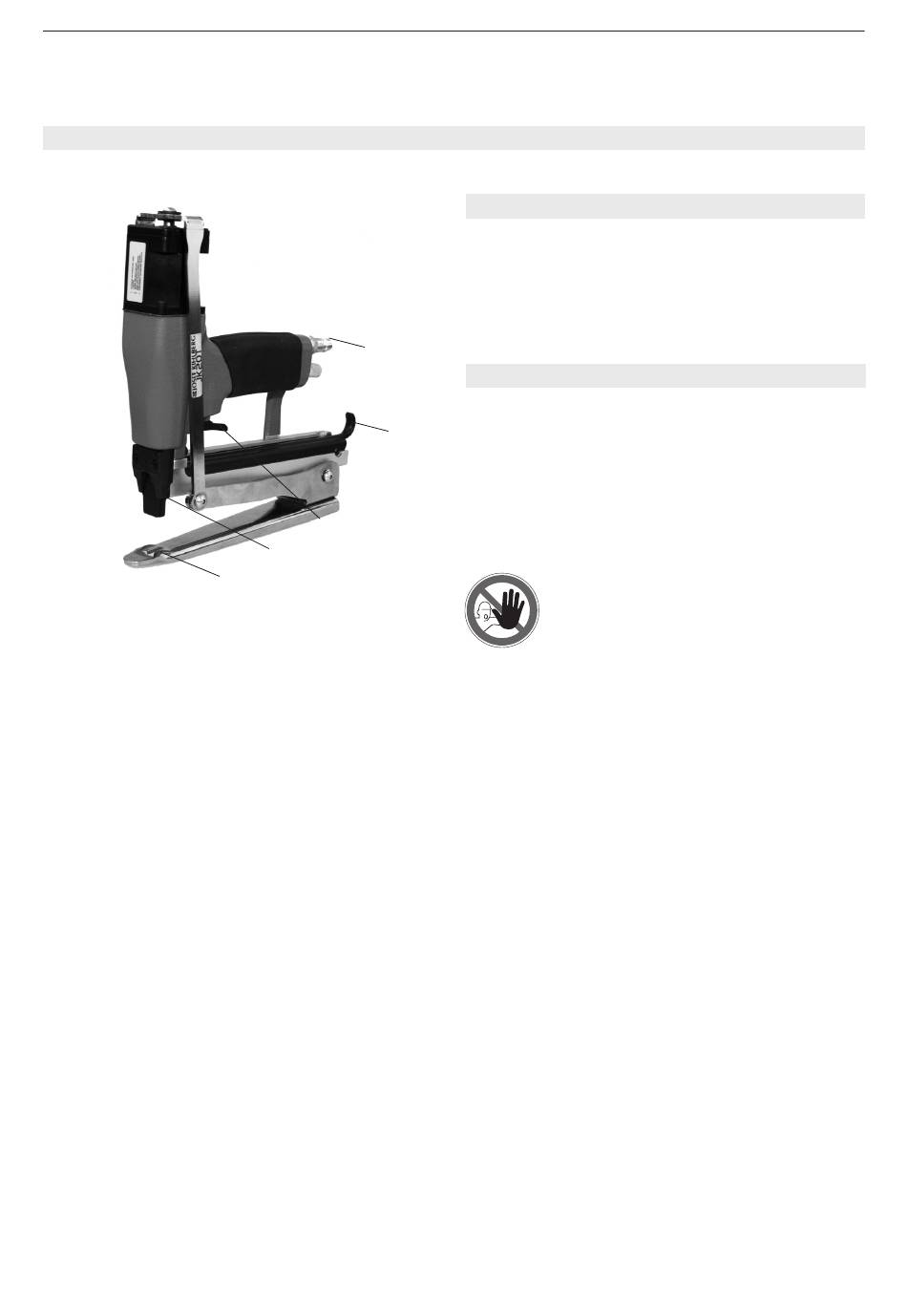

Fig. 1
05.20

DESCRIPTION

5
4
3
2
1

4.1 DESIGN

1 Anvil
2 Door
3 Trigger
4 Magazine lid
5 Nipple

4.2 FUNCTION

The pliers JK20T has only single shot firing without
safety yoke.
1. First place the tool around the work piece,
2. then pull the trigger (Fig.1/3).
To avoid damage to the driver blade in the tool, never
fire it without any work piece.
Warning: before stapling ensure that
your hand or any other part of your
body is not underneath the nozzle.
Josef Kihlberg JK20T779
