Signode WTD-2 Operation, Safety And Parts Manual

Manual strap tensioner for use with plastic strapping only

Download this manual

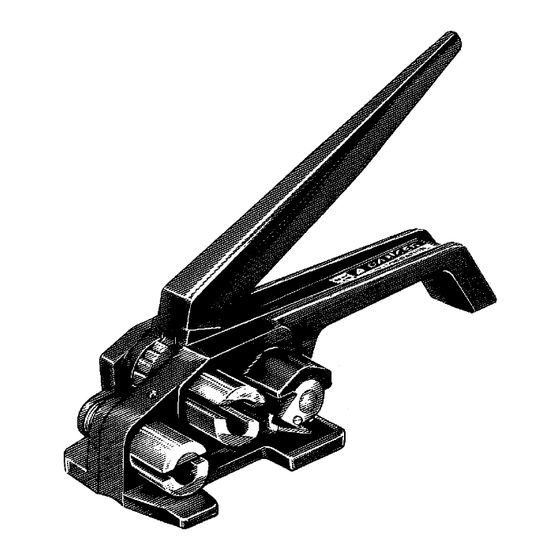

WTD-2 MANUAL STRAP TENSIONER

FOR USE WITH PLASTIC STRAPPING ONLY

Part No. 260060

TOOL SPECIFICATIONS

STRAP TYPE

WIDTH

THICKNESS

Dymax, Contrax, Tenax

1/2"(12mm)

.015"(0.38mm) to .030"(0.76mm)

IMPORTANT - DO NOT DESTROY THIS MANUAL. It is the customer's responsibility to have all operators

and service personnel read and understand this manual. Contact your local Signode representative for

additional copies of this manual.

Need help?

Do you have a question about the WTD-2 and is the answer not in the manual?

Page 1 .015"(0.38mm) to .030"(0.76mm) IMPORTANT - DO NOT DESTROY THIS MANUAL. It is the customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local Signode representative for additional copies of this manual. © Copyright 2003, Signode 186125 Rev. 3/2003...
Page 2 IN SERIOUS PERSONAL INJURY. STRAP BREAKAGE HAZARD Improper operation of the tool or sharp corners on the load Use correct Signode products for your application. If you can result in strap breakage during tensioning, which could need help contact your Signode Representative.
Page 3: Operating Instructions
OPERATING INSTRUCTIONS ! ! Wear safety glasses which conform to American National Safety Institute Standard Z87.1 or Euro Norm 166. ! ! Stand to one side of the strap while tensioning. Make sure all bystanders are clear before proceeding. ! ! Do not pull the tension handle to the rear while tensioning so as to contact the gripper cam. Doing so will cause the tensioned strap to release.
Page 4 PARTS LIST, WTD-2 (260060) QTY. PART# DESCRIPTION 260058 Handle 424266 Housing base 260062 Gripper shaft assy. 260063 Windlass 260064 Ratchet wheel 260066 Gripper spring, LH 424267 Cutter sleeve 260068 Ratchet stop 260069 Ratchet spring 424268 Cutter 260071 Cutter cam 260072...

260060
