Installation Guide
4
Installation
4.1

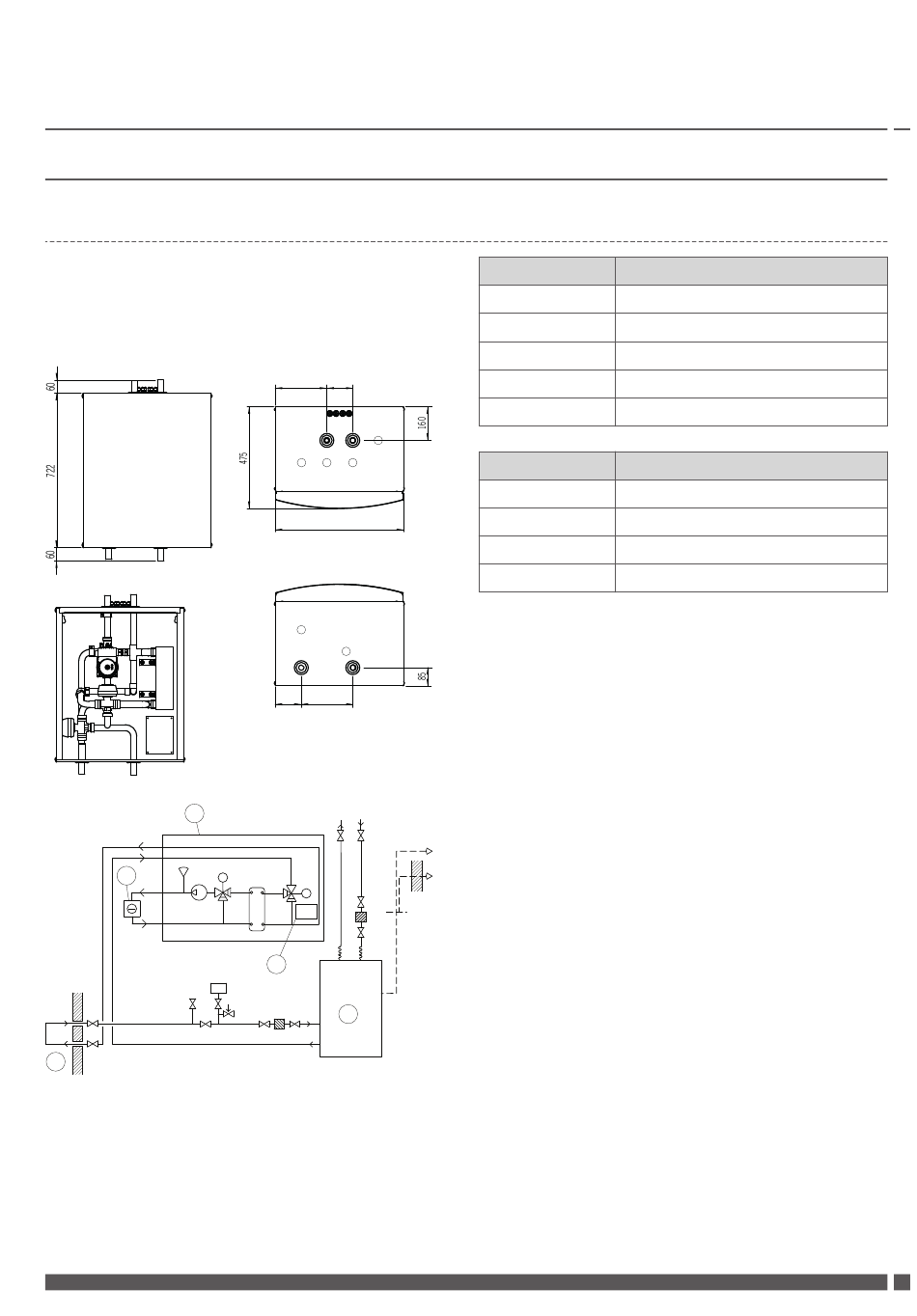

Dimensions and connections, Passive
The cooling module must be mounted vertically on a
wall. The central distance between holes is 530 mm.
Pipe installation is carried out according to the dia-
grams.
1
A
B
2
H
J
5
Danfoss Heating Solutions
Cooling module for domestic heat pump (Genesis platform),
Passive and Passive/Active
245
120
H
J
599
B
A
125
240
3
4
Position
Name
1
Cooling module
2
Fan coils
3
Expansion card
4
Heat pump
5
Ground source
Position
Name
A
Brine line out 1
B
Brine line in 1
H
Cooling supply line
J
Cooling return line
VIMAB102
9
