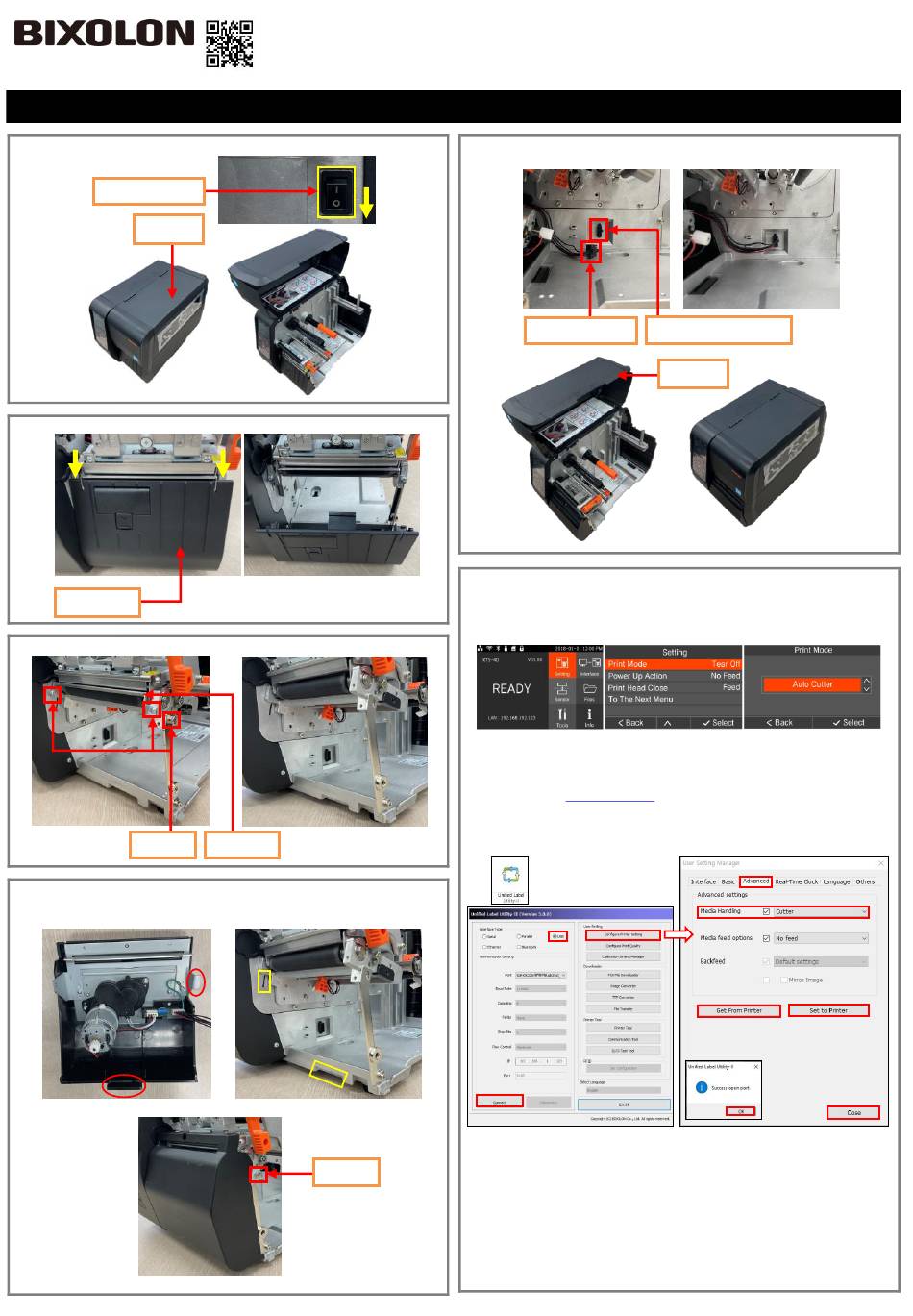

BIXOLON XT5 Series How To Mount

KN04-00220A (Ver.1.0)
1. Turn the Power Switch Off at the rear of the Printer and open the Cover.
Power Switch
Cover
2. Disassemble the Cover STD by pressing it down (yellow arrow).
Cover STD
3. Loosen 3 screws and the tear bar.
Screw
4. Insert & assemble the hook on the red circle mark into the yellow mark and tighten
the screw loosened in step 3.
※ When assembling, be careful not to pinch the wire.
Off
Tear Bar
Screw

How to Mount Auto Cutter

5. Insert the Auto Cutter Wire into the Auto Cutter Connector in the direction, and
the close the cover.
Auto Cutter Wire
9. In order to operate Auto-cutter, change the printer settings.
1) By using the LCD
* Setting → Print Mode → Select the Auto Cutter
2) By using the Utility
- After downloading "Unified Label Utility" from the BIXOLON
Hompage(www.bixolon.com), connect the Data cable(=USB) and turn on
the printer, then Change the settings in the following order.
①
⑤
②
③
① Launch 'Unified Label Utility'
② 'USB' Click!
③ 'Connect' Click!
④ 'OK' Click!
⑤ 'Configure Printer Setting' Click!
XT5 Series
Auto Cutter Connector
Cover
⑥
⑧
⑦ ⑨
④
⑩
⑥ 'Advanced' Click!
⑦ 'Get From Printer' Click!
⑧ Media Handling 'Cutter' Setting!
⑨ 'Set to Printer' Click!
⑩ 'Close' Click!
