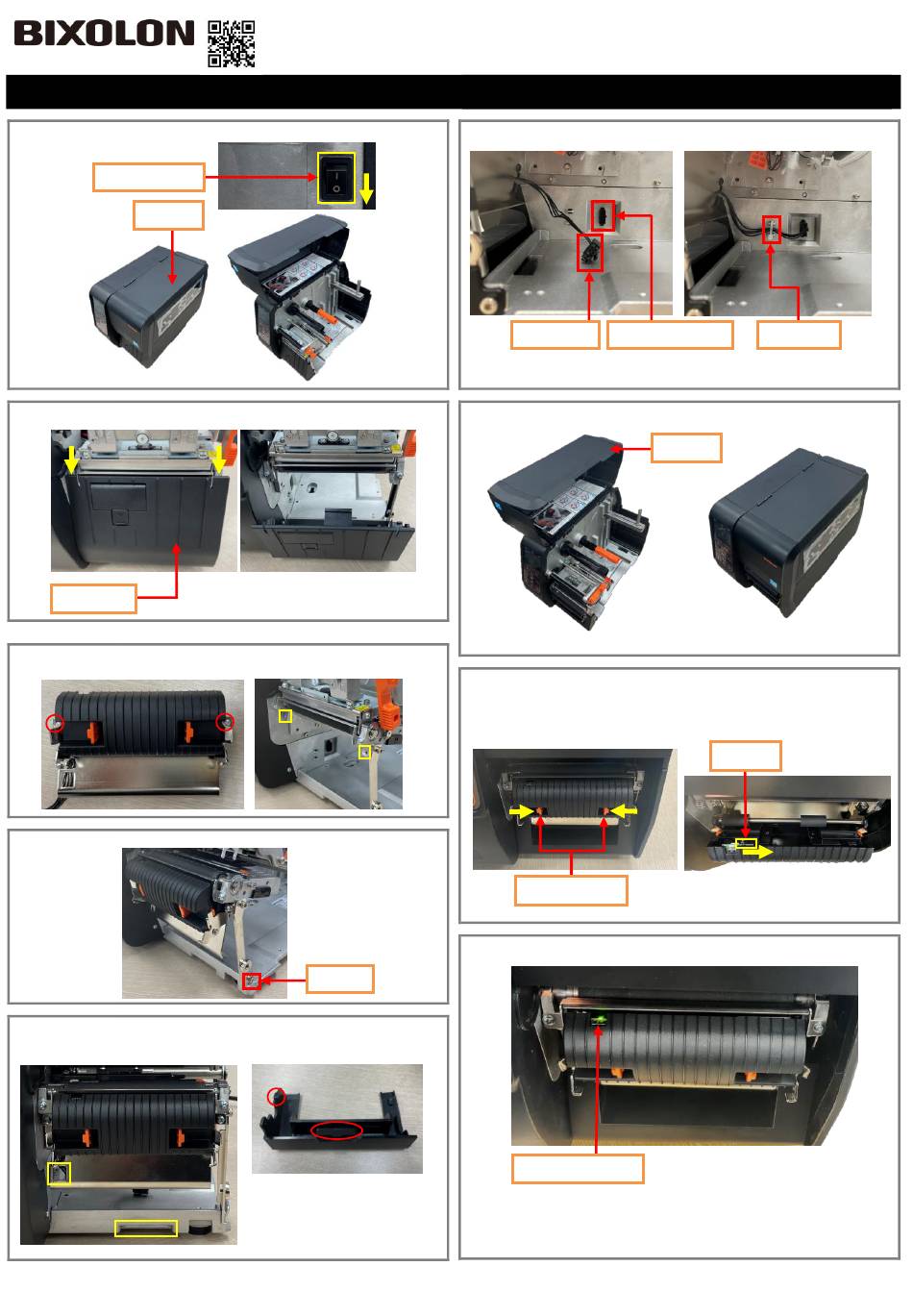

BIXOLON XT5 Series How To Mount

KN04-00219A (Ver.1.0)
1. Turn the Power Switch Off at the rear of the Printer and open the Cover.
Power Switch
Cover
2. Disassemble the Cover STD by pressing it down (yellow arrow).
Cover STD
3. Align the red marked part with the yellow square groove, and assemble with 2
screws provided.
4. Loosen 1(one) side Screw at the below red marked.
4. Insert & assemble the hook on the red circle mark into the yellow mark and tighten
the screw loosened in step 4.
※ When assembling, be careful not to pinch the wire.
5. Insert Peeler Wire into Peeler Connector and arrange wire with Cable Tie.
Off
6. Please close the Cover.
7. Press the Peeler Lever inward (yellow arrow) to open the cover, and change
the Switch to On. Then close the Peeler Cover until it clicks into place.
8. Turn on the power and check if the Peeler Sensor LED turns green.
.
Screw
※ Refer to the User Manual for how to install paper.
How to Mount Peeler
Peeler Connector
Peeler Wire
Cover
Peeler Lever
Peeler Sensor LED
XT5 Series
Cable Tie
Switch
On
