General Description
The LM10507 is an advanced PMU providing four regulated outputs from three configurable high
efficiency buck regulators and one LDO regulator. The device can operate in a stand-alone application but
external inputs and an SPI serial interface provide the ability for an external system device to control the
device outputs. The device has been designed to support ASIC and SOC power requirements for SSD
and Flash drives.
2
Evaluation Kit Overview
LM10507 Evaluation Kit is a self-contained evaluation platform allowing access to the device outputs with
software provided to test the device control functions. The EVM is designed to be connected to a
computer via a USB cable and can be powered from this input or may be powered from an external
supply. It may also be used as a stand-alone board (powered externally) to provide the pre-set default
output values from the LM10507 device.
The evaluation kit consists of:
LM10507 Evaluation board REV 1
USB Interface cable
CD including
– Evaluation software
– LM10507 datasheet
Evaluation kit document
SNVU409 – May 2014
Submit Documentation Feedback

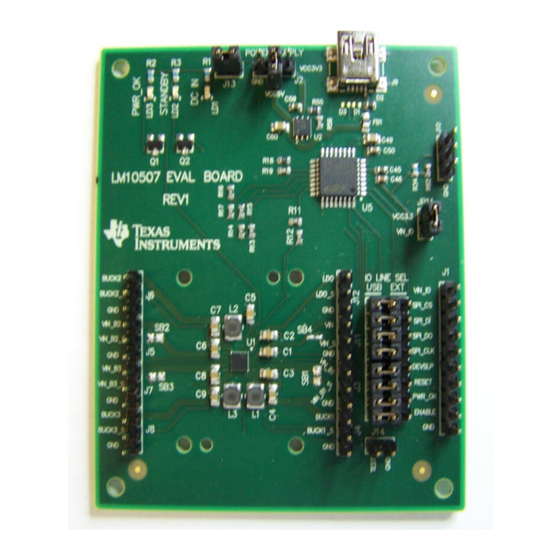

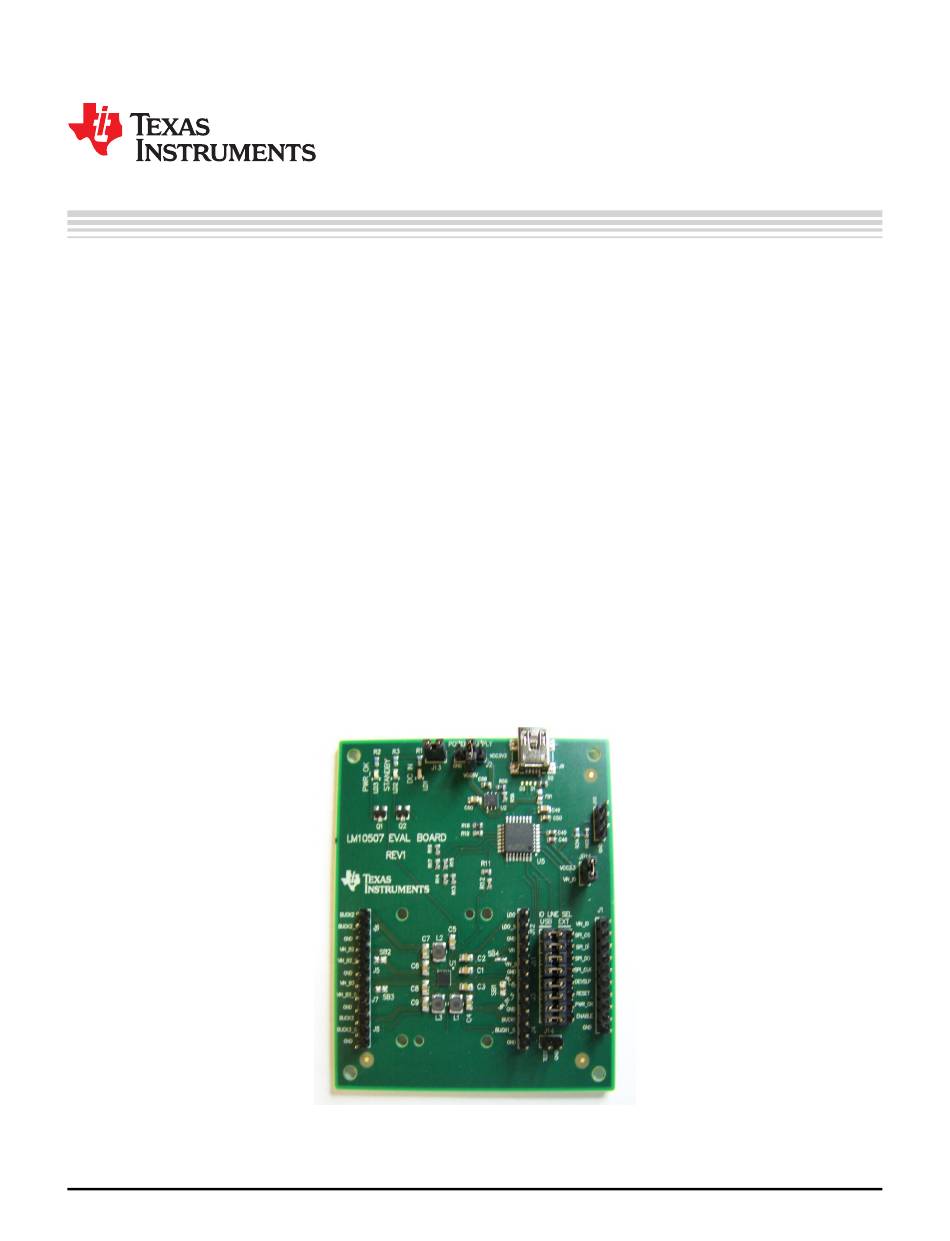

Figure 1. LM10507 Evaluation Board
Copyright © 2014, Texas Instruments Incorporated
SNVU409 – May 2014
LM10507 User's Guide
LM10507 User's Guide
User's Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LM10507 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments LM10507

  • Page 1 Flash drives. Evaluation Kit Overview LM10507 Evaluation Kit is a self-contained evaluation platform allowing access to the device outputs with software provided to test the device control functions. The EVM is designed to be connected to a computer via a USB cable and can be powered from this input or may be powered from an external supply.
  • Page 2 “lm10507” to your PC’s hard disk. The software is run by double clicking the icon of lm10507.exe found in folder. The software does not require any installation. The evaluation software allows control of all registers necessary to program the device. To simplify the use of the software, the registers are set by directly named controls.
  • Page 3 Once the evaluation board is connected to the PC, the device can be controlled via the software interface. The LM10507 will become active as soon as the USB cable is plugged in and ‘Power UP’ is clicked. When USB cable is plugged in, an orange led LD1 (DC IN) is illuminated. When the device starts up correctly, a green led LD1 (PWR_OK) is lit.
  • Page 4 Under “File” menu, the user can save and load contents of the device registers. Under “Tools” menu the user can open “Direct Register Access” dialog, shown in figure 4. LM10507 User's Guide SNVU409 – May 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 5 ‘I/O LINE SEL’. Set the jumper block from JP2 to JP9 accordingly. Table 2. User Connector Pins USER CONNECTOR J1 Function VIN_IO SPI_CS SPI_DI SNVU409 – May 2014 LM10507 User's Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 6 Table 6. Connector J6 Pins Function BUCK2 BUCK2 sense Table 7. Connector J7 Pins Function VIN_B3 VIN_B3 sense Table 8. Connector J8 Pins Function BUCK3 BUCK3 sense LM10507 User's Guide SNVU409 – May 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 7 Table 8. Connector J8 Pins (continued) Function Table 9. Connector J11 Pins Function VIN sense Table 10. Connector J12 Pins Function LDO sense SNVU409 – May 2014 LM10507 User's Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 8 Jumper SH-J1 installed between J2 pins2 - 3 for default 3.8V operation Assembly Note Jumper SH-J11 installed between J11 pins1 - 2 for internal VIN_IO Figure 5. LM10507 Evaluation Board (sheet1) LM10507 User's Guide SNVU409 – May 2014 Submit Documentation Feedback...
  • Page 9 P1.4 B2_S BUCK2 10.0k P1.3 P0.0 SPI_CLK_USB 10.0k P1.2 P0.1 SPI_DO_USB LDO_S 10.0k 10.0k SPI_DI_USB PWR_OK_USB SPI_CS_USB Figure 6. LM10507 Evaluation Board (sheet 2) SNVU409 – May 2014 LM10507 User's Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 10 Evaluation Board Layer www.ti.com Evaluation Board Layer Figure 7. LM10507 Board Top Layer LM10507 User's Guide SNVU409 – May 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 11 Evaluation Board Layer www.ti.com Figure 8. LM10507 Board Inner Layer 2 SNVU409 – May 2014 LM10507 User's Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 12 Evaluation Board Layer www.ti.com Figure 9. LM10507 Board Inner Layer 3 LM10507 User's Guide SNVU409 – May 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 13 Evaluation Board Layer www.ti.com Figure 10. LM10507 Board Inner Layer 4 SNVU409 – May 2014 LM10507 User's Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
