QUICK START GUIDE
Kinesis
Savant Elite2
®
Config App, Models FP30A, FP30AJ & FPW30A-IPX8
There is no software or special drivers to install — all you need is a USB port. The Savant Elite2
works with Windows, Mac, Android, and Linux. SmartSet Config App versions are onboard for
graphical programming in Windows & OSX. Visit the SE2 Resources page for full User's Manual
including how to program in Android and Linux: www.kinesis.com/savant-elite2-resources/.
LANGUAGE NOTE: You must use U.S. English keyboard driver when re-programming your device,
then switch back to your normal language.
DEFAULT CONFIGURATION

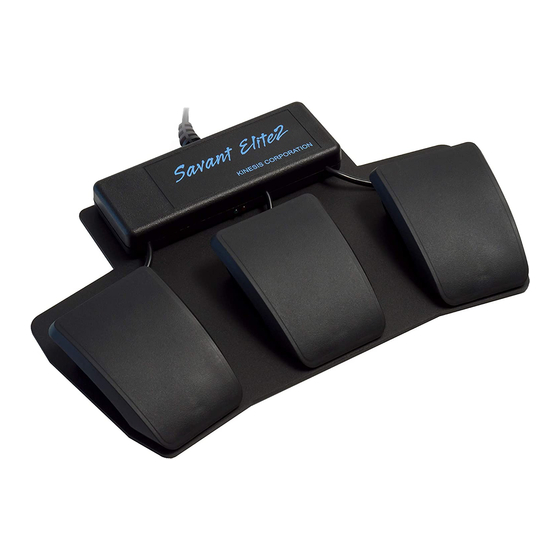

Your Savant Elite2 Triple Pedal comes with three or four factory-programmed actions:
To use your Savant Elite2 Triple Pedal with the factory-programmed actions:
1. Plug the USB cable into your computer.
2. The red LED will illuminate and a device installation notice will appear.
3. When the green LED illuminates, the device is ready to use with the pre-programmed actions.
4. To access Jack 1 on FP30AJ models, connect a Kinesis stand-alone foot pedal or hand trigger
(sold separately).
© 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are
trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
™
22030 20th Avenue SE, Suite 102, Bothell, Washington 98021 USA
sales@kinesis.com, 800-454-6374, www.kinesis.com
Triple Pedal & SmartSet
Jack 1 (FP30AJ Models Only)
Left Mouse Button Single Click
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinesis Kinesis Savant Elite2 FP30A
Summary of Contents for Kinesis Kinesis Savant Elite2 FP30A
- Page 1 800-454-6374, www.kinesis.com © 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
- Page 2 The SmartSet app is preloaded onto each Savant Elite2 device (both Windows and Mac versions). The app resides on a virtual drive (v-drive™) named “KINESIS FP ” which is only accessible from your computer when the device is placed into Program Mode. No special installation is required other than the auto-install performed by your computer when you first activate Program Mode.
- Page 3 DEPRESS A PEDAL BRIEFLY WHILE PLUG- GING IN THE USB. The red LED will illuminate briefly. 2. Once the LED changes to flashing green, OPEN the “KINESIS FP ” drive. If you do not see an AutoPlay popup, look in “My Computer”...
- Page 4 2. If the Keyboard Setup Assistant pops up, CLOSE that win- dow or SKIP the setup. 3. Once the LED changes to flashing green, OPEN the “KINESIS FP ” drive. If you do not see the icon on the desktop, look in Finder >...
