- Page 1 Savant Elite2 Programmable USB Foot Pedal Family User’s Manual ...

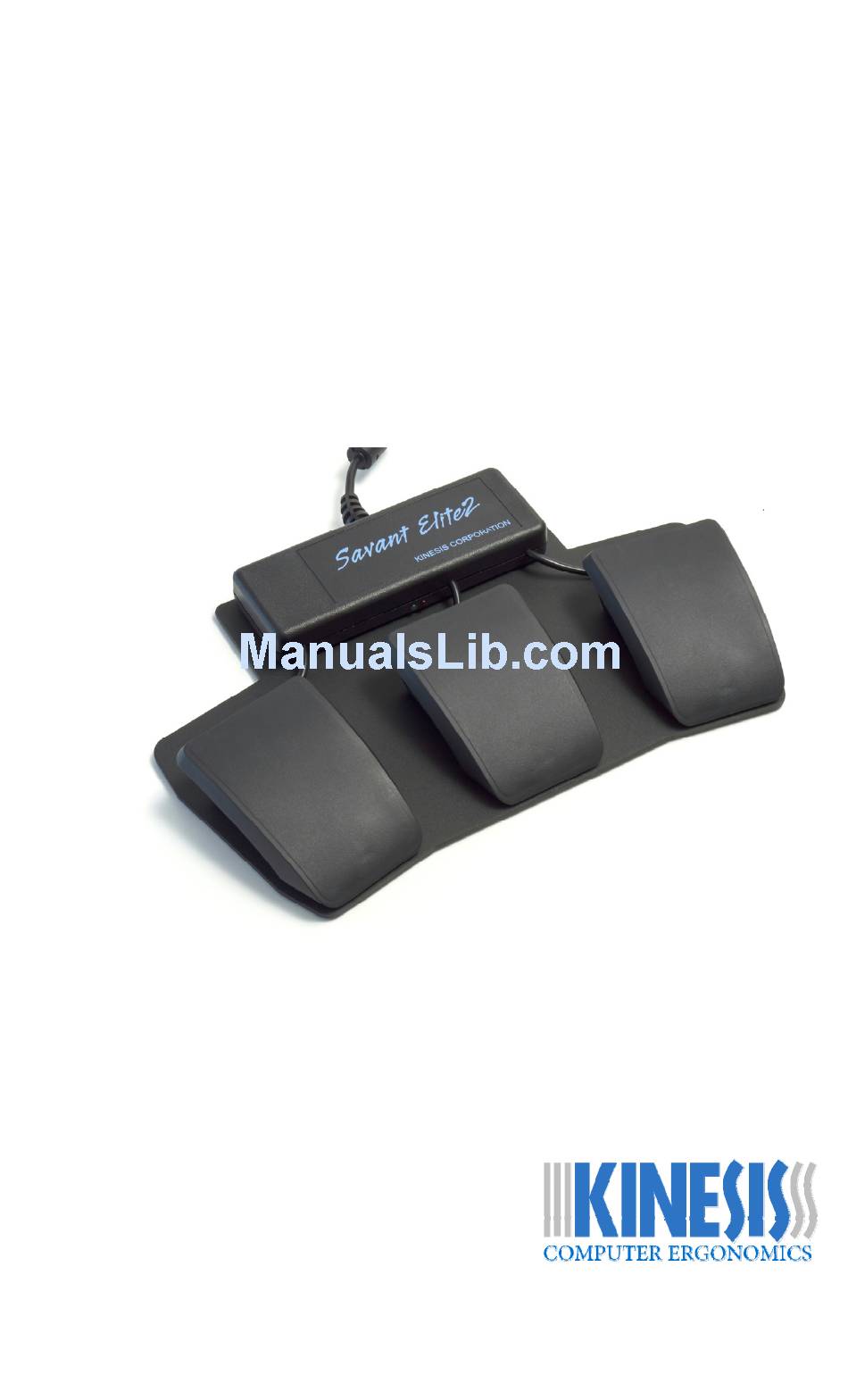

- Page 3 User’s Manual for Kinesis Savant Elite2 ® ™ USB Foot Pedal Family, Programmable (keyboard/mouse button emulation) For any USB‐enabled system capable of providing generic HID drivers for keyboard, mouse, and removable disk drive. This document is designed to be a quick overview and reference guide for installing, using and maintaining your Savant Elite2 foot pedal. A separate Programming Guide stored digitally on your device and available for download at kinesis.com/support has the details needed for custom programming it. Models covered: FP10J: control module with two input jacks, bundled with one pedal FP20A: dual angled pedals mounted on steel base FPW20A‐IPX8: waterproof dual* FP20AJ: dual pedals with one jack for extra pedal or hand trigger FP30A: triple angled & adjustable pedals, mounted on steel base FPW30A‐IPX8: waterproof triple* FP30AJ: triple pedals with one jack for extra pedal or hand trigger FPMJ2: control module only, with two input jacks FPMJ4: control module only, with four input jacks Triple pedal, FP30A Single foot pedal, FP10J ...
- Page 4 INDUSTRY CANADA COMPLIANCE STATEMENT AGENCY & REGULATORY APPROVALS This Class B digital apparatus meets all requirements of the Canadian Interface‐ Overview causing Equipment Regula ons. Cet Ap‐ FCC/CE Class B for IT and medical applica‐ pareil numérique de la classe B respecte ons toutes les exigences du Règlement sur le UL recognized component for near pa ent matérial broilleur du Canada. use in US & Canada, ETL control number 4007055. Conforms to UL 60601‐1, Cer ‐ fied to CSA STD C22.2 NO.601.1 CE COMPLIANCE FOR EMISSIONS AND IMMUNI- RoHS Compliant (lead‐free) TY This device has been tested to comply with the following European standards for emissions and immunity for ITE and medical equipment: En 55022, En 55024, EN 61000‐3‐2/3, and EN 60601‐1‐2. MEDICAL PRODUCT SAFETY FEDERAL COMMUNICATIONS COMMISSION Savant Elite2 products are recognized compo‐ RADIO FREQUENCY INTERFERENCE STATEMENT nents, conforming to UL standard 60601‐1; Cer ‐ This equipment has been tested and found to fied to CSA standard C22.2 NO. 601.1. The ETL comply with the limits for a Class B digital device, lis ng number is 4007055. ...
-
Page 5: Table Of Contents
Adjus ng pedal force ……..…………………….……... 10 Cleaning & maintenance …………..……………………. 11 Technical support …………………………………...…….. Kinesis limited warranty ……………..………...….…... Read me first If you are familiar with using USB input devices, and you are impa ent to get started and plan to use the default pedal ac ons, at least read the re‐ ve strain cau on below. You can also familiarize yourself with the pro‐ gramming process before using your new device by downloading the Savant Elite2 Programming Guide at h p://www.kinesis‐ergo.com/ support/technical‐support/manuals‐drivers. Repe ve strain cau on Con nuous use of any computer input device may cause aches and pains or a more serious cumula ve trauma disorder (CTD) such as tendini s. Observe sensible guidelines when using any computer input device to help minimize the possibility of injury. Follow established guidelines for computer and worksta on setup. Exercise good judgment in placing reasonable limits on your computer usage me every day. ... - Page 6 6 ...
-
Page 7: Overview, Features & Compa Bility
Many users will simply assign a commonly Overview, features & used keyboard ac on to a pedal, such as compa bility Backspace or Tab. However, avoid using ac ons that require so much repe on that you create exhaus on and poten al over‐ Common Features of all Savant Elite2 use of your feet and lower legs. models Pedal(s) front hinged, low‐profile, Simple macros are also a great use of the force‐adjustable. Savant Elite2. Commonly used commands USB plug and play: no special drivers for par cular applica ons (e.g. Ctrl‐F1). needed to use or to reprogram the Frequently‐used shi ed characters (e.g. the device on PC, Mac, Linux, Android, @ symbol using a tradi onal keyboard) can and Chrome. also be assigned to a pedal as a simple Performs keyboard ac ons and mac‐ macro. ros, including le mouse double click. ... -
Page 8: Installa On
Supported opera ng systems h p://www.kinesis‐ergo.com/support/ Windows: Full feature support is provided technical‐support/manuals‐drivers. under Windows 7, Windows 8 and earlier versions which support USB. Programming Ac va ng “Programming Mode” creates a Most features are also supported under virtual removable disk (VRD) named Linux, Android, and Chrome. KINESIS‐FP on your computer or tablet. That virtual disk contains a copy of the Macintosh systems (OS X 10.5 & newer): Most features are supported. However, OS Programming Guide, which has extensive X does not allow one USB device to modify details and examples. The VRD also con‐ another, so a pedal programmed as modifi‐ tains a folder named “Ac ve” in which a er key can only be used in combina on text file named pedals.txt resides. with another pedal on the same device, not Pedals.txt contains the complete configura‐ with a key on a keyboard. However, a pedal ... -
Page 9: Health & Safety Ps
NOTE: DO NOT PRESS ANY PEDALS WHILE of weeks before you no ce a difference. At WAITING FOR VRD TO CLOSE. IF YOU DO SO first, you may feel some new fa gue or AND THE DEVICE STOPS WORKING, JUST discomfort as you adapt to your Kinesis UNPLUG IT, WAIT 15 SECONDS , THEN RE‐ foot pedal. CONNECT THE DEVICE. ... -
Page 10: Cleaning & Maintenance
together at the factory but can easily be‐ Cleaning & maintenance come separate by handling. If this happens Occasional external cleaning is recom‐ it is not a defect but more care is required mended by wiping the pedals and electron‐ during the re‐assembly process. ics enclosure with a damp cloth. Alterna‐ vely, a cloth dampened with rubbing alco‐ The T‐lever is press‐fi ed into the switch hol (70% isopropanol) may be used though well a er the switch has been snapped into any silk‐screened graphics on the electron‐ posi on. Be sure it is pressed down un l ics enclosure may be damaged over me the shoulder be‐ Fig 3. Exploded view of by solvent effects. Savant Elite2 products low the hinge cartridge are not designed to be sterilized or to be point is res ng used in a sterile environment. on the rim of the switch well Access to the inside of the pedal for occa‐ (Fig 3). The sional internal cleaning may be accom‐ switch snaps ... -
Page 11: Technical Support
back to play mode or power cycling (replugging) the unit will regenerate a de‐ fault pedals.txt file in the ac ve folder. See page 7 for the default ac ons of your device. If these steps don’t restore the func onality of the device, contact Kinesis Technical Support for further assistance. Contac ng Kinesis Technical Support Contact Kinesis technical support only a er you have read the en re User’s Manual and s ll have problems or unanswered ques ons. Contact Kinesis Technical Sup‐ ... -
Page 12: Kinesis Limited Warranty
Kinesis Limited Warranty Kinesis Corpora on (“Kinesis”) warrants to the original retail purchaser that this Kinesis product (“Product”) is free from defects in materials and workmanship and will perform substan ally in accordance with the Product documenta on for two years from the date of purchase. This Warranty does not apply to any so ‐ ware or diske es which might have been enclosed with the product, which are covered by a Kinesis License Agreement. If Product fails due to accident, abuse, inappropriate use, or normal wear, Kinesis shall have no responsibility under this Limited Warranty. Purchaser’s Exclusive Remedies During the first TWO (2) years a er the date of original purchase, the exclusive remedy for a defect in this Kinesis Product shall be, at Kinesis Corpora on’s op on, either repair or replacement of the product. If you suspect the Product is not working properly or if you have ques ons about the performance of the Product, contact Kinesis technical support. If you wish to return the Product to Kinesis for any reason, you must obtain from Kinesis an RMA number and instruc ons for returning the product. You are responsible for the cost of shipping the product to Kinesis. Within the United States and Canada, Kinesis will ship products repaired or replaced under warranty to you by ground at no charge. Repair parts and replacement Product will be either recondi oned or new. Disclaimer of Other Warran es The warranty and remedies set forth above are exclusive and in lieu of all others, whether oral or wri en, express or implied. Kinesis specifically disclaims any and all implied warran es, including, without limita on, warran es of merchantability and fitness for a par cular purpose. No ...
