Kinesis Savant Elite2 Quick Start Manual

Module & programmable usb foot pedal with smartset config app, model fp10j
Hide thumbs Also See for Savant Elite2:
1
2
3
4

Advertisement

Table of Contents

See also: User Manual
QUICK START GUIDE
Kinesis
Savant Elite2
®
SmartSet Config App, Model FP10J
There is no software or special drivers to install — all you need is a USB port. The Savant Elite2
works with Windows, Mac, Android, and Linux. SmartSet Config App versions are onboard for
graphical programming in Windows & OSX. Visit the SE2 Resources page for full User's Manual
including how to program in Android and Linux: www.kinesis.com/savant-elite2-resources/.
LANGUAGE NOTE: You must use U.S. English keyboard driver when re-programming your device,
then switch back to your normal language.

DEFAULT CONFIGURATION

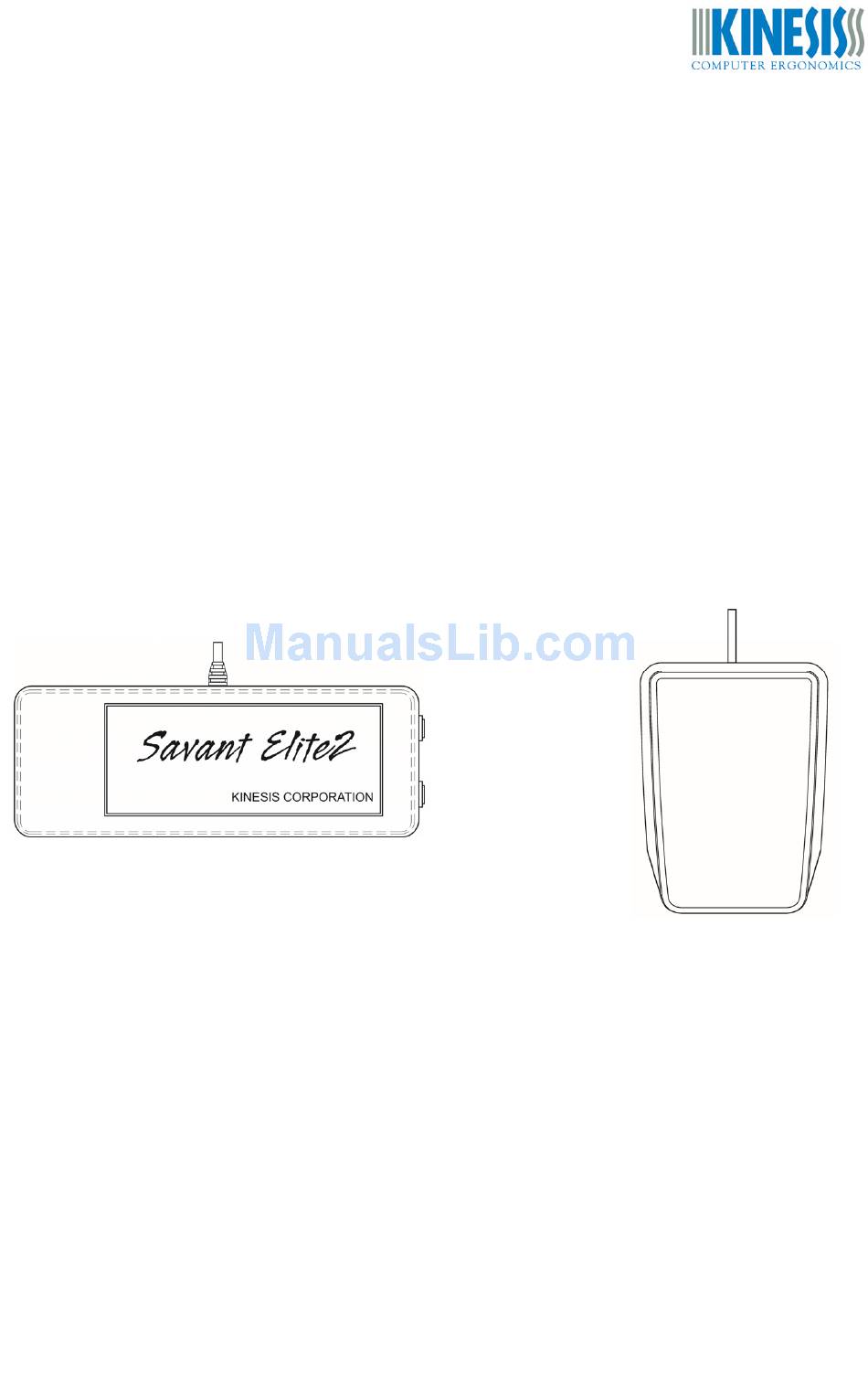

Your Savant Elite2 Module & Pedal comes with your choice of two factory-programmed actions:
Control Module
To use your Savant Elite2 Module & Pedal with one of the factory-programmed actions:
1. Connect the pedal to Control Module using the jack of your choice.
2. Plug the Module's USB cable into your computer.
3. The red LED on the Module will illuminate and a device installation notice will appear.
4. When the green LED illuminates, the device is ready to use with that pre-programmed action.
5. To switch actions, simply connect the pedal to the other jack.
© 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are
trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
™
22030 20th Avenue SE, Suite 102, Bothell, Washington 98021 USA
sales@kinesis.com, 800-454-6374, www.kinesis.com
Module & Pedal with
Jack 1
Left Mouse Button
Single Click
Jack 2
Right Mouse Button
Single Click
Foot Pedal
Pedal
with
mini-phono
plug

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Savant Elite2 and is the answer not in the manual?

Questions and answers

Related Manuals for Kinesis Savant Elite2

Summary of Contents for Kinesis Savant Elite2

  • Page 1: Quick Start Guide

    800-454-6374, www.kinesis.com © 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.

  • Page 2: Tips And Troubleshooting

    To program a custom action, simply use the on-board SmartSet application. The SmartSet app is preloaded onto each Savant Elite2 device (both Windows and Mac versions). The app resides on a virtual drive (v-drive™) named “KINESIS FP” which is only accessible from your computer when the device is placed into Program Mode.
  • Page 3 8. If you are satisfied with your new custom action(s) click SAVE, and then click EXIT PROGRAM. 9. Put the device back into Play Mode by sliding the switch. For waterproof models, RE-PLUG THE USB. 10. Your Savant Elite2 device is now ready to use with your custom programmed actions!
  • Page 4 EXIT PROGRAM. 10. Put the device back into Play Mode by sliding the switch. For waterproof models, RE-PLUG THE USB. 11. Your Savant Elite2 device is now ready to use with your custom programmed actions! Version March 3, 2016...
