Kinesis Savant Elite2 User Manual

Programmable usb foot pedal family with smartset technology
Hide thumbs Also See for Savant Elite2:
Table of Contents

Advertisement

Quick Links

Download this manual
Savant Elite2
Programmable USB Foot Pedal Family
with SmartSet Technology
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Savant Elite2 and is the answer not in the manual?

Questions and answers

Related Manuals for Kinesis Savant Elite2

Summary of Contents for Kinesis Savant Elite2

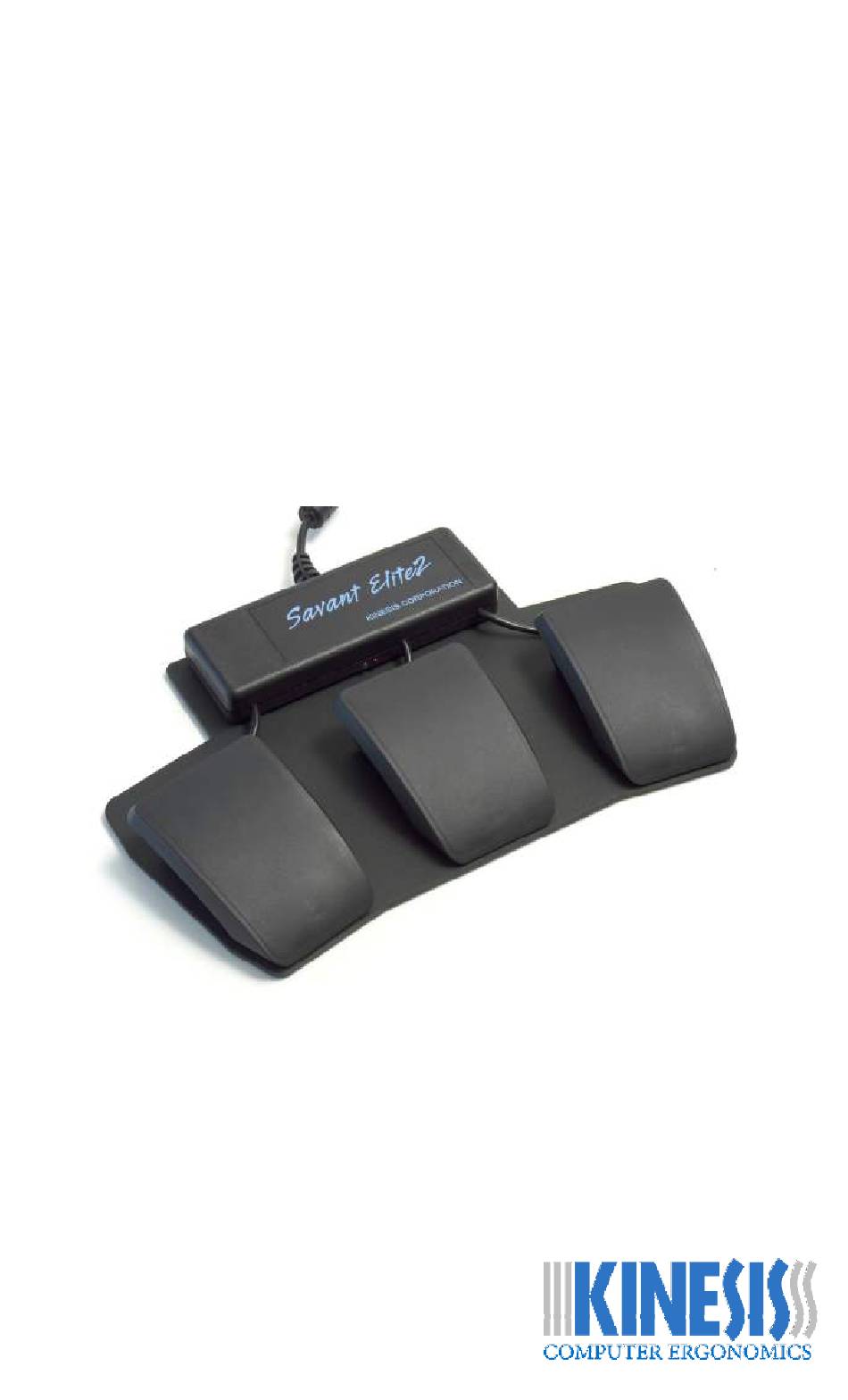

  • Page 1 Savant Elite2 Programmable USB Foot Pedal Family with SmartSet Technology User’s Manual...
  • Page 2 (this page inten onally le blank)
  • Page 3 March 2016 Edi on © 2016 by Kinesis Corpora on. All rights reserved. www.kinesis.com. KINESIS is a registered trademark of Kinesis Corpora on. SAVANT ELITE2, SE2, SMARTSET and SMARTSET APP are trademarks of Kinesis Corpora on. WINDOWS is a registered trademark of Microso Corpora on.
  • Page 4 En 55022, En 55024, EN 61000-3-2/3, and EN 60601-1-2. MEDICAL PRODUCT SAFETY FEDERAL COMMUNICATIONS COMMISSION Savant Elite2 products are recognized RADIO FREQUENCY INTERFERENCE STATEMENT components, conforming to UL standard 60601- This equipment has been tested and found to 1; Cer Þed to CSA standard C22.2 NO. 601.1.

  • Page 5: Table Of Contents

    • ngling of an extremity), consult your health care professional. Kinesis Corpora on bases its product designs on research, proven features, and user evalua ons. However, because of the complex set of factors believed to contribute to computer-related injuries, the company can make no warranty that any of its products will prevent or cure any physical ailment.

  • Page 6: Overview, Features & Usage Compa Bility

    FP30: Le pedal = le mouse click, middle pedal = le mouse bu on double click, right Common features of the Savant Elite2 pedal = right mouse click. family of devices (all models) Pedals are front hinged, low-proÞle, •...

  • Page 7: Installa On

    Play Mode may also make it repeat. See the Be sure your Savant Elite2 device is in “Play Programming Guide on P14 for more Mode” before connec ng it for the Þrst details. Simple applica ons are also me to any USB port.
  • Page 8 “Auto-play” popup (Windows 7) or the “My found in the SE2 Smart app help Þle which Computer” screen (Windows 8 & 10). Mac can be found on the KINESIS FP v-drive or users will see a “Removable Volume” disk at www.kinesis.com/savant-elite2- icon appear on the desktop.

  • Page 9: Health & Safety Ps

    The preferred method of programming a by rese ng the pedals.txt Þle. This should Savant Elite2 device is via the SmartSet App also allow the v-drive to be reforma ed if if you are using Windows or Mac OSX. The the pedals.txt Þle becomes corrupted.

  • Page 10: Adjus Ng Pedal Force

    A foot pedal is not a medical treatment A Savant Elite2 foot pedal is not a medical elements. For pedals mounted on a base, treatment nor is it a subs tute for the two Phillips moun ng screws must be appropriate medical treatment.

  • Page 11: Technical Support

    Steady Red– Device is not ready and requires a en on • Programming errors If your Savant Elite2 device becomes unresponsive, it is possible errors have occurred in the pedals.txt conÞgura on Þle, or a pedal was depressed when the v-drive was opening or closing.

  • Page 12: Kinesis Limited Warranty

    Þre danger) and may invalidate your warranty. Packaging and Shipping If you need to ship a product back to Kinesis, use its original packaging or other suitable packaging that protects the device against impact and shock. Be sure to contact Kinesis Technical Support for an RMA number and shipping address.
  • Page 13 Disclaimer of other warran es The warranty and remedies set forth above are exclusive and in lieu of all others, whether oral or wri en, express or implied. Kinesis speciÞcally disclaims any and all implied warran es, including, without limita on, warran es of merchantability and Þtness for a par cular purpose.

  • Page 14: Direct Programming Guide

    For instruc ons on using the SmartSet App, read the SE2 SmartSet Help Þle which is stored on the Kinesis FP v-drive on your SE2 device. The help Þle can be also be downloaded at www.kinesis.com/savant- elite2-resources/.
  • Page 15 SE2 device. Programming in Linux, Android, Chrome The appearance of the KINESIS FP v-drive will vary by device and opera ng system. In Android look in computer se ngs. In Chrome look in “Þles.” In Linux look in “my computer.”...
  • Page 16 125ms (millisecond) delay so it includes {d125} between the two ac ons of the macro. Note: Pedals.txt illustrates all seven poten al inputs but your Savant Elite2 device will only have a subset of these pedals and jacks (see page 6).
  • Page 17 Example 1: The le pedal will perform the le er “a”. [lpedal]>[a] Note: [lpedal]>[A] and [LPEDAL]>[a] both produce the same lower case “a” output. Example 2: The middle pedal will perform the “shi ” ac on. [mpedal]>[shi ] Note: A er the pedal has been programmed, the lower case ac on of le er keys will always be produced unless the keyboard's Caps lock is on when pedal is pressed.
  • Page 18 {lpedal}>{ctrl}{alt}{4}{ }{4}{ctrl}{alt} Macro playback Speed Your Savant Elite2 device supports nine different playback speeds. Macros will automa cally playback at the default speed which is “speed3”. Speed3 was chosen to provide op mal results for the widest array of macros but your custom macros may require a different speed to achieve the desired results.
  • Page 19 To insert a delay, use braces around the delay me and a “d” in front of the chosen increment: “{d125}” or “{d500}”. A emp ng to insert a delay other than 125ms or 500ms will cause an error. Example 1. Middle pedal macro plays “a” then delays 500 ms, then plays “b”: {mpedal}>{a}{d500}{b} Example 2.
  • Page 20 [F5] [F6] [F7] [F8] [F9] [F10] [F11] [F12] Number row key tokens– To perform the shi ed ac on, hold the Shi key on keyboard while pressing the pedal. To make a pedal perform the shi ed ac on without holding Shi , use a macro combining Shi with the number row key (see “Sample Macros”...
  • Page 21 Forward slash (the shi ed ac on is ?) on the right side of the keyboard near the Shi key Backslash (the shi ed ac on is |, commonly known as pipes) Apostrophe (the shi ed ac on is quota on marks, ") Accent (the shi ed ac on is lde, ~) Semi colon (the shi ed ac on is colon :) Comma (the shi ed ac on is less than, <)
  • Page 22 ModiÞer Key tokens For most macros, it is not necessary to specify the le or right version of the modiÞer key (e.g., le Alt versus right Alt) in the pedals.txt Þle so you can use the generic form of the modiÞer key (i.e., “[alt]”). If your macro does require that you speciÞcally iden fy a le or right version of a modiÞer key, the appropriate syntax is listed below.
  • Page 23 Note: If the pedal is held down, macros do not repeat like a single key would. See “Different Press and Release” above for ps on making macros repeat. Default double le mouse bu on macro (middle pedal, “mpedal”) This le mouse bu on double-click macro is in the default pedals.txt Þle, assigned to the middle pedal.
