Kinesis SE2 Quick Start Manual

QUICK START GUIDE

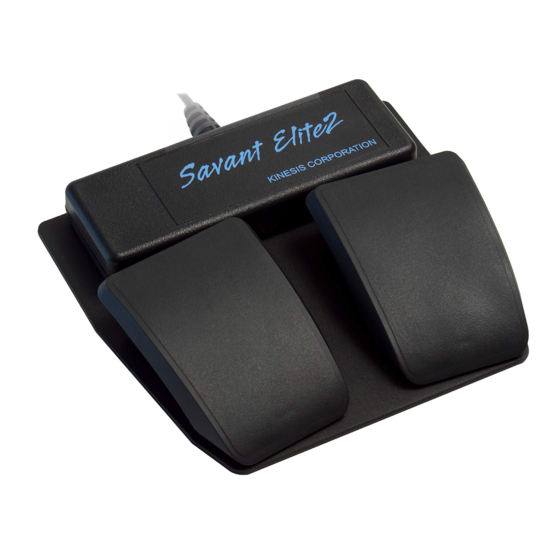

Kinesis Savant Elite2
®
Config App, Models FP20A, FP20AJ & FPW20A-IPX8
There is no software or special drivers to install — all you need is a USB port. The Savant Elite2
works with Windows, Mac, Android, and Linux. SmartSet Config App versions are onboard for
graphical programming in Windows & OSX. Visit the SE2 Resources page for full User's Manual
including how to program in Android and Linux: www.kinesis.com/savant-elite2-resources/.
LANGUAGE NOTE: You must use U.S. English keyboard driver when re-programming your device,
then switch back to your normal language.

DEFAULT CONFIGURATION

Your Savant Elite2 Dual Pedal comes with two or three factory-programmed actions:
To use your Savant Elite2 Dual Pedal with the factory-programmed actions:
1. Plug the USB cable into your computer.
2. The red LED will illuminate and a device installation notice will appear.
3. When the green LED illuminates, the device is ready to use with the pre-programmed actions.
4. To access Jack 1 on FP20AJ models, connect a Kinesis stand-alone foot pedal or hand trigger
(sold separately)
© 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are
trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
™
22030 20th Avenue SE, Suite 102, Bothell, Washington 98021 USA
sales@kinesis.com, 800-454-6374, www.kinesis.com

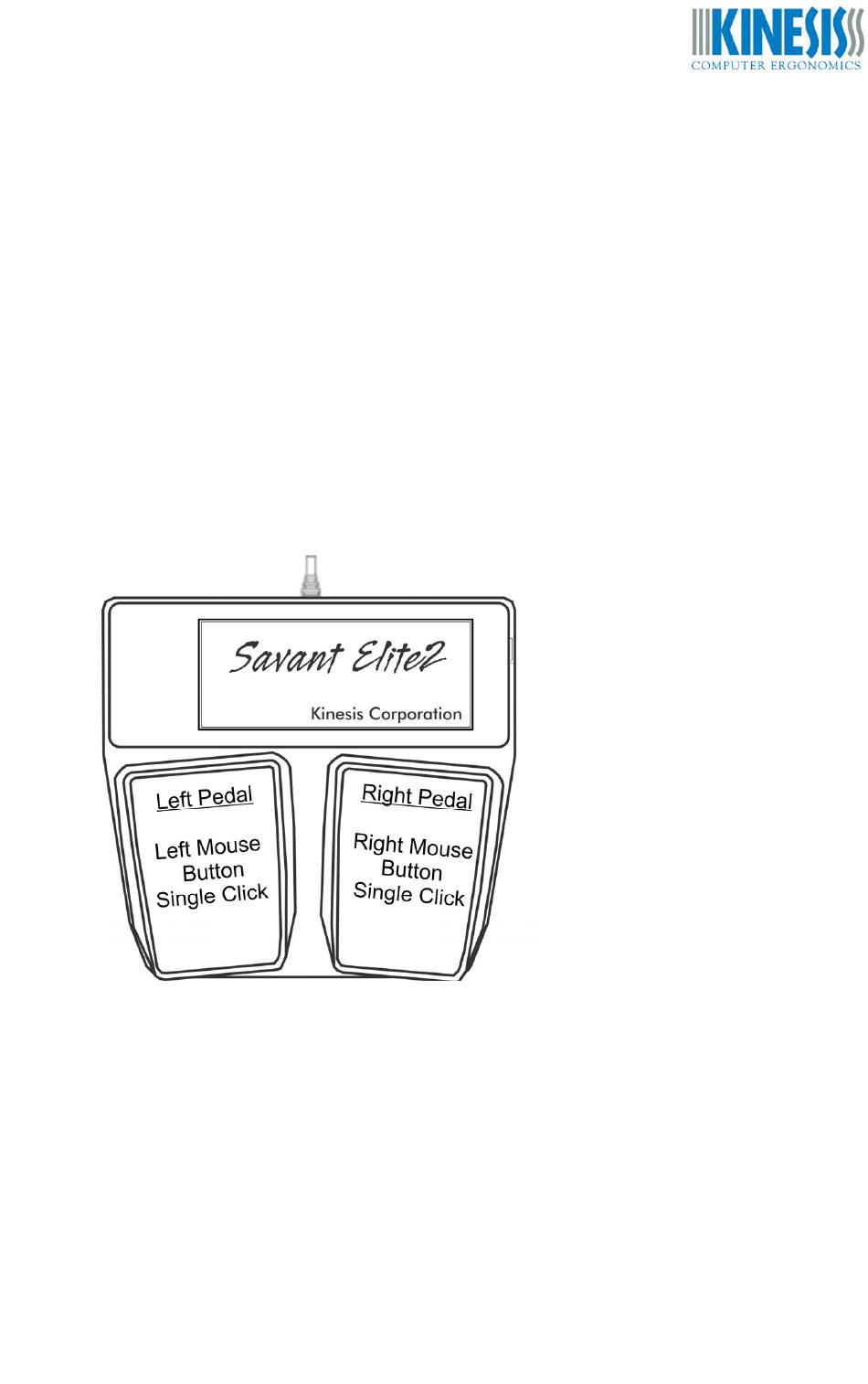

Dual Pedal & SmartSet
Jack 1 (FP20AJ Models Only)
Left Mouse Button Single Click
