QUICK START GUIDE
Kinesis
Savant Elite2
®
SmartSet Config App, Models FPMJ2 & FPMJ4
There is no software or special drivers to install — all you need is a USB port. The Savant Elite2
works with Windows, Mac, Android, and Linux. SmartSet Config App versions are onboard for
graphical programming in Windows & OSX. Visit the SE2 Resources page for full User's Manual
including how to program in Android and Linux: www.kinesis.com/savant-elite2-resources/.
LANGUAGE NOTE: You must use U.S. English keyboard driver when re-programming your device,
then switch back to your normal language.
DEFAULT CONFIGURATION

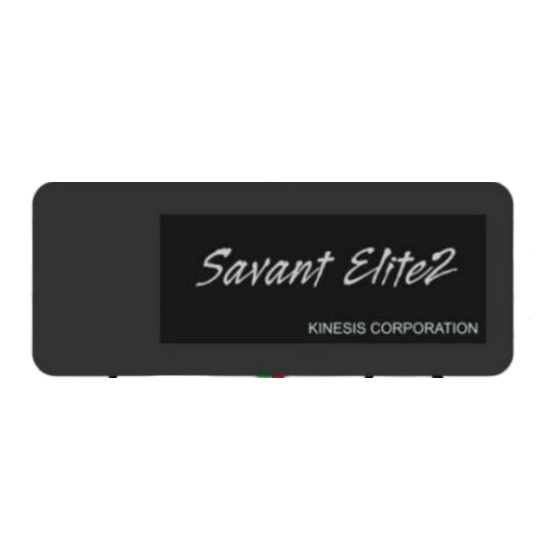

Your Savant Elite2 Control Module comes with either two or four factory-programmed actions:
To use your Savant Elite2 Control Module with the factory-programmed actions:
1. Connect your Kinesis foot pedal(s) or hand trigger(s) to the jack(s) of your choice.
2. Plug the Control Module's USB cable into your computer.
3. The red LED on the Module will illuminate and a device installation notice will appear.
4. When the green LED illuminates, the device is ready to use with the pre-programmed actions.
5. To switch actions, simply move the pedal/hand trigger to a different jack.
© 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are
trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
™
22030 20th Avenue SE, Suite 102, Bothell, Washington 98021 USA
sales@kinesis.com, 800-454-6374, www.kinesis.com
Control Module with
Jack ac ons:
Jack 1: Le mouse bu on
Jack 2: Right mouse bu on
Jack ac ons:
Jack 1: Le mouse bu on
Jack 2: Right mouse bu on
Jack 3: backspace key ac on
Jack 4: sample macro "Thank you,"
Advertisement
Table of Contents
Related Manuals for Kinesis FPMJ2
Summary of Contents for Kinesis FPMJ2
- Page 1 800-454-6374, www.kinesis.com © 2016 by Kinesis Corporation, all rights reserved. Printed in the USA on recycled paper. KINESIS is a registered trademark of Kinesis Corporation. SAVANT ELITE2, V-DRIVE, SE2, and SMARTSET are trademarks of Kinesis Corporation. WINDOWS, MAC, and ANDROID are registered trademarks of Microsoft Corporation, Apple, Inc., and Google, Inc., respectively.
- Page 2 TIPS AND TROUBLESHOOTING The KINESIS FP v-drive is only accessible when the device is placed into Program Mode. The appearance and location of the v-drive will vary by computer and operating system. If you have trouble locating the v- drive on your computer please refer to the User’s Manual for suggestions (link below).
- Page 3 WHILE PLUGGING IN THE USB. The red LED will illuminate briefly. 2. Once the LED changes to flashing green, OPEN the “KINESIS FP” drive. If you do not see an AutoPlay popup, look in “My Computer” for “KINESIS FP”. 3. Once inside the KINESIS FP drive, double-click the “SE2 SmartSet App (Win)”...
- Page 4 SKIP the setup. 3. Once the LED changes to flashing green, OPEN the “KINESIS FP” drive. If you do not see the icon on the desk- top, look in Finder > Devices for “KINESIS FP”. 4. Once inside the Kinesis FP drive, double-click the “SE2 SmartSet App (Mac)”...
